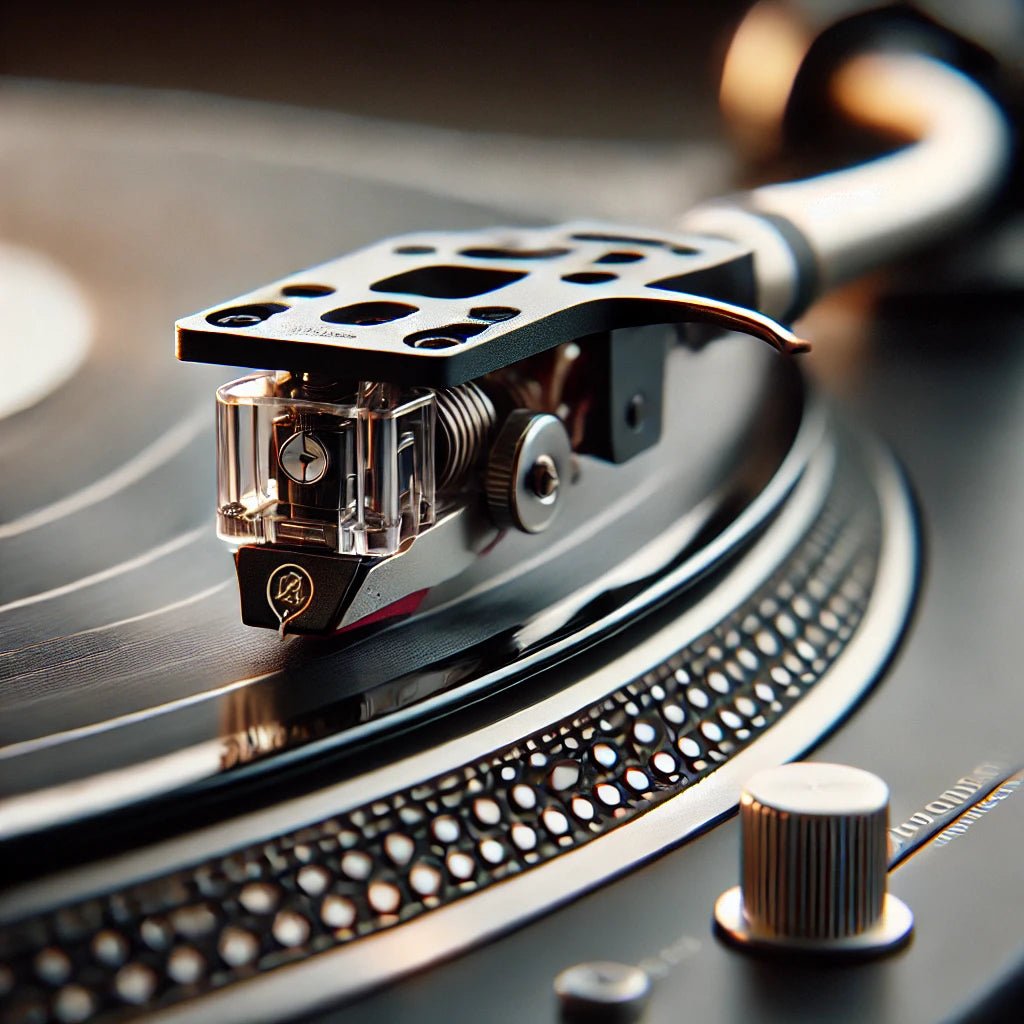

How A Cartridge And Stylus Work

How A Cartridge And Stylus Work

The cartridge and stylus are critical components in analog turntables, responsible for converting the physical grooves on a vinyl record into an electrical signal that can then be amplified and played through speakers. Here's an in-depth look at how each part works and their role in sound reproduction.

1. Overview of the Cartridge and Stylus System

  • Stylus (Needle): The stylus, or needle, is the pointed tip that contacts the record grooves and traces their undulations. It is typically made of a very hard material, often diamond, to withstand the wear and tear of contact with vinyl.

  • Cantilever: The stylus is attached to a thin rod known as the cantilever. This is the bridge that transfers the stylus's movements (vibrations) as it tracks the grooves to the cartridge's inner mechanism.

  • Cartridge: The cartridge houses the mechanism that converts the mechanical movements (vibrations) from the stylus and cantilever into an electrical signal. It contains the generator assembly, which is responsible for this signal conversion and can be classified into two main types: moving magnet (MM) and moving coil (MC) cartridges.

Each part's interaction allows the physical undulations of a vinyl record to be transformed into an audible sound signal.

2. Stylus: Tracking the Record Grooves

The stylus is designed to accurately track the micro-grooves of a vinyl record. These grooves have undulations that represent the recorded sound in the form of amplitude and frequency variations.

How the Stylus Works

  • The stylus sits in the groove and moves back and forth in response to the groove's modulation. The groove is actually two grooves in one, as it contains left and right channels corresponding to stereo sound. The undulations in each groove wall differ slightly to capture left and right audio signals.

  • As the record spins, the stylus vibrates in response to these undulations. This vibration is a physical representation of the sound wave patterns recorded on the vinyl. It’s essential that the stylus be precisely cut and aligned to ensure that it accurately reproduces the sound without adding distortion or damaging the record.

Stylus Shape and Quality

The shape of the stylus (e.g., spherical, elliptical, or microline) impacts how accurately it can track the grooves. Advanced shapes, like the microline or shibata, make more contact with the groove, which can lead to better sound fidelity and longevity of the vinyl, although they are more expensive and sensitive to wear.

3. Cantilever: Transmitting the Vibrations

The cantilever is a crucial intermediary between the stylus and the cartridge’s internal generator.

Function of the Cantilever

  • Vibration Transfer: As the stylus traces the grooves and vibrates, these movements are transmitted through the cantilever. The material and construction of the cantilever impact how accurately it transmits these vibrations without adding its own resonances or damping the vibrations.

  • Materials: Cantilevers are typically made from materials like aluminum, boron, or even sapphire. Each material affects the quality of sound reproduction. For example, boron is a popular choice for high-fidelity cartridges due to its stiffness and low mass, which allows for minimal damping and greater accuracy.

4. Cartridge: Converting Vibrations to Electrical Signals

The cartridge is the component that transforms the mechanical energy (vibrations) from the stylus and cantilever into an electrical signal that can be amplified and played back as sound. The type of cartridge affects this process and can significantly impact the quality of sound reproduction.

Types of Cartridges

  • Moving Magnet (MM) Cartridge: In MM cartridges, the magnet is attached to the cantilever, and it moves within a coil of wire as the stylus tracks the grooves. The movement of the magnet within the coil generates an electrical signal that is proportional to the vibrations picked up by the stylus.

    • Advantages: MM cartridges are generally more affordable, have replaceable styli, and are compatible with a wide range of preamps.
    • Disadvantages: MM cartridges can be heavier due to the magnet’s mass, potentially limiting tracking ability and sound fidelity compared to moving coil designs.
  • Moving Coil (MC) Cartridge: In MC cartridges, the coil is attached to the cantilever, and it moves within the field of a fixed magnet. The movement of the coil within the magnetic field generates the electrical signal.

    • Advantages: MC cartridges typically offer greater sound detail, clarity, and a more refined high-frequency response due to the lower mass of the moving coil compared to the MM magnet.
    • Disadvantages: MC cartridges are generally more expensive, their styli are not usually replaceable, and they require specialized preamps due to their lower output.

5. Electrical Signal Creation and Transmission

The interaction of the stylus, cantilever, and cartridge results in a small electrical signal that mirrors the stylus's mechanical movements. This signal is very low in strength and requires amplification to become audible.

  • Phono Preamp Requirement: Phono preamps apply both gain and equalization to the weak signal generated by the cartridge. This equalization, known as RIAA equalization, compensates for the physical limitations of vinyl, enhancing bass frequencies and reducing high frequencies to provide a balanced sound.

  • Amplification: Once the phono preamp amplifies and equalizes the signal, it can be sent to an amplifier and then to speakers, completing the sound reproduction process.

6. Conclusion: Synergy Between Components

In summary, the stylus, cantilever, and cartridge each play a distinct role in converting physical groove information into electrical signals. The stylus extracts the detailed information from the record’s grooves, the cantilever transfers it with minimal loss or distortion, and the cartridge converts it into a form that can be amplified and heard.
