Sealed vs Poerted Subwoofer

1. Basic Design Differences

Feature	Sealed Subwoofer	Ported Subwoofer
Enclosure Type	Airtight box — the driver (speaker cone) is fully enclosed, with no openings.	Includes one or more ports (vents) that allow air to move in and out of the cabinet.
Air Pressure Control	The trapped air inside acts as a spring that resists cone movement, creating tight control over driver motion.	The port is tuned to a specific frequency (the “tuning frequency”) that reinforces low bass through resonance.
Internal Volume	Usually smaller due to the lack of ports.	Larger, because the port needs air volume to function properly.

Ported Subwoofer:
- Produces higher output (louder bass) at low frequencies due to port tuning.
- The port helps move more air efficiently, making it better for deep rumbling effects in home cinema (e.g., explosions, thunder, engine roars).
- Extends deeper into the 20–30 Hz range with less amplifier power.
Sealed Subwoofer:
- Rolls off more gradually at low frequencies (typically -12 dB/octave), which means it has less extreme low-end power but a smoother transition.
- Needs more amplifier power to reach the same SPL (sound pressure level) as a ported design.
- More accurate but not as earth-shaking.

Winner for raw output: Ported.
Winner for smooth extension: Sealed.

Sealed:
- The air pressure inside the sealed box naturally damps the driver movement, providing faster response and tight, precise bass.
- Excellent for music and for maintaining clarity in fast action sequences.
- Less “boomy” and more “punchy.”
Ported:
- The resonance from the port can cause slower transient response (a slight “lag” or “ringing” effect).
- Bass can feel looser or boomier, especially with poorly tuned or cheap designs.
- Not as clean for rapid bass notes or intricate musical detail.

Winner for tightness and accuracy: Sealed.

Ported:
- Much more efficient — can produce higher volume with the same amplifier power.
- At the tuned frequency, the port shares much of the acoustic load, reducing cone excursion (movement) and distortion.
- However, below the tuning frequency, the driver becomes unloaded — meaning it moves excessively and can distort or even be damaged.
Sealed:
- Less efficient — needs more amp power for high SPL.
- But it handles frequencies below its natural roll-off better (no sudden drop or dangerous over-excursion).
- More consistent and predictable performance across frequencies.

Winner for efficiency: Ported.
Winner for low-frequency safety and control: Sealed.

Sealed:
- Lower group delay (time lag between signal input and sound output), leading to more accurate timing.
- This means the bass integrates more naturally with midrange speakers — critical for coherent sound imaging.
Ported:
- Higher group delay near tuning frequency.
- Can sound “out of sync” with the rest of the system if not carefully calibrated.

Winner for time alignment and integration: Sealed.

Aspect	Sealed Subwoofer	Ported Subwoofer
Cabinet Size	Smaller and more compact.	Larger and bulkier due to port volume.
Placement Flexibility	Easier to position; performs well in small or medium rooms.	Needs more breathing space — works better in medium to large rooms.
Room Gain Interaction	Room acoustics can help extend the low-end naturally.	Can interact strongly with room modes, sometimes causing boomy bass if not equalized.

Winner for small rooms and flexible placement: Sealed.
Winner for large home theaters: Ported.

Attribute	Sealed	Ported
Sound Feel	Tight, controlled, precise, articulate.	Powerful, deep, cinematic, visceral.
Best For	Balanced listening (music + movies), clarity, detail.	Explosive movie effects, large rooms, high-impact bass.
Typical Sound Signature	“Punch”	“Boom” or “Rumble”

Factor	Sealed	Ported
Amplifier Demand	High — needs more watts for same SPL.	Lower — more output per watt.
Size Aesthetic	Compact, easy to hide.	Big, often requires more floor space.
Maintenance	Simple; airtight box.	Port can collect dust, and chuffing noise may occur if poorly designed.
Tuning Flexibility	Fixed natural roll-off.	Can be tuned (via port length or plugging). Some models allow hybrid use (e.g., plug port for sealed mode).

Usage Scenario	Recommended Type	Reason
Small or medium-sized room	Sealed	Better control, compact, and integrates well with room gain.
Large dedicated theater room	Ported	Delivers deep, powerful low-end for cinematic realism.
Mostly movies and gaming	Ported	More “theater-like” low-frequency effects.
Mostly music or mixed use	Sealed	Cleaner, tighter bass response.
Apartment or shared wall environment	Sealed	Less boom and low-frequency bleed.
Want highest SPL and earth-shaking effects	Ported	Greater efficiency and deeper extension.

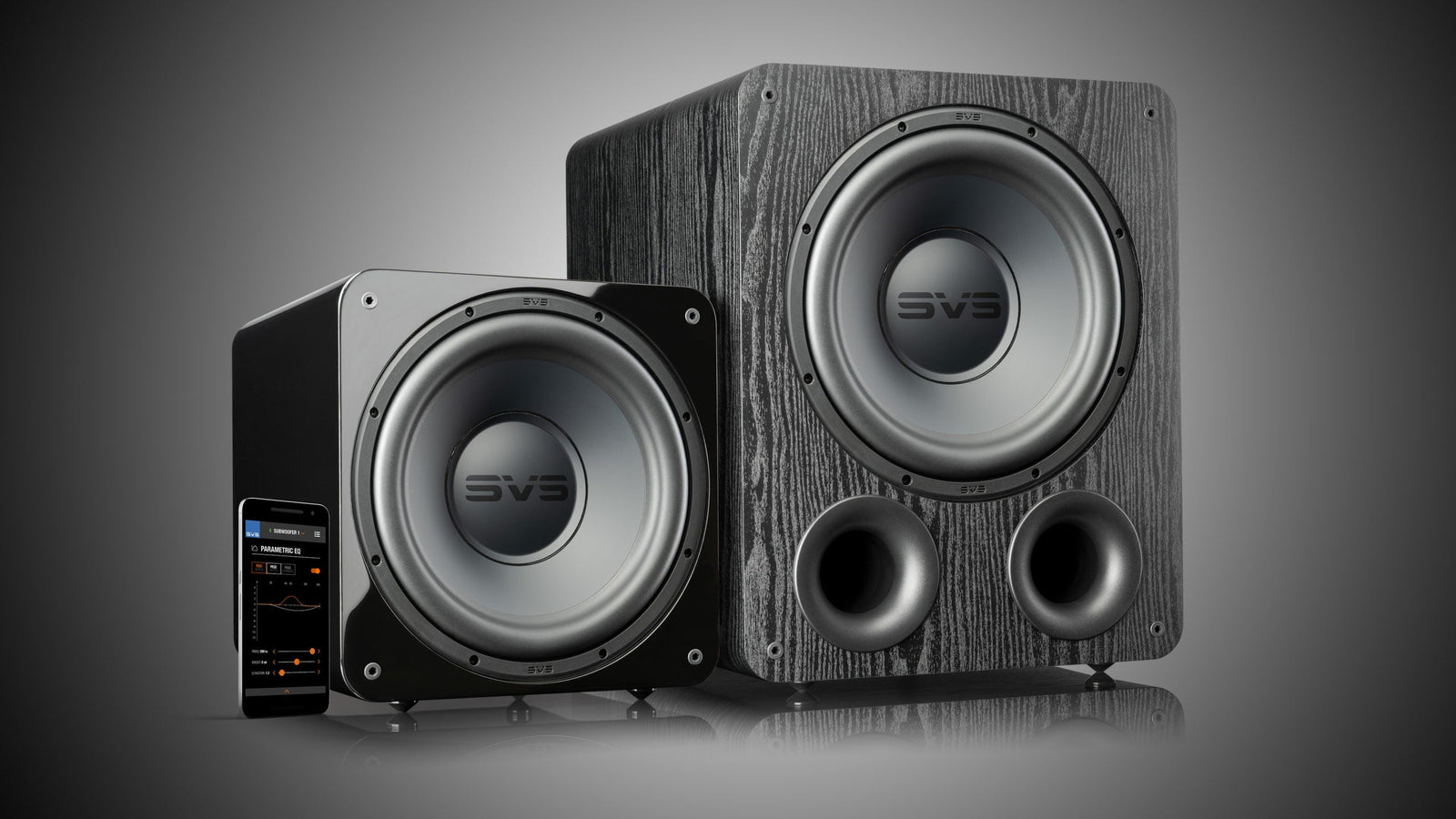

Sealed Example: SVS SB-2000 Pro
- Compact, sealed 12-inch sub with tight, musical response and controlled low-end. Excellent for music and balanced home theater.
Ported Example: SVS PB-2000 Pro
- Ported 12-inch version with deeper extension (down to ~16 Hz), much higher SPL output, and cinematic bass performance.

In real terms:

Aspect	Sealed Subwoofer	Ported Subwoofer
Bass Quality	Tight, accurate	Deep, powerful
Low-End Extension	Moderate	Excellent
Efficiency	Low	High
Transient Response	Fast	Slower
Size	Small	Large
Best For	Music / mixed use / small rooms	Movies / large rooms / maximum impact
