Audio Technica AT-ART20 Dual Moving Coil Stereo Cartridge

  • Superlative Analogue Sound ReproductionDelivers exceptional analogue sound reproduction, capturing the full expressiveness of the original...
  • Improved Magnetic CircuitFeatures a newly designed magnetic circuit that enhances the cartridge's efficiency, resulting...
  • High-Quality Terminal PinsEquipped with high-quality terminal pins boasting thick gold plating, approximately 30 times...
  • Advanced ConstructionConstructed using titanium, aluminium, and elastomer undercover to minimize undesirable resonance, preserving...
  • Special Line Contact StylusIncorporates a special line contact stylus and solid boron cantilever with a...
  • Cutting-Edge ManufacturingUtilizes advanced cutting and polishing technologies developed in the eyeglass industry of...

Buy online with confidence

79 years of hi-fi expertise · established 1947

Genuine UK stock with full manufacturer warranty, free next day delivery over £50 and 14-day returns. Need help? Our experts are on 0115 975 8613.

£2,749.99
Available to order – call 0115 975 8613 for the latest delivery date
FREE next day delivery · Saturday delivery available in the basket
Click & collect from our Nottingham showroom (NG7 4EX)
Manufacturer warranty
Genuine UK stock, full cover
14-day returns
Hassle-free if unused
Secure checkout
All major cards accepted
Hi-fi experts since 1947
Real advice, before and after you buy

Questions? Call our experts on 0115 975 8613 or send a message.

Audio Technica  |  SKU: 95765

Why you'll love the Audio Technica AT-ART20

The benefits that matter, at a glance.

Superlative Analogue Sound Reproduction

Delivers exceptional analogue sound reproduction, capturing the full expressiveness of the original recording for an immersive listening experience.

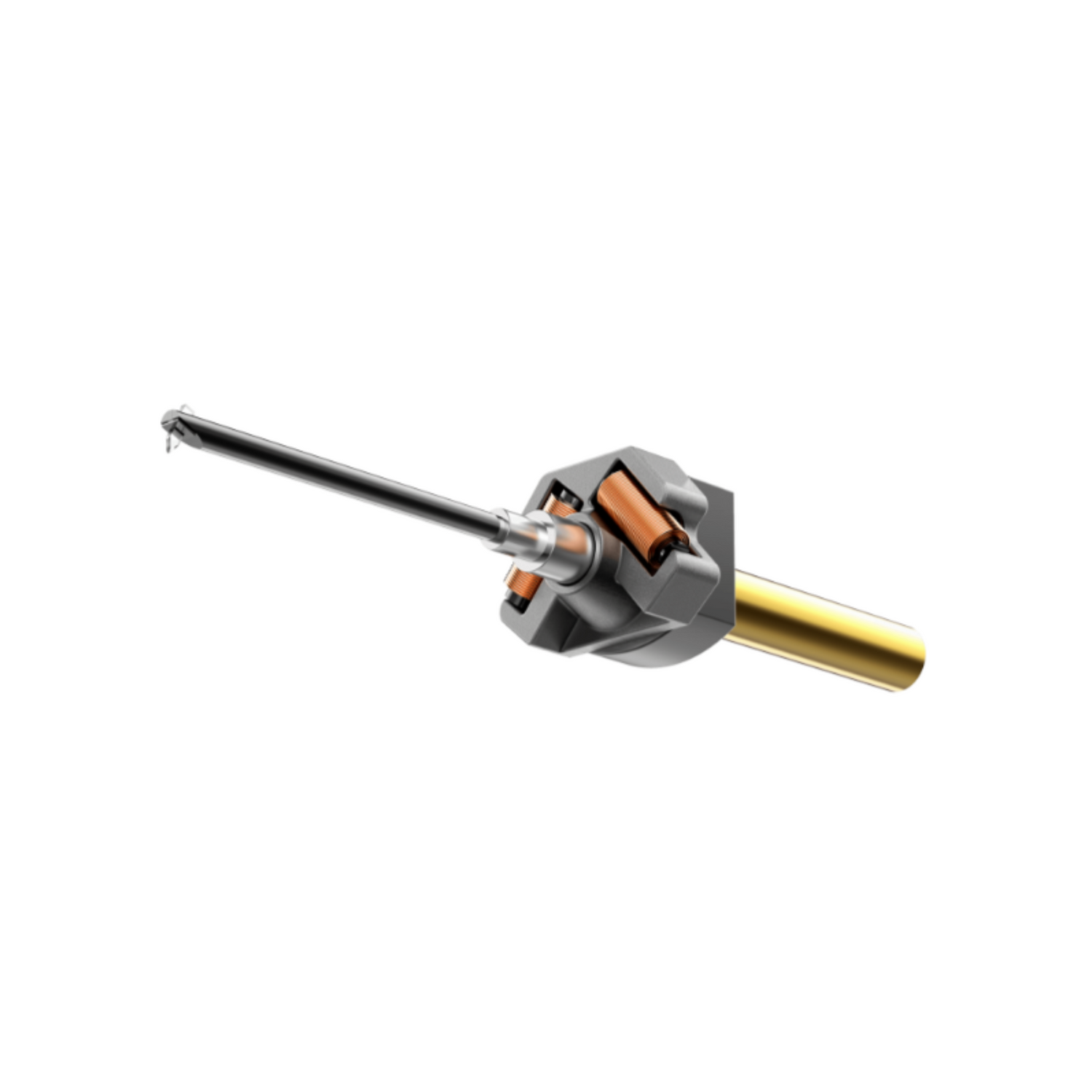

Improved Magnetic Circuit

Features a newly designed magnetic circuit that enhances the cartridge's efficiency, resulting in improved output voltage by more than 15% without increasing mass and impedance.

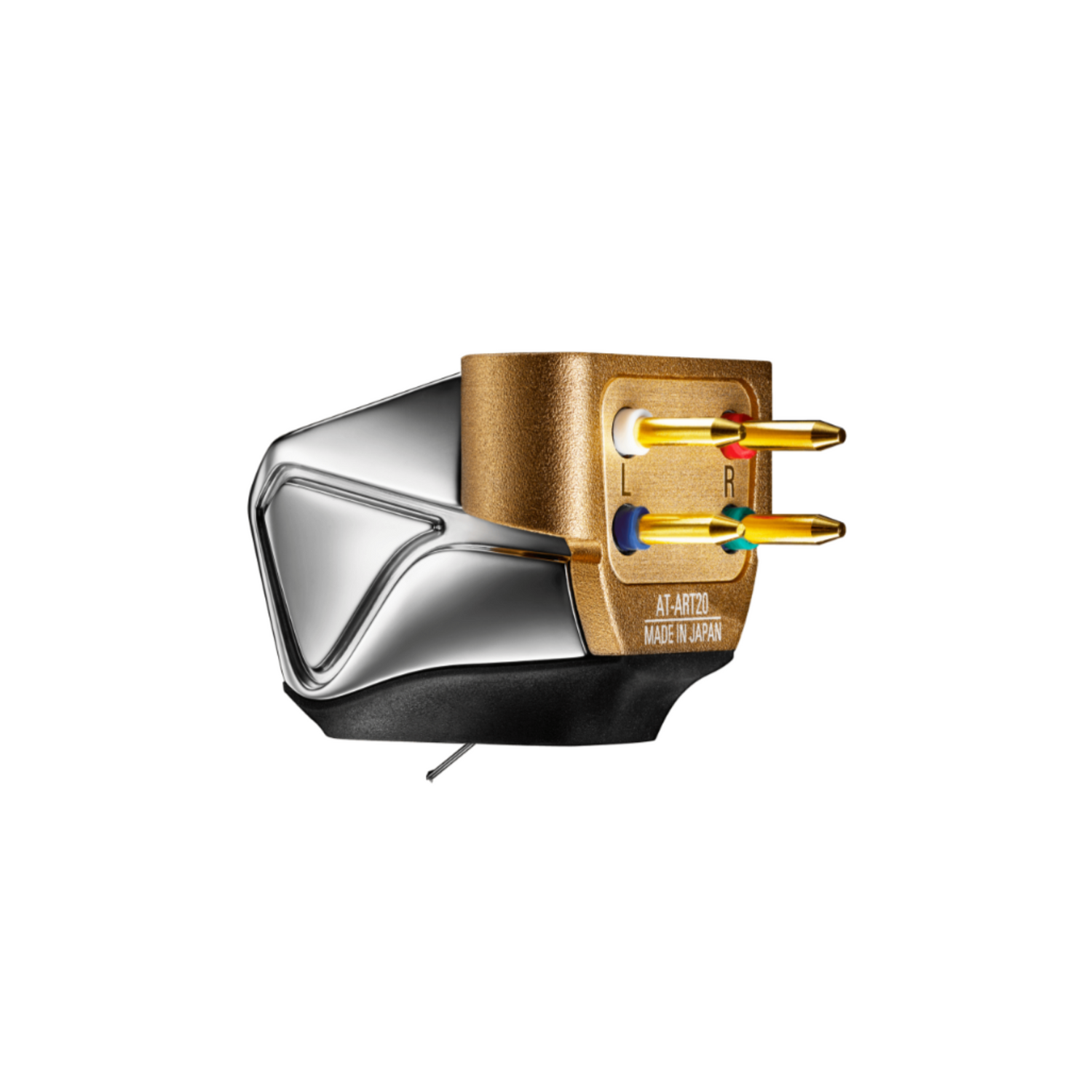

High-Quality Terminal Pins

Equipped with high-quality terminal pins boasting thick gold plating, approximately 30 times thicker than conventional products, to reduce contact resistance and ensure reliable signal transmission.

Advanced Construction

Constructed using titanium, aluminium, and elastomer undercover to minimize undesirable resonance, preserving the purity of the audio signal.

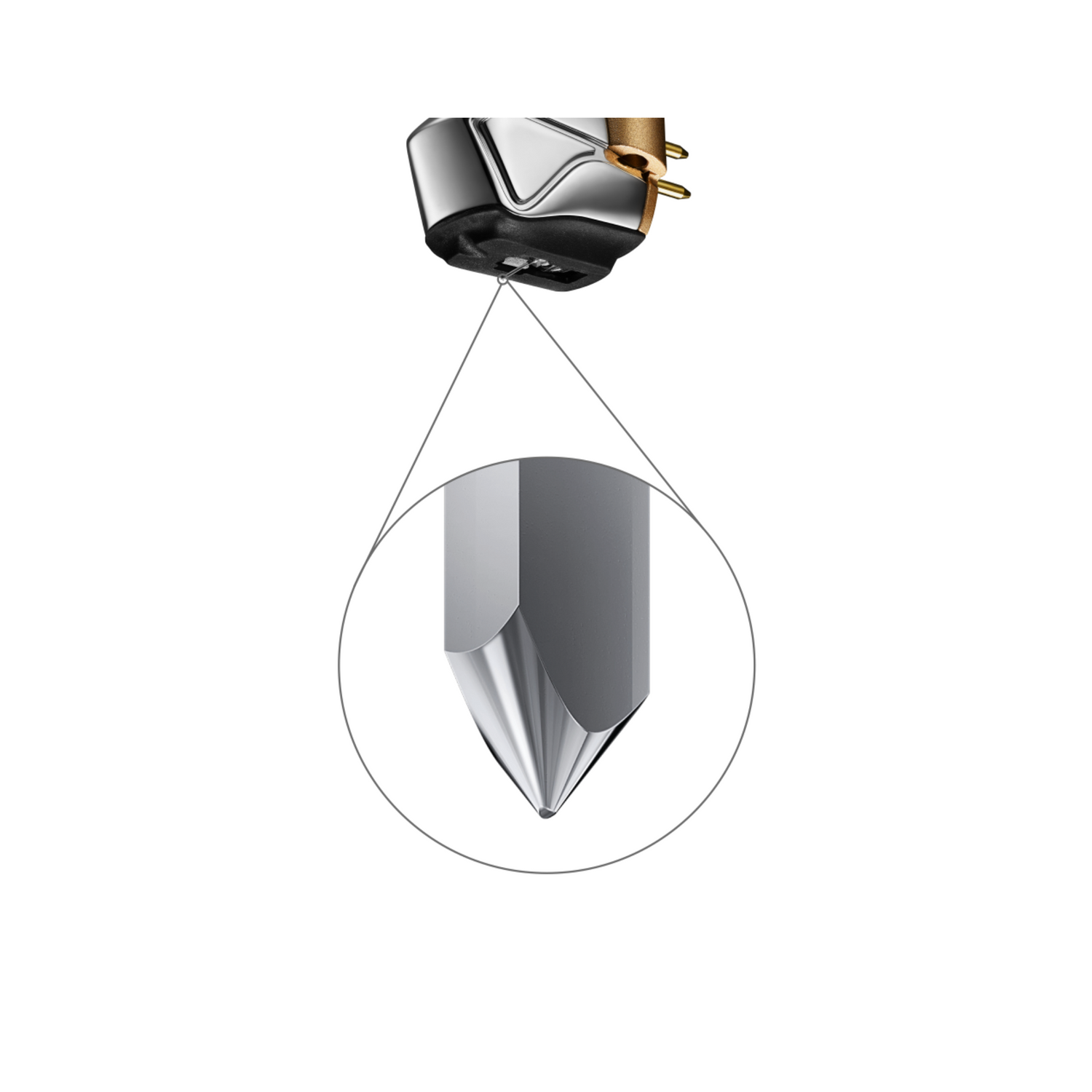

Special Line Contact Stylus

Incorporates a special line contact stylus and solid boron cantilever with a 0.28 mm diameter, providing premium high-frequency response and minimal inner-groove distortion for consistent reproduction.

Cutting-Edge Manufacturing

Utilizes advanced cutting and polishing technologies developed in the eyeglass industry of Sabae City, Fukui Prefecture, with a history spanning over 100 years, ensuring precision and quality.

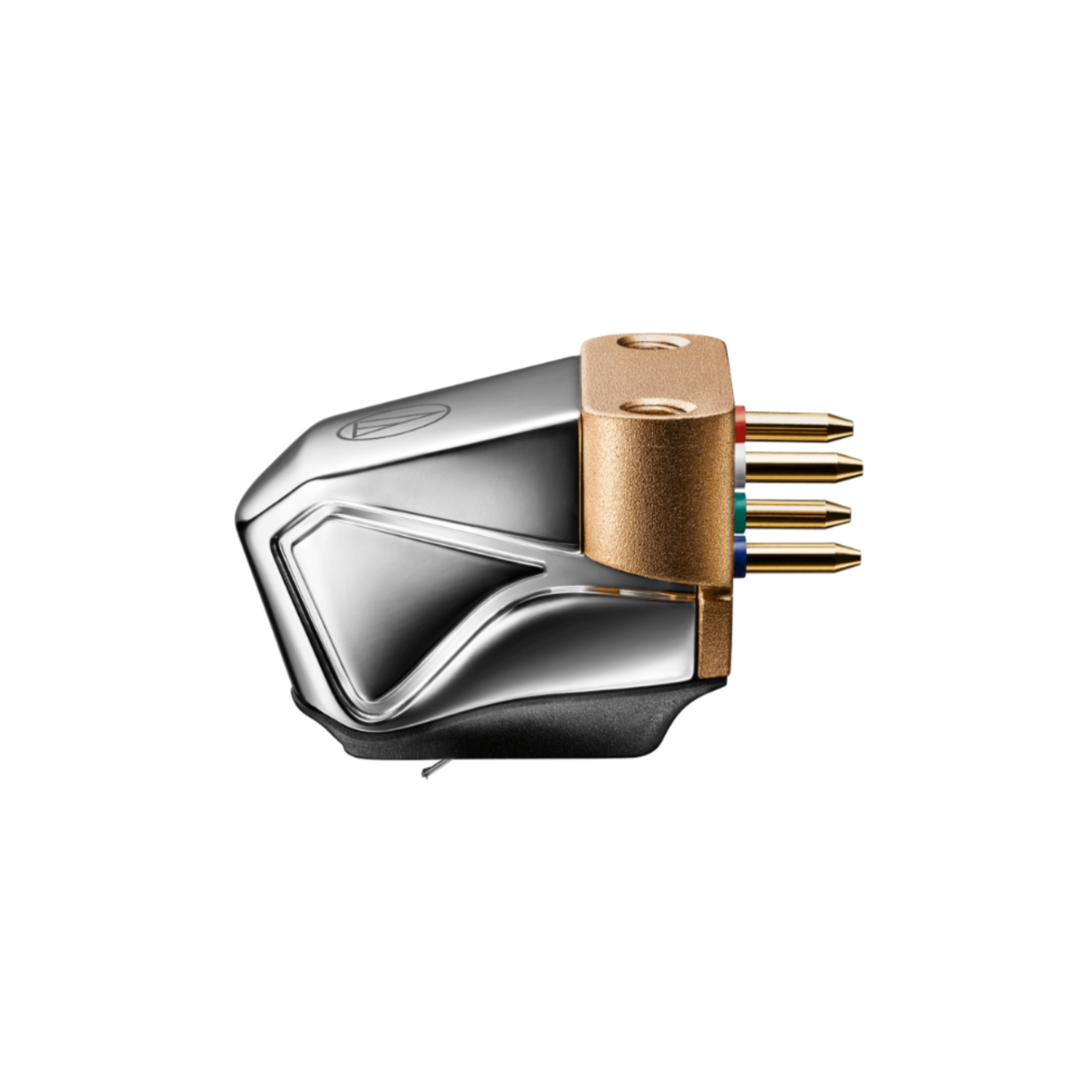

Threaded Cartridge Mounting Holes

Features threaded cartridge mounting holes for easy installation to a headshell or integrated tonearm, simplifying setup and adjustment.

Overview

Audio Technica AT-ART20 Dual Moving Coil Stereo Cartridge

Audio-Technica proudly presents the AT-ART20, the latest addition to our ART Series cartridges, offering a transformative audio experience. Our goal in developing the AT-ART20 was twofold: to deliver exceptional analogue sound reproduction and to maximise the performance potential of a magnetic core cartridge.

Drawing on our extensive expertise in cartridge technologies and materials, coupled with advanced processing techniques, we have crafted a magnetic core moving coil cartridge optimally engineered to faithfully reproduce the full depth and richness of original recordings.

Excellence Recognition

The AT-ART20 has earned the distinction of being designated an Audio-Technica Excellence Product, signifying its adherence to our highest standards of high-fidelity performance.

Exceptional Sound Quality

The AT-ART20 offers extended and detailed high-frequency response, capturing nuances with remarkable clarity. Conversely, it faithfully reproduces low-frequency sounds often obscured by lesser cartridges, delivering them with clarity and impact. Vocals are rendered with unparalleled variety and expressiveness, even at lower volumes, while the complete sonic spectrum unfolds for the listener. With extended sound depth and immersive spatial imaging, the original performance environment is vividly recreated.

Specifications

Cartridge & Stylus
Frequency Response20 to 50,000 Hz
Channel Separation30 dB (1 kHz)
Vertical Tracking Angle20°
Vertical Tracking Force1.6 to 2.0 g (1.8 g standard)
Stylus ConstructionNude
Recommended Load Impedance≥ 100 ohms (when head amplifier connected)
Coil Impedance12 ohms (1 kHz)
DC Resistance12 ohms
Coil Inductance25 μH (1 kHz)
Output Voltage0.55 mV (1 kHz, 5 cm/sec.)
Stylus ShapeSpecial Line Contact
Cantilever0.28 mm (0.011”) diameter solid boron
Static Compliance23 × 10-6 cm/dyne
Dynamic Compliance13 × 10-6 cm/dyne (100 Hz)
Cartridge Weight9.0 g (0.32 oz)
Dimensions17.3 mm (0.68”)×16.8 mm (0.66”)×26.6 mm (1.05”) (H×W×D)
Accessories IncludedNon-magnetic screwdriver, Brush, Washer × 2, Cartridge installation screws (M2.6) (5.0 mm (0.20”) × 2 , 8.0 mm (0.31”) × 2, 10.0 mm (0.39”) × 2 , 12.0 mm (0.47”) × 2), Protector
Threaded HoleM2.6 × 2
Stylus Curvature Radius1.5 × 0.28 mil
TypeMC

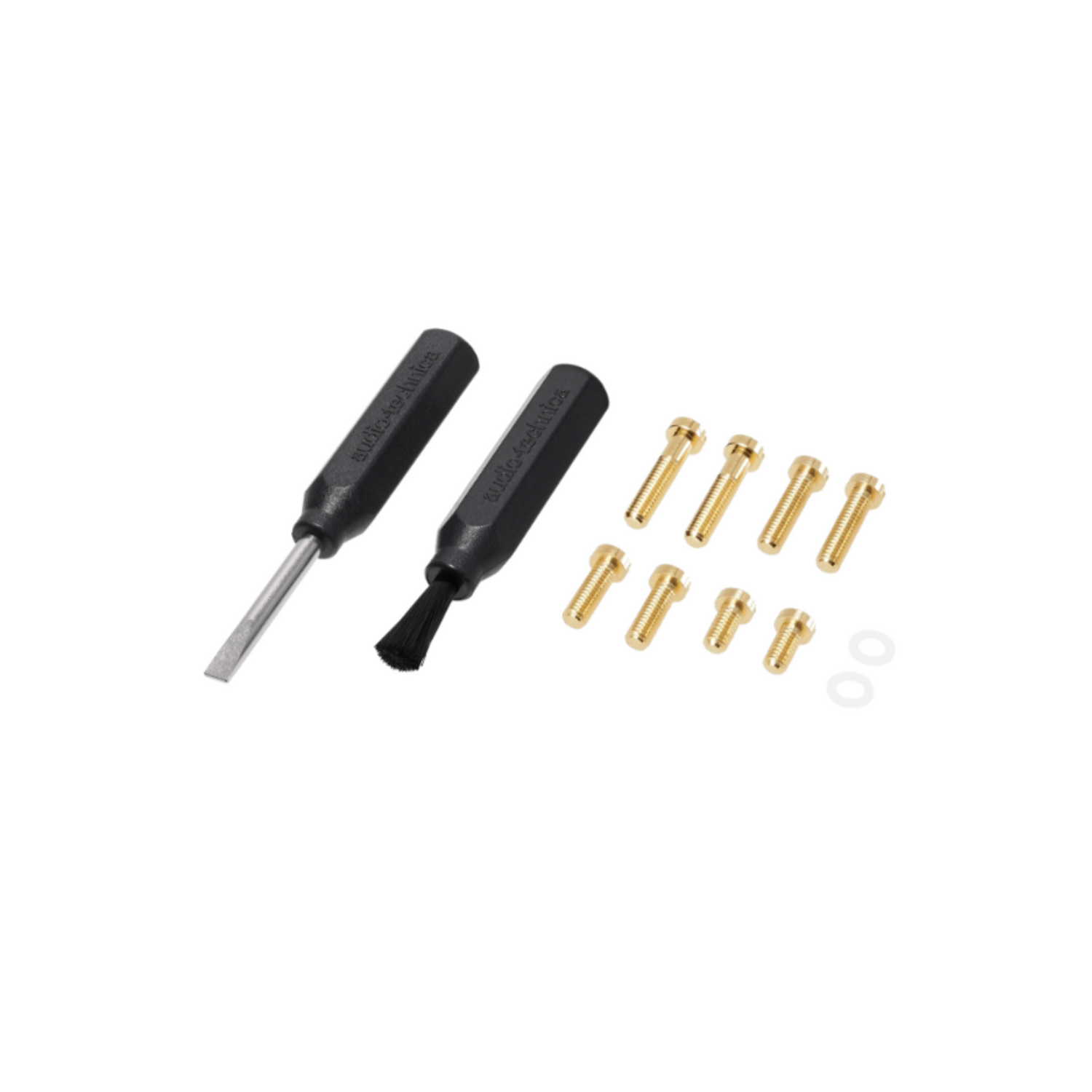

In the box

  • Audio Technica AT-ART20
  • Non-magnetic screwdriver
  • Brush
  • Washer × 2
  • Cartridge installation screws (M2.6) (5.0 mm (0.20”) × 2 , 8.0 mm (0.31”) × 2
  • 10.0 mm (0.39”) × 2
  • 12.0 mm (0.47”) × 2), Protector
