Audio Technica AT-VM95E Elliptical Stereo Cartridge

Audio Technica  |  SKU: 63478
Barcode: 4961310146016
£45.00

  • Free & Next-Day Delivery Available

    Superfast Next Day Delivery available. T&Cs

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days. T&Cs

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description


Audio Technica AT-VM95E Elliptical Stereo Cartridge

The AT-VM95E, the new entry model Elliptical cartridge from Audio-Technica, will replace the legendary AT95E and benefit from the advancements made with the AT95EX introduced in 2015. The AT-VM95E boasts an improved and distinctive design, resulting in a more rigid, low-resonance housing, and features two threaded inserts in the cartridge body, enabling it to be mounted to the headshell or an integral tonearm with just two screws, eliminating the need for nuts.

VM95 Series - Styli Compatibility Every cartridge's diamond stylus wears out after a period of play. Approximately 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.

The VM95 Series dual-moving magnet cartridges can be used almost indefinitely by replacing the interchangeable stylus. There's no longer a need to purchase a complete cartridge when your diamond is worn out; you can simply buy the matching replacement stylus and even upgrade your cartridge with a different stylus for a new experience.

All six models of VM95 Series cartridges use the same electromagnetic engine-body, making each of the six replacement styli perfectly compatible:

  • AT-VMN95C
  • AT-VMN95E
  • AT-VMN95EN
  • AT-VMN95ML
  • AT-VMN95SH
  • AT-VMN95SP

AT-VM9E Series Compatibility with the AT-XP Series DJ Cartridges The electromagnetic engine-body of the XP-Series is fully compatible with all replacement styli of the VM95 Series and delivers more output voltage than the VM95 Series cartridge, improving compatibility with phono inputs of Professional DJ Mixers.

The VM95 Series suspension design and compliances have been optimised for optimum audiophile reproduction, whereas the XP-Series styli's suspension design and compliance are tailored for intensive DJ'ing, including possible manual cueing and back-cueing.

  • ATN-XP7
  • ATN-XP5
  • ATN-XP3

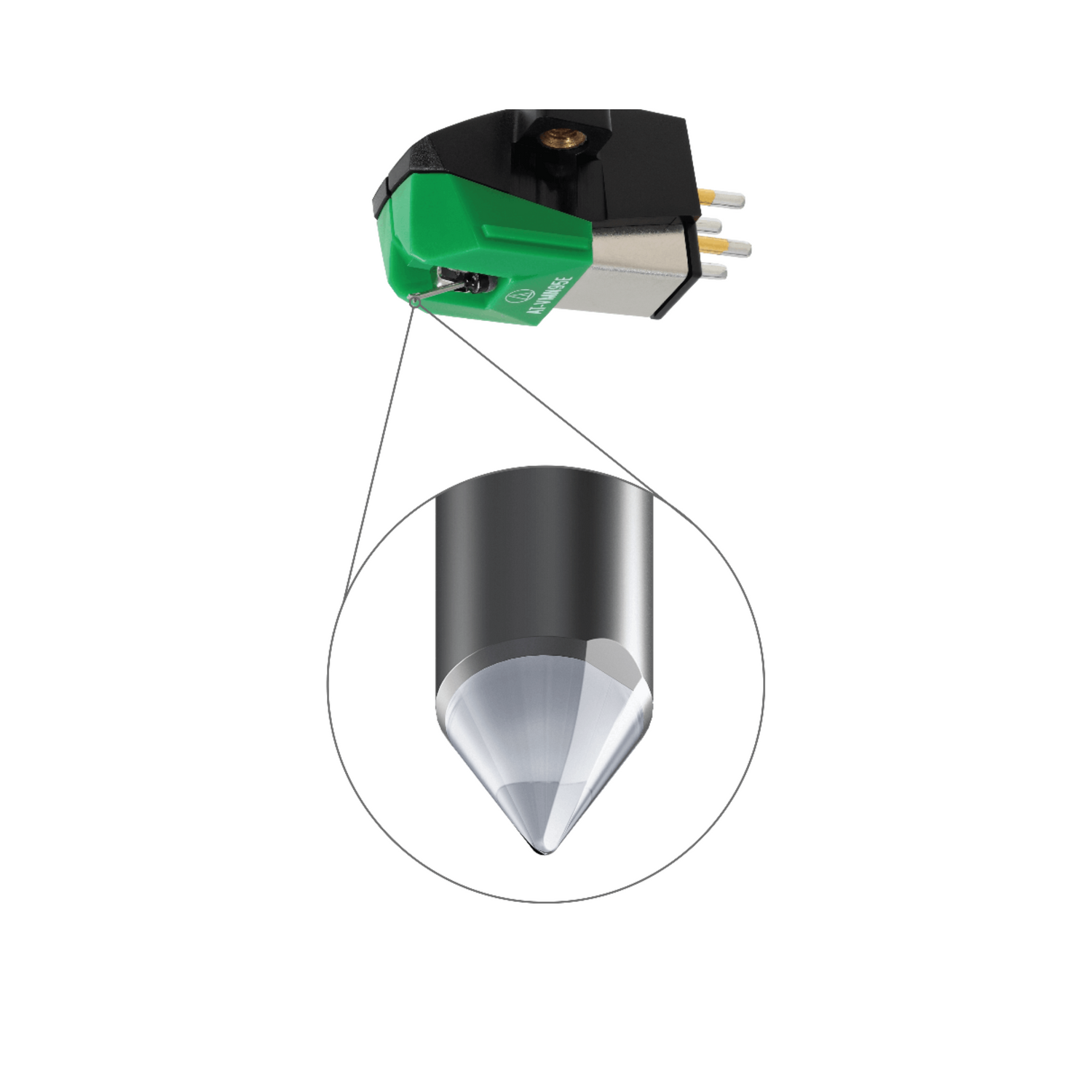

Elliptical Bonded Stylus The Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses while reducing distortion.

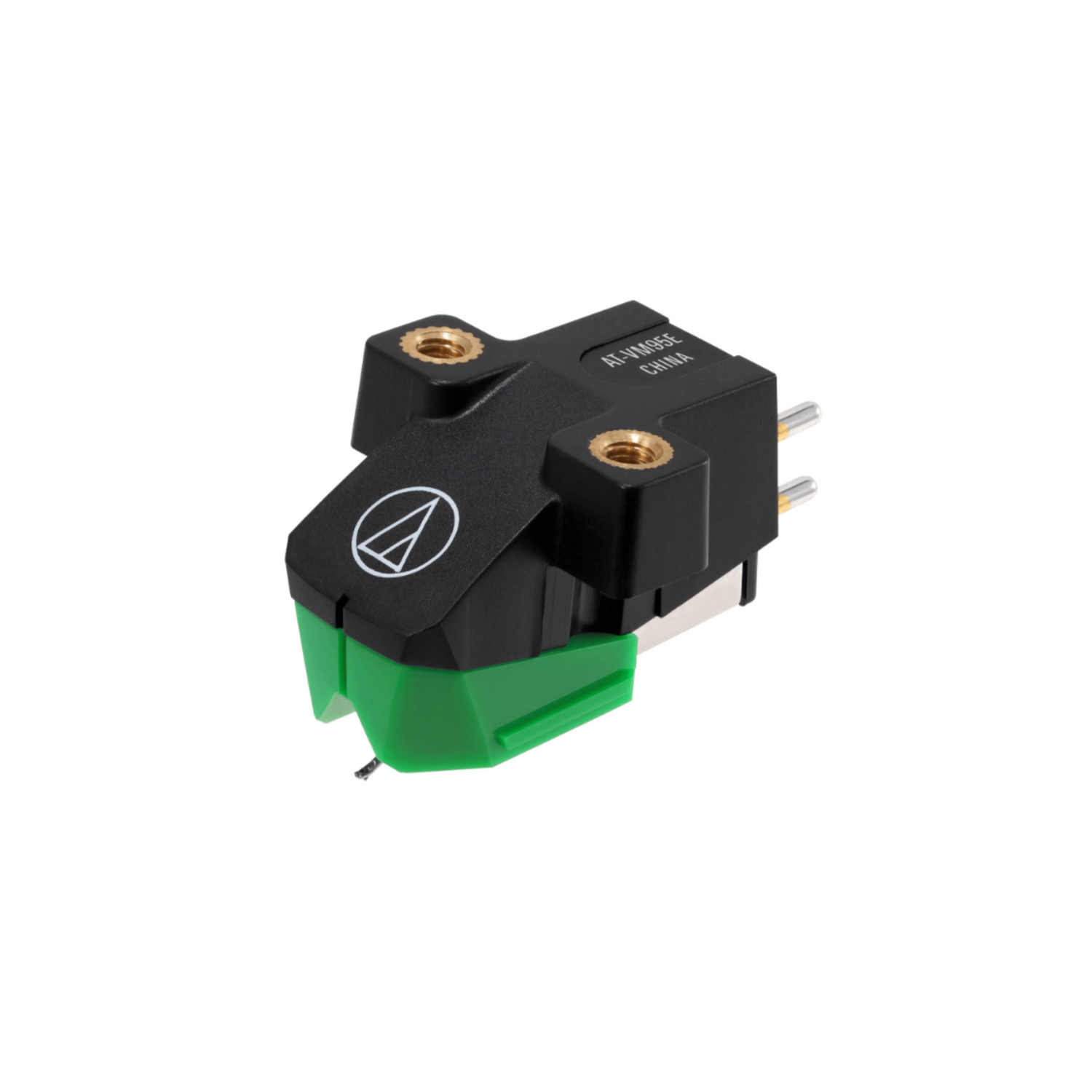

No Use of Nuts VM95 Series cartridges feature two M2.6 threaded inserts, allowing installation onto a tonearm or removable headshell without the need for nuts. Each cartridge comes with one pair of 8mm M2.6 screws, one pair of 11mm M2.6 screws, and two plastic washers.

Additional Information

Cartridge & Stylus
Frequency Response20 - 22,000 Hz
Channel Separation20 dB (1 kHz)
Vertical Tracking Angle23°
Vertical Tracking Force1.8 to 2.2g (2.0g standard)
Stylus ConstructionBonded Round Shank
Recommended Load Impedance47,000 Ω
Coil Impedance3.3 kΩ (1 kHz)
DC Resistance485 Ω
Coil Inductance550 mH (1 kHz)
Output Voltage4.0 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance2.0 dB (1 kHz)
Stylus ShapeElliptical
CantileverAluminium Pipe
Static Compliance17 x 10–6 cm / dyne
Dynamic Compliance7 x 10–6 cm / dyne (100 Hz)
Mounting1/2” centres
Cartridge Weight6.1g
Dimensions17.2 x 18.9 x 28.3 (H x W x D mm)
Accessories IncludedTwo 11 mm installation screws;
Two 8 mm installation screws;
Two washers
ModelAT-VM95E
Recommended Load Capacitance100-200 pF
Replacement StylusAT-VMN95E
Stylus Size0.3 x 0.7 mil
TypeVM Stereo Dual Magnet
Wire Used for CoilT.P. Copper
