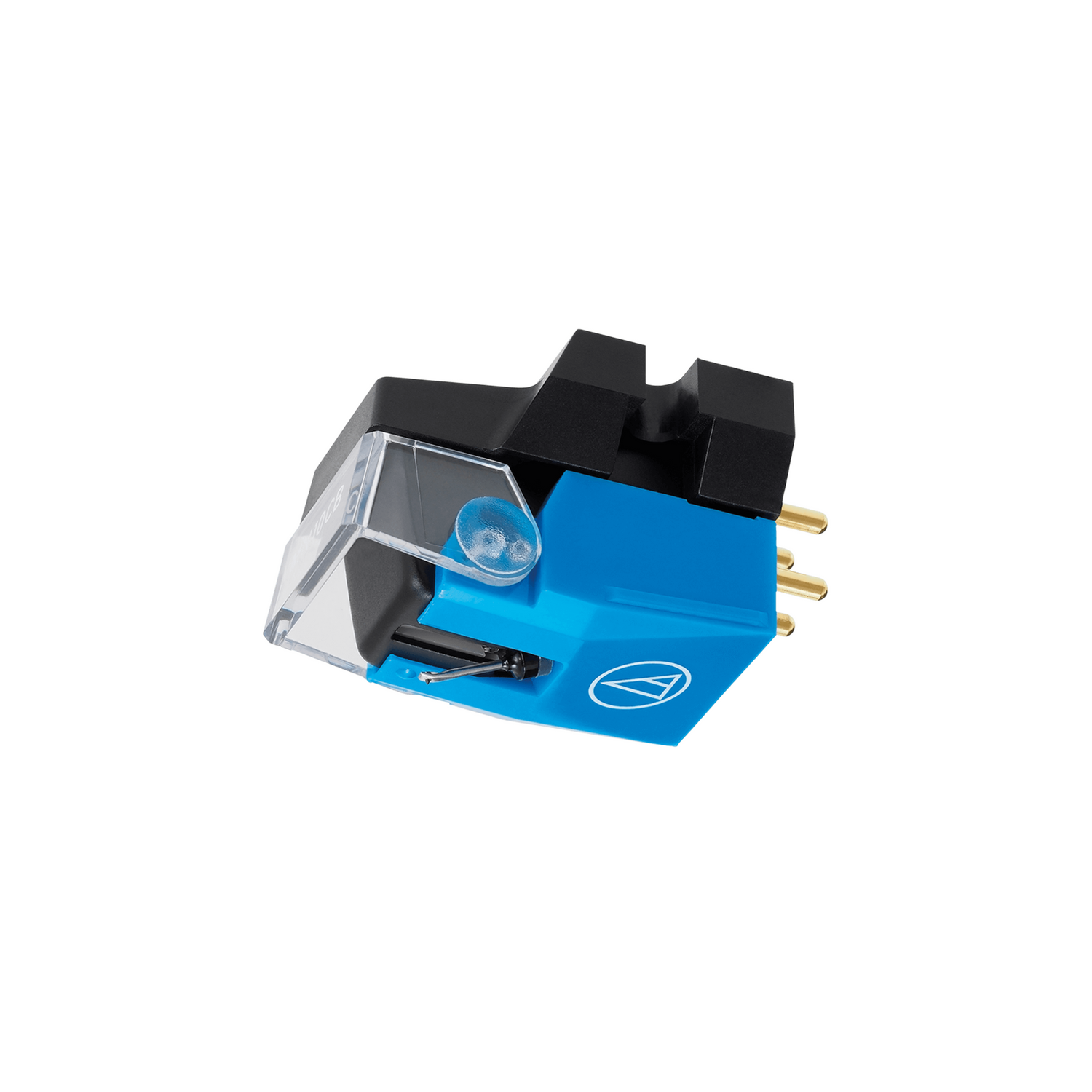

Audio Technica VM510CB Dual Moving Magnet Cartridge

The VM510CB is an entry-level dual moving magnet stereo cartridge designed to deliver impressive audio quality for vinyl enthusiasts. Equipped with a conical bonded stylus, this cartridge offers stable tracing performance and is less affected by placement, ensuring consistent playback.

Premium Construction

Featuring an aluminium cantilever and para-toroidal coils, the VM510CB cartridge maximises generating efficiency and offers superb linearity for accurate sound reproduction. The inclusion of a centre shield plate between the left and right channels reduces crosstalk, enhancing the clarity of your music.

Internationally-Patented Dual Magnet Design

Audio-Technica's innovative Dual Magnet design replicates the structure of the cutter head, providing outstanding channel separation, extended frequency response, and superb tracking. The precisely positioned magnets ensure optimal performance, capturing the nuances of your favourite records with precision.

Para-Toroidal Generating System

The para-toroidal coils in the VM510CB cartridge minimise leakage of magnetic flux, resulting in low distortion and improved sonic accuracy. Additionally, laminated cores optimise permeability, further enhancing performance.

Centre Shield Plate for Reduced Crosstalk

With a permalloy centre shield plate, the VM510CB effectively separates left and right channels, suppressing electrical crosstalk to ensure clear and detailed sound reproduction.

500 Series Compatibility

The standard cartridge body of the VM510CB is equipped with para-toroidal coils, a centre shield plate, and 6N-OFC coil wire, offering exceptional performance that rivals higher-end models in the 700 series.

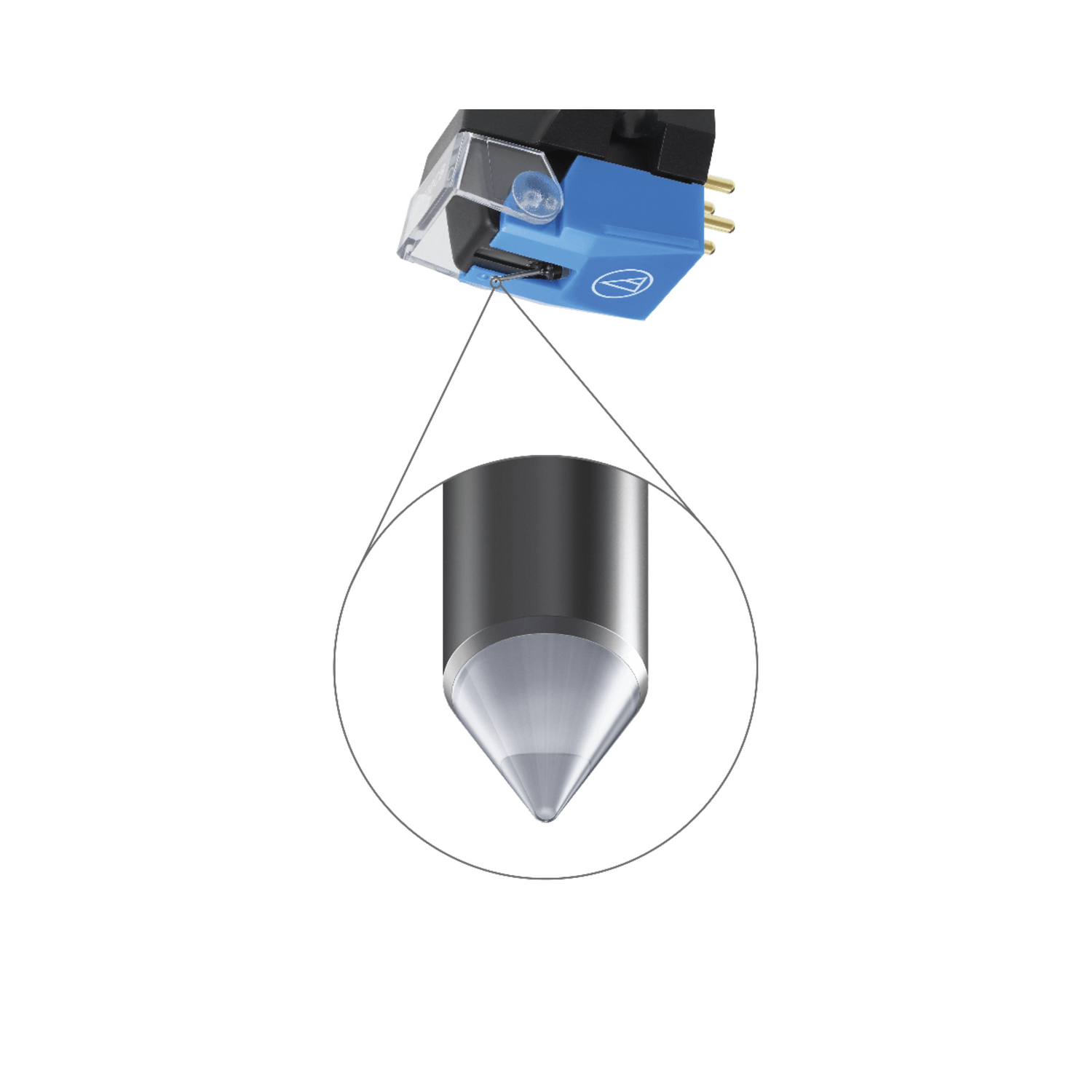

Conical Bonded Stylus

The conical bonded stylus of the VM510CB ensures precise tracking and stability, making it ideal for various listening environments, including radio stations. Enjoy accurate playback and reliable performance with this high-quality cartridge from Audio Technica.

  • Aluminium Cantilever: This stylus features an aluminium cantilever, providing durability and reliability for consistent performance over time.
  • Para-Toroidal Coils: Enhanced generating efficiency is achieved through the implementation of para-toroidal coils, resulting in improved signal reproduction and fidelity.
  • Centre Shield Plate: To minimise crosstalk between the left and right channels, a centre shield plate is incorporated, ensuring clear and distinct audio separation.
  • Durable Low Resonance Polymer Housing: The stylus is housed in a durable low resonance polymer casing, which helps to reduce vibrations and unwanted resonance, preserving the integrity of the audio signal.

Cartridge & Stylus
Frequency Response20 - 20,000Hz
Channel Separation25dB (1kHz)
Vertical Tracking Angle23˚
Vertical Tracking Force1.8 to 2.2g (2.0g standard)
Stylus ConstructionBonded Round Shank
Recommended Load Impedance47,000Ω
Coil Impedance2,700Ω (1kHz)
Output Voltage5.0mV (1kHz, 5cm/sec.)
Output Channel Balance1.5dB (1kHz)
Stylus ShapeConical Bonded
CantileverAluminium Pipe
Static Compliance35 x 10-6 cm/dyne
Dynamic Compliance8 x 10-6 cm/dyne (100Hz)
Mounting1/2” centres
Dimensions17.3 (H) x 17.0 (W) x 28.2 (L) mm
Accessories IncludedCartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
Recommended Load Capacitance100 – 200pF
Replacement StylusVMN10CB
Stylus Size0.6 mil
TypeVM Type
Weight6.4g
