Audio Technica VM530EN/H Moving Magnet Cartridge with HS10 Headshell

Audio Technica  |  SKU: 60654
Barcode: 4961310137632
£189.98

  • Free & Next-Day Delivery Available

    Superfast Next Day Delivery available. T&Cs

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days. T&Cs

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description

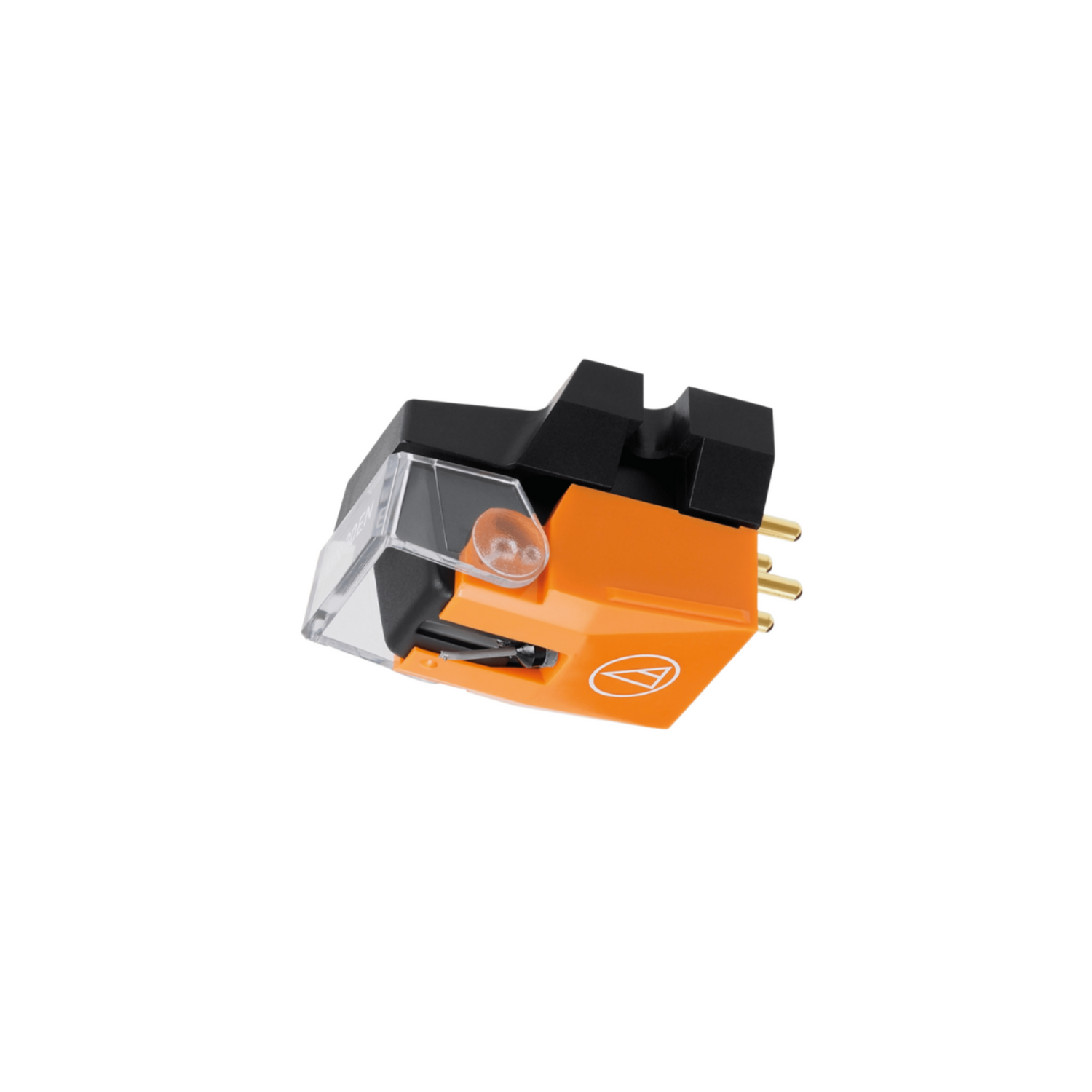

Audio Technica VM530EN/H Moving Magnet Cartridge with HS10 Headshell

The Audio Technica VM530EN/H features a high-end elliptical stylus model pre-assembled with a lightweight aluminium headshell (AT-HS10). The nude elliptical stylus helps reduce the execution mass of the vibration system while offering increased frequency reproduction.

Internationally-Patented Dual Magnet Design

Audio-Technica’s patented Dual Magnet design replicates the structure of the cutter head. Instead of using a single, large magnet, the two magnets are arranged in a "V" shape, precisely positioned to match the left and right channels in the stereo groove walls. This design ensures outstanding channel separation, extended frequency response, and superb tracking.

Para-toroidal Generating System

Para-toroidal coils improve generating efficiency and offer superb linearity, as leakage of magnetic flux in this continuous and unitised magnetic circuit is low. The permeability of the cores is also optimised through the use of laminated cores.

Centre Shield Plate for Reduced Crosstalk

A permalloy centre shield plate enables effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This level of crosstalk suppression is similar to the actual crosstalk value found in the grooves of the record itself.

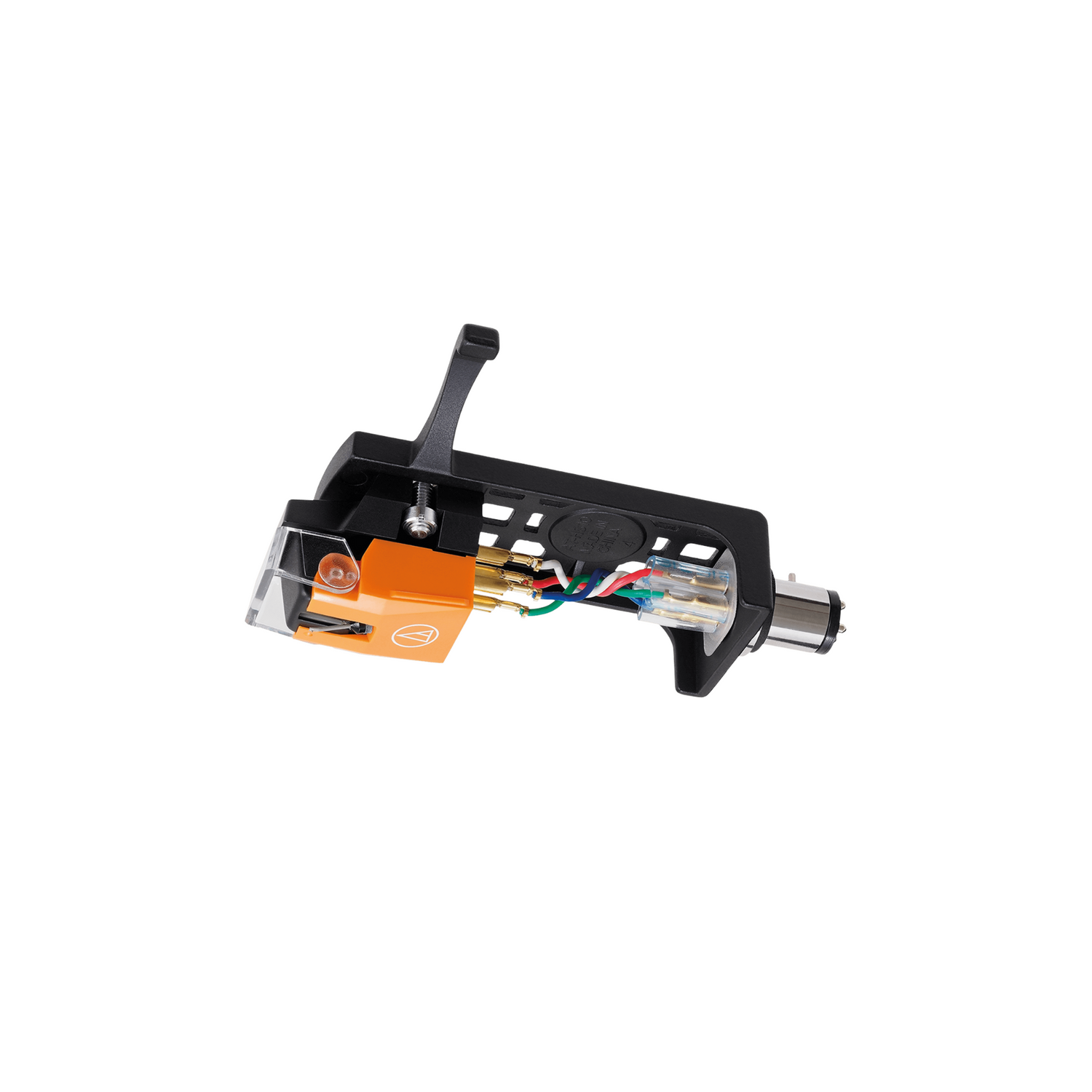

Preassembled With HS10 Headshell

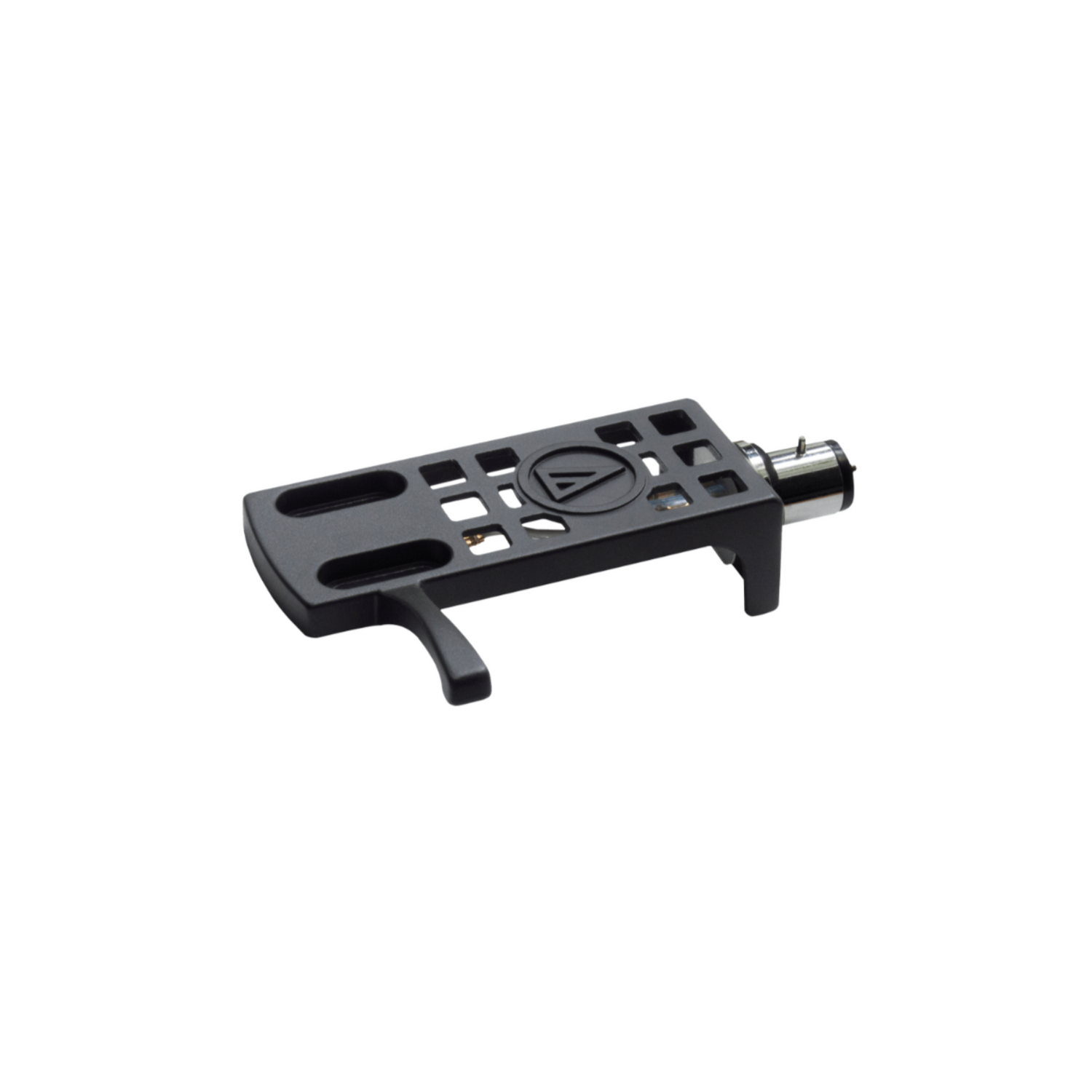

The VM530EN cartridge is fitted onto a die-cast aluminium HS10 Headshell, suitable for 4-pin turntable arms, providing convenience and ease of installation.

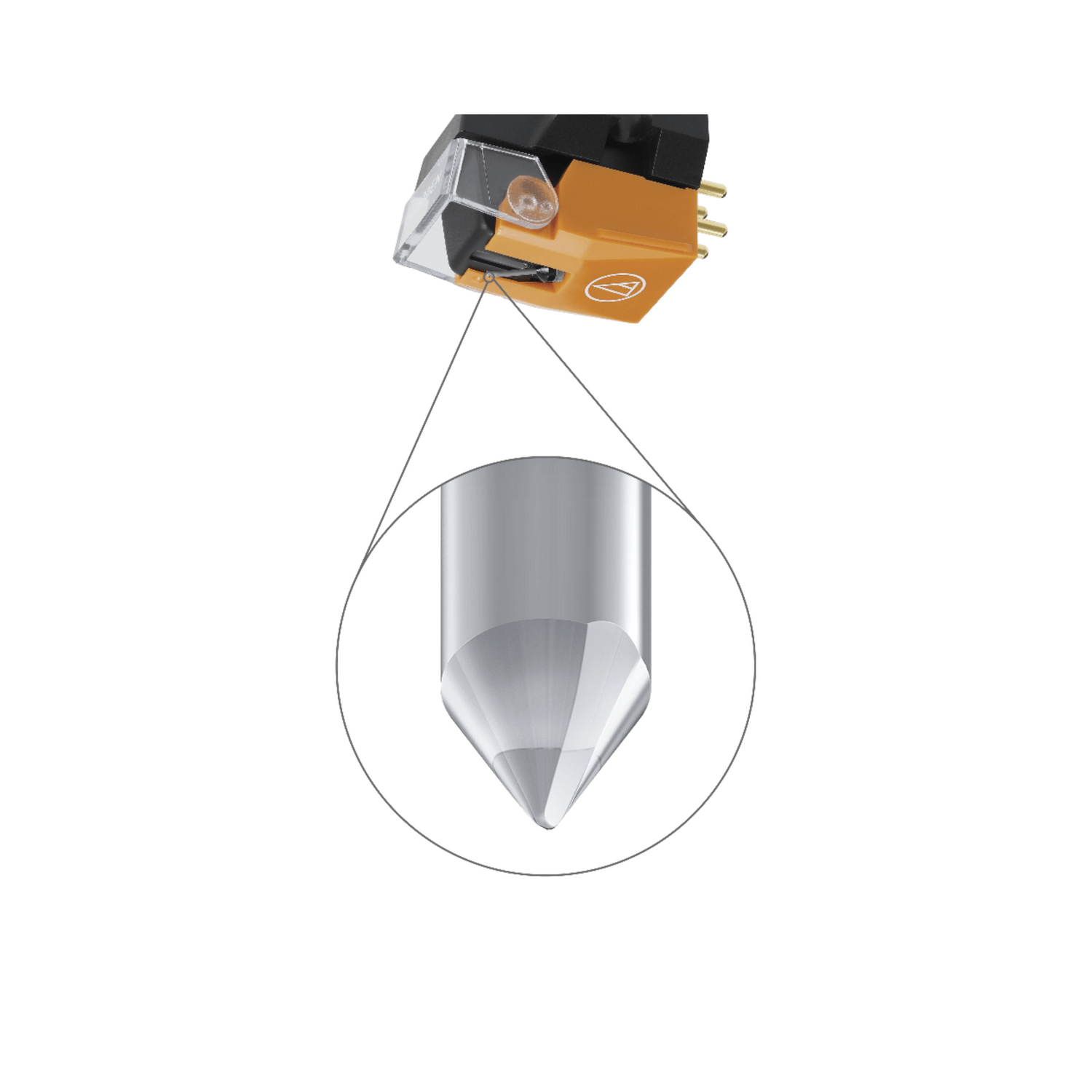

Elliptical Nude Stylus

The elliptical diamond stylus follows groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses while reducing distortion.

Additional Information

Cartridge & Stylus Information
Frequency Response20 - 25,000Hz
Channel Separation27dB (1kHz)
Vertical Tracking Angle23˚
Vertical Tracking Force1.8 to 2.2g (2.0g standard)
Stylus ConstructionNude Round Shank
Recommended Load Impedance47,000Ω
Coil Impedance2,700Ω (1kHz)
Output Voltage4.0mV (1kHz, 5cm/sec.)
Output Channel Balance1.5dB (1kHz)
Stylus ShapeElliptical Nude
CantileverAluminium Pipe
Static Compliance35 x 10^-6 cm/dyne
Dynamic Compliance8 x 10^-6 cm/dyne (100Hz)
Mounting1/2” centres
Dimensions17.3 (H) x 17.0 (W) x 28.2 (L) mm
Accessories IncludedCartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
Recommended Load Capacitance100 – 200pF
Replacement StylusVMN30EN
Stylus Size0.3 x 0.7 mil
TypeVM Type
Weight6.4g
