Audio Technica VM750SH Dual Moving Magnet Stereo Cartridge with Shibata Stylus

SKU 50369
Original price £369.98 - Original price £369.98
Original price
£369.98 - £369.98
Current price £369.98

  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • 1 Year Warranty

    1 Year Warranty for Peaceful Ownership

Audio Technica VM750SH Dual Moving Magnet Stereo Cartridge with Shibata Stylus

The Audio Technica VM750SH Dual Moving Magnet Stereo Cartridge is designed for audiophiles seeking high-fidelity playback of 4-channel vinyl records. Fitted with the Shibata stylus, renowned for its exceptional high-frequency reproduction capabilities, this cartridge delivers stunning clarity across the entire frequency spectrum.

Patented Dual Magnet Design

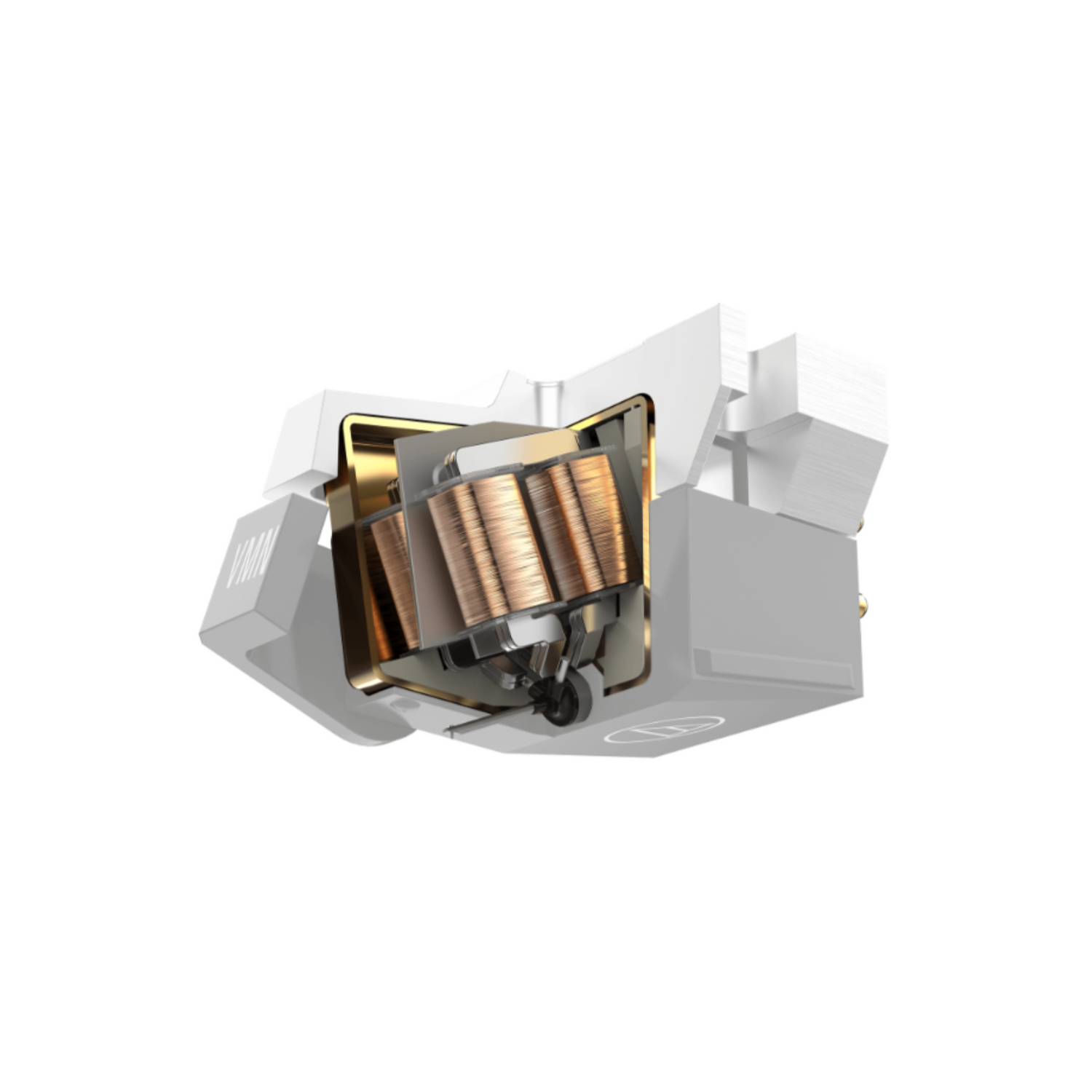

Built upon Audio Technica's internationally-patented Dual Magnet design, the VM750SH cartridge replicates the structure of the cutter head for outstanding performance. The dual magnets are precisely arranged to match the positions of the left and right channels in the stereo groove walls, ensuring exceptional channel separation, extended frequency response, and superb tracking.

Para-Toroidal Generating System

Equipped with para-toroidal coils, the VM750SH cartridge offers improved generating efficiency and superb linearity. The continuous and unitised magnetic circuit minimises leakage of magnetic flux, while laminated cores optimise permeability, resulting in pristine audio reproduction with minimal distortion.

Centre Shield Plate for Reduced Crosstalk

Featuring a permalloy centre shield plate, the VM750SH cartridge effectively separates left and right channels, suppressing electrical crosstalk to below 40dB. This ensures a clean and precise audio signal, similar to the crosstalk value found in the record grooves themselves.

700 Series Excellence

As part of the prestigious 700 series, the VM750SH cartridge boasts a top-end die-cast aluminium alloy housing. This robust body reduces unwanted vibration, enhancing the superior sound quality delivered by high-performance line contact styli.

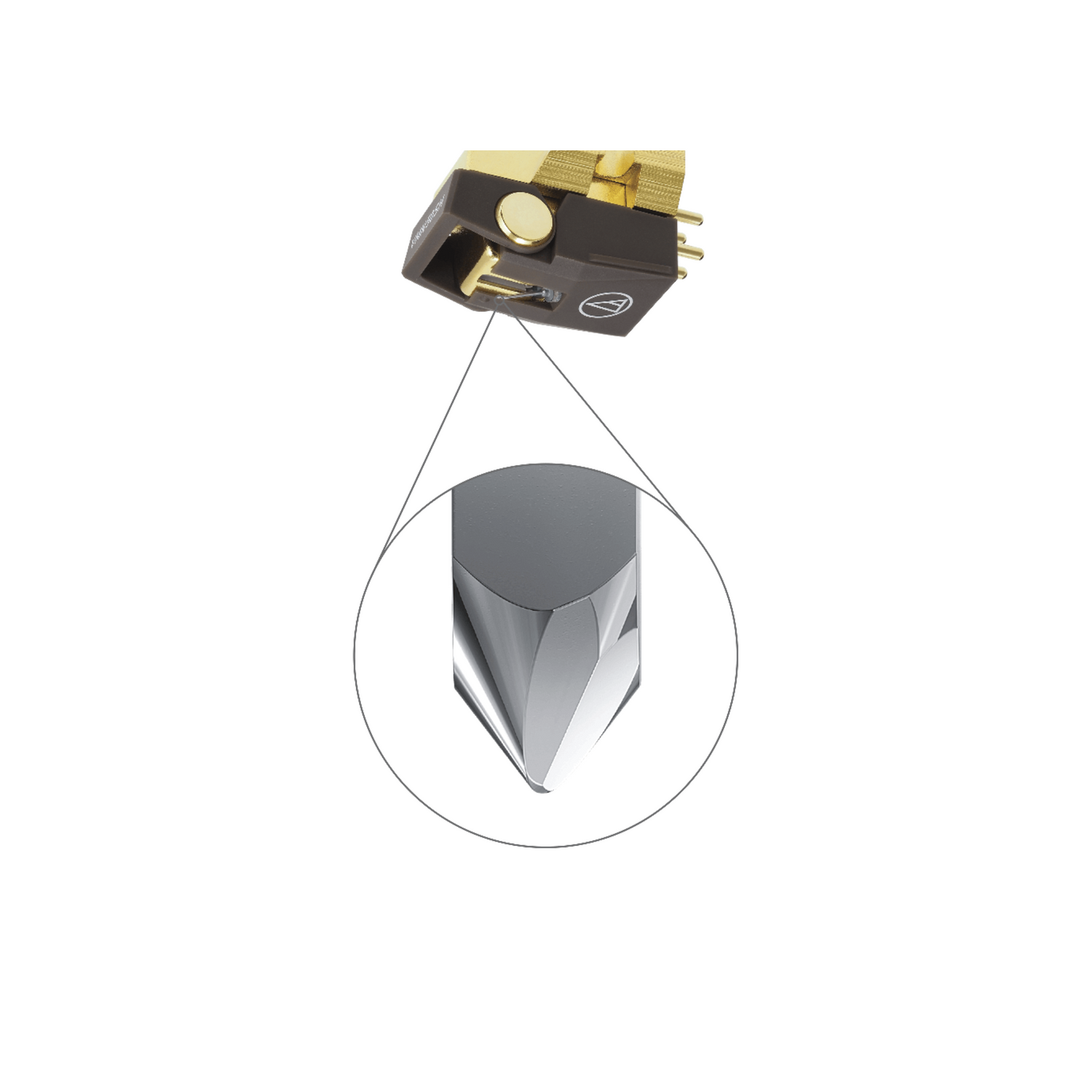

Shibata-Signature Sound

The Shibata stylus delivers a beautiful mid-high range Shibata-signature sound, along with strong mid-range volume. Whether you're enjoying delicate highs or powerful mid-tones, the VM750SH cartridge provides an immersive listening experience that brings your vinyl records to life.

  • Aluminium Tapered Cantilever: The stylus boasts an aluminium tapered cantilever, ensuring durability and precise tracking for optimal performance.
  • Para-Toroidal Coils: Generating efficiency is enhanced by para-toroidal coils, resulting in accurate signal reproduction and improved fidelity.
  • Centre Shield Plate: Positioned between the left and right channels, a centre shield plate effectively reduces crosstalk, promoting clearer audio separation.
  • Die-Cast Aluminium Alloy Housing: Housed within a die-cast aluminium alloy housing, the stylus experiences reduced vibration and benefits from a natural electrical shield, preserving the purity of the audio signal.

Cartridge & Stylus
Frequency Response20 - 27,000Hz
Channel Separation30dB (1kHz)
Vertical Tracking Angle23˚
Vertical Tracking Force1.8 to 2.2g (2.0g standard)
Stylus ConstructionNude Square Shank
Recommended Load Impedance47,000Ω
Coil Impedance2,700Ω (1kHz)
Output Voltage4.0mV (1kHz, 5cm/sec.)
Output Channel Balance1.0dB (1kHz)
Stylus ShapeShibata
CantileverAluminium Tapered Pipe
Static Compliance40 x 10-6 cm/dyne
Dynamic Compliance10 x 10-6 cm/dyne (100Hz)
Mounting1/2” centres
Dimensions17.3 (H) x 17.0 (W) x 28.2 (L) mm
Accessories IncludedCartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
Recommended Load Capacitance100 – 200pF
Replacement StylusVMN50SH
Stylus Size0.26 x 2.7 mil
TypeVM Type

  • Audio Technica VM750SH
  • Cartridge installation screws 5mm ×2 and 10mm ×2
  • Washer ×2
  • Hexagon nut ×2
  • Non-magnetic screwdriver ×1
  • Brush ×1
  • Lead wire set ×1
