Audio Technica VM760SLC Dual Moving Magnet Stereo Cartridge

Audio Technica  |  SKU: 50368
Barcode: 4961310137595
£599.99

  • Free & Next-Day Delivery Available

    Superfast Next Day Delivery available. T&Cs

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days. T&Cs

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description

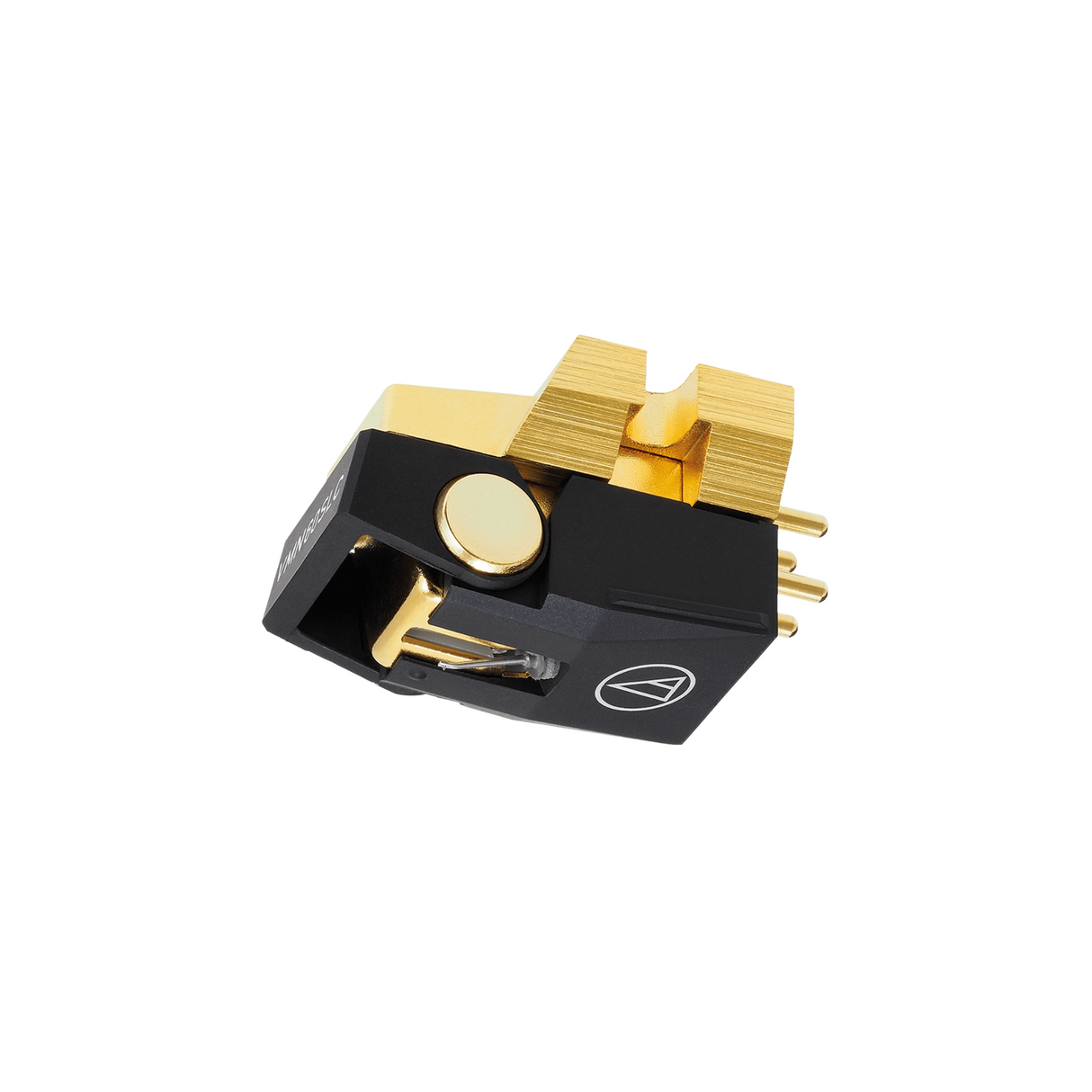

Audio Technica VM760SLC Dual Moving Magnet Stereo Cartridge

Exceptional Stylus Precision

The Audio Technica VM760SLC Dual Moving Magnet Stereo Cartridge sets a new standard in audio reproduction with its ultra-lightweight stylus tip, ground to a high level of precision. This advanced design achieves a low distortion rate while delivering fuller frequency reproduction during playback, extracting every detail from the grooves on a record.

Patented Dual Magnet Design

Built upon Audio Technica's internationally-patented Dual Magnet design, the VM760SLC cartridge ensures outstanding performance. By arranging two magnets in a precise "V" shape, the cartridge achieves exceptional channel separation, extended frequency response, and superb tracking, matching the positions of the left and right channels in the stereo groove walls.

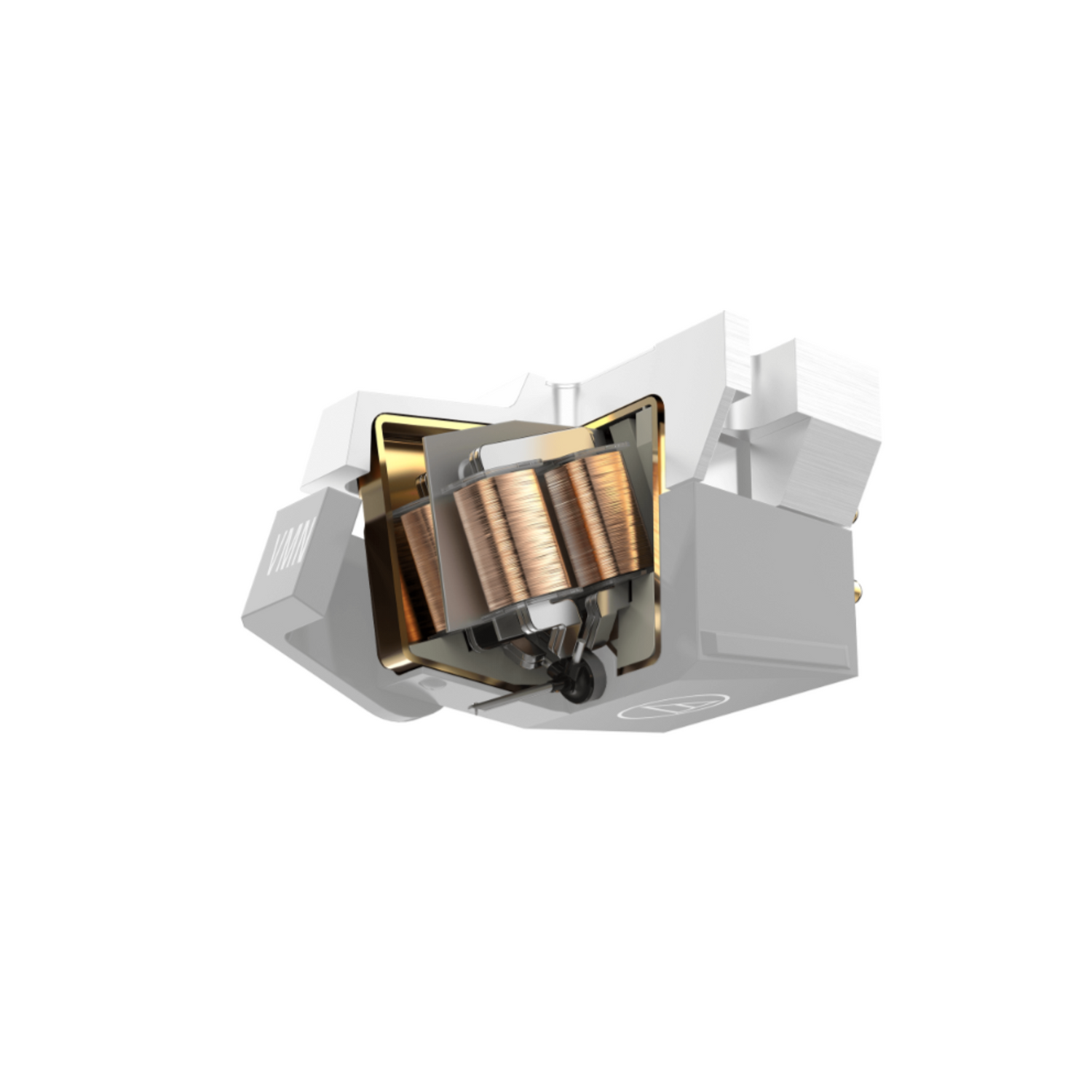

Para-Toroidal Generating System

Featuring para-toroidal coils, the VM760SLC cartridge offers improved generating efficiency and superb linearity. The continuous and unitised magnetic circuit minimises leakage of magnetic flux, while laminated cores optimise permeability, resulting in pristine audio reproduction with minimal distortion.

Centre Shield Plate for Reduced Crosstalk

Equipped with a permalloy centre shield plate, the VM760SLC cartridge effectively separates left and right channels, suppressing electrical crosstalk to below 40dB. This ensures a clean and precise audio signal, akin to the crosstalk value found in the record grooves themselves.

700 Series Excellence

As part of the prestigious 700 series, the VM760SLC cartridge boasts a top-end die-cast aluminium alloy housing. This robust body reduces unwanted vibration, enhancing the superior sound quality delivered by the cartridge's special line contact stylus.

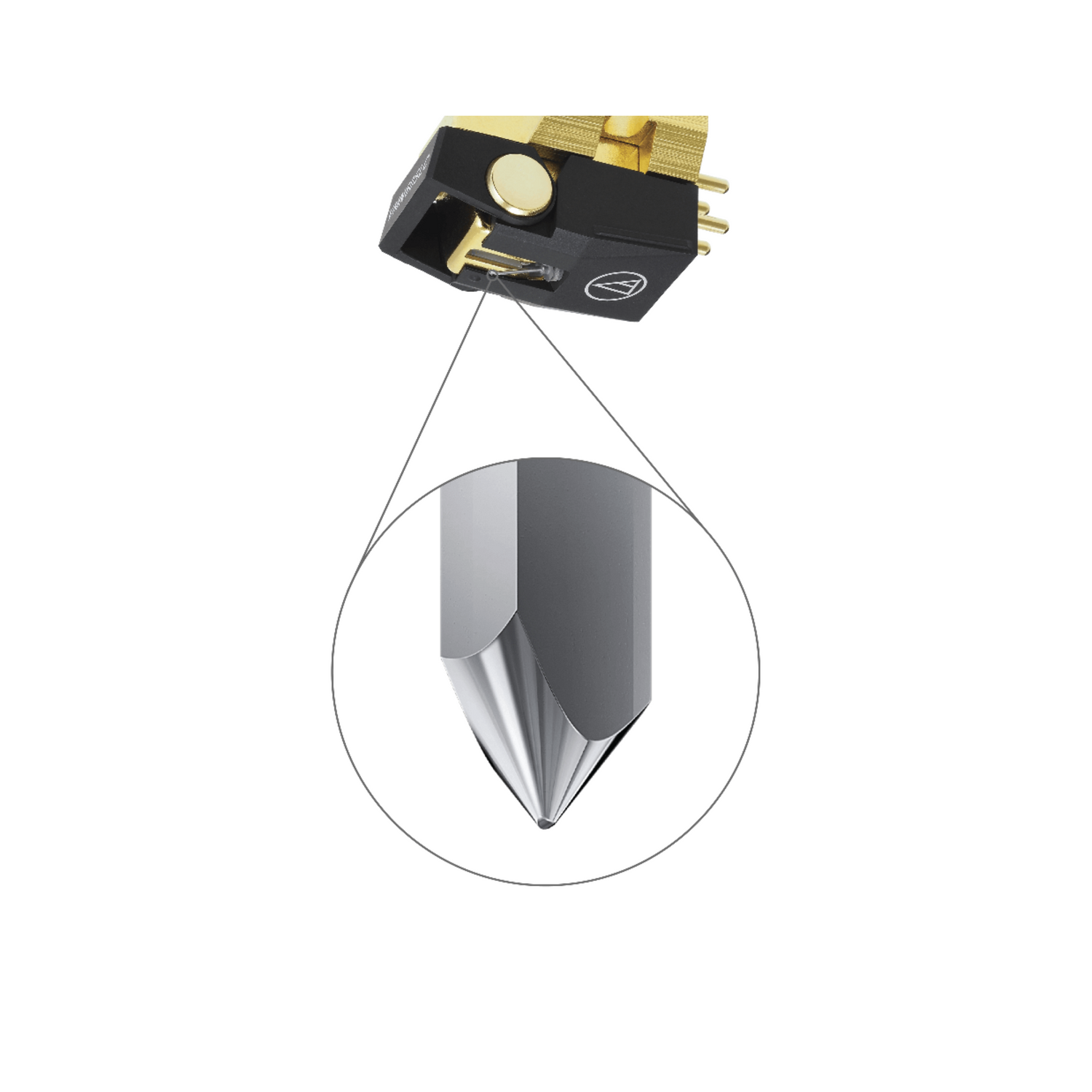

Special Line Contact Stylus

The VM760SLC cartridge features a special line contact diamond stylus construction, providing the ability to track the most complex record grooves with precision and accuracy, ensuring an unparalleled listening experience.

Additional Information

Cartridge & Stylus
Frequency Response20 - 30,000Hz
Channel Separation30dB (1kHz)
Vertical Tracking Angle23˚
Vertical Tracking Force1.8 to 2.2g (2.0g standard)
Stylus ConstructionNude Rectangular Shank
Recommended Load Impedance47,000Ω
Coil Impedance2,700Ω (1kHz)
Output Voltage4.0mV (1kHz, 5cm/sec.)
Output Channel Balance1.0dB (1kHz)
Stylus ShapeSpecial Line Contact
CantileverAluminium Tapered Pipe
Static Compliance40 x 10-6 cm/dyne
Dynamic Compliance10 x 10-6 cm/dyne (100Hz)
Mounting1/2” centres
Dimensions17.3 (H) x 17.0 (W) x 28.2 (L) mm
Accessories IncludedCartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
Recommended Load Capacitance100 – 200pF

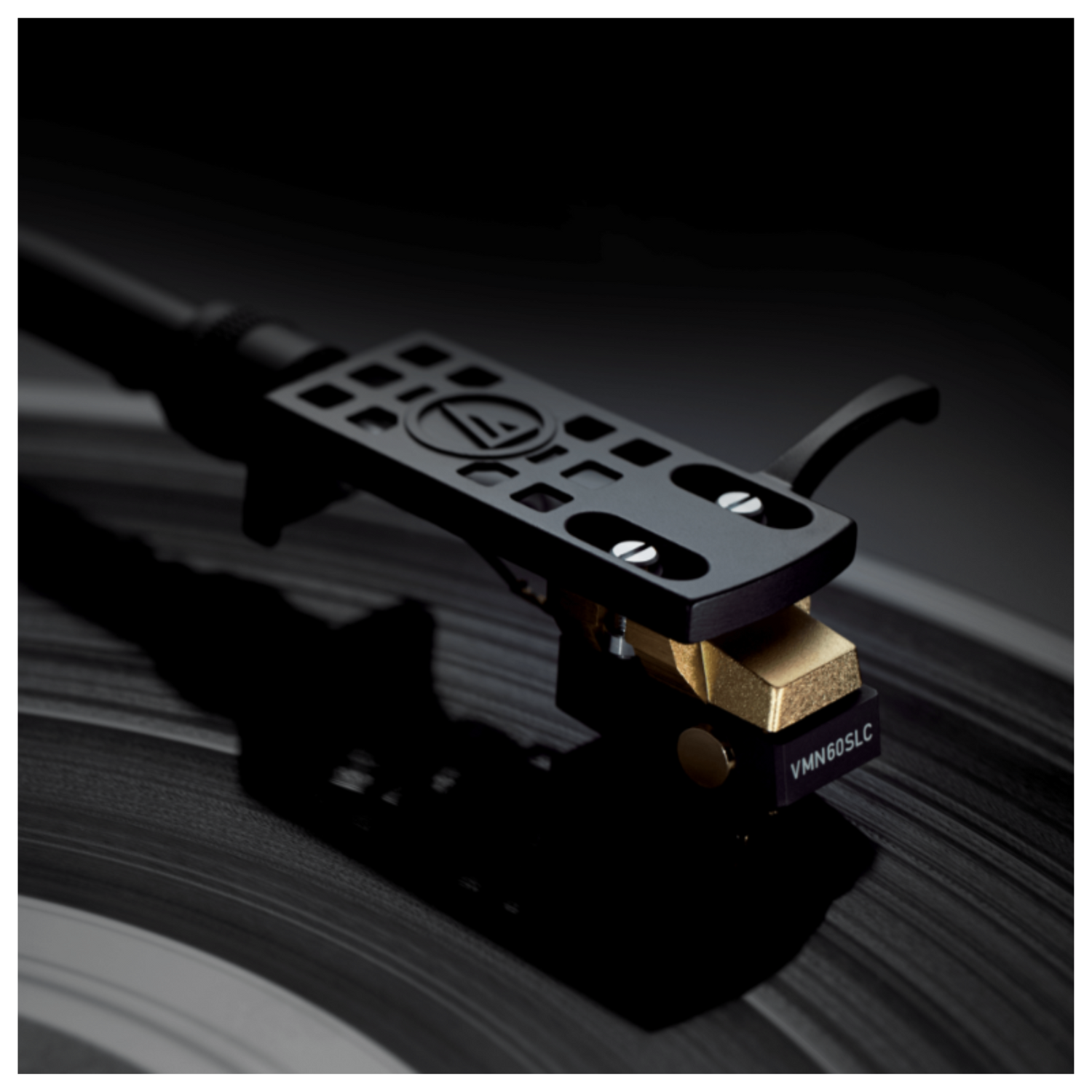

Replacement StylusVMN60SLC
Stylus Size0.28 x 1.5 mil
TypeVM Type
Weight8.0g
