Audio Technica AT33EV Stereo Moving Coil Cartridge

The AT33EV stereo moving coil cartridge builds upon the legacy of the AT33ANV, originally introduced as a special release commemorating our 45th anniversary. Retaining the acclaimed features of its predecessor, the AT33EV represents a further refinement and evolution of this renowned cartridge series.

Design and Performance

Featuring a ½ inch, standard mount design, the AT33EV cartridge boasts a 0.3 x 0.7 mil elliptical stylus and a tapered Duralumin cantilever. This innovative design reduces the effective mass of the cartridge, enhancing durability while maintaining exceptional sound quality. The Dual Moving Coil configuration enhances channel separation and extends the frequency response range, delivering unparalleled audio fidelity.

Neodymium Magnet and PCOCC Wire

Internally constructed with a neodymium magnet, the AT33EV cartridge maximises magnetic energy for superior performance. Additionally, PCOCC wire is employed for pure audio transmission, ensuring pristine sound reproduction with every playback.

Minimising Unnecessary Vibration

The interior housing of the AT33EV cartridge utilises 'Hanenite' to minimise unnecessary vibration, allowing the dual moving coil's outstanding performance to shine. By reducing vibration at the cantilever fulcrum support, the cartridge maintains its exceptional sound quality and clarity.

Rich Sound Reproduction

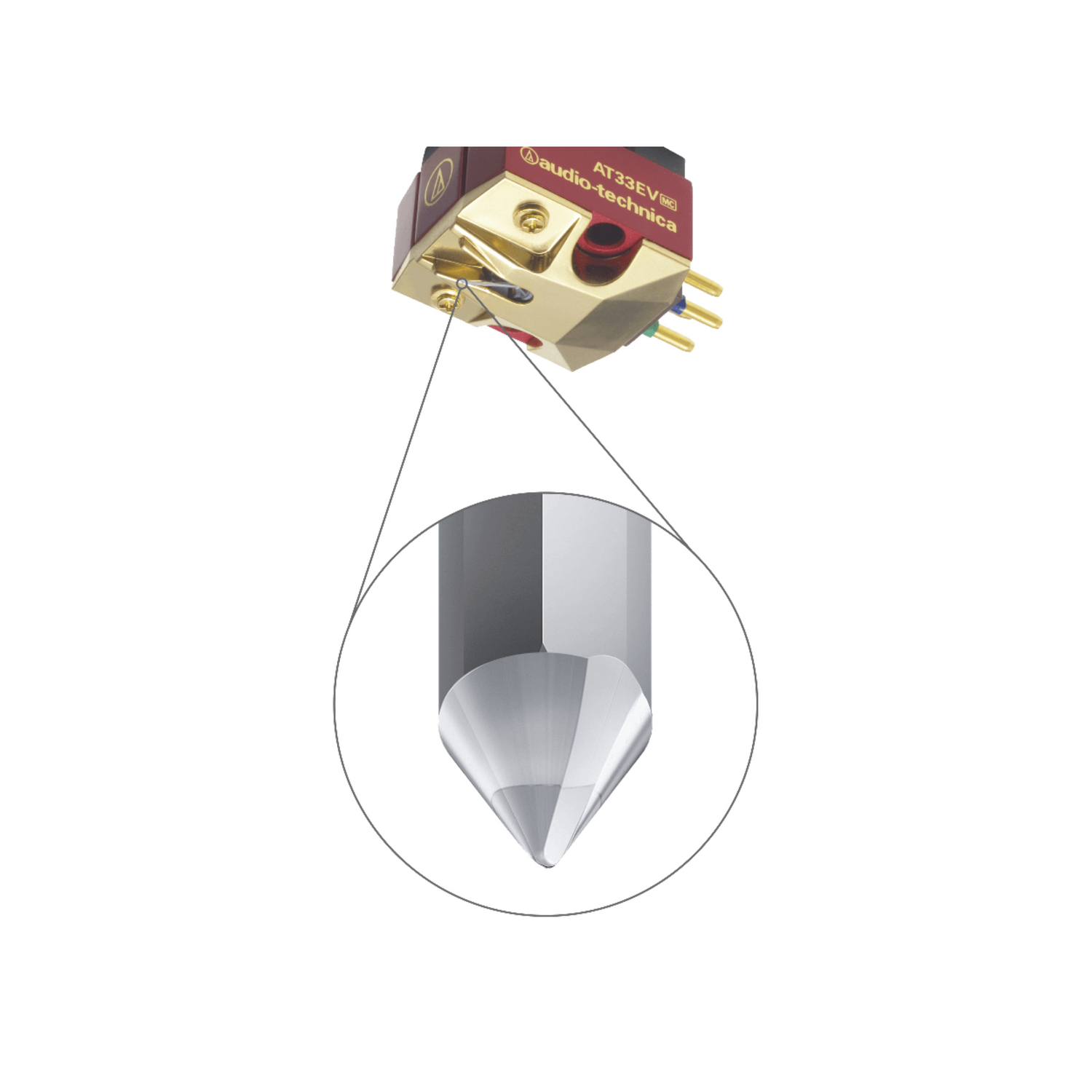

Embedded within a hard duralumin tapered pipe cantilever, the elliptical stylus chip of the AT33EV cartridge excels in reproducing sounds across the medium and low ranges. With its robust construction and outstanding mechanical strength, the duralumin cantilever produces natural, distortion-free sound, enriching the listening experience with its ability to faithfully capture musical nuances.

  • Elliptical Stylus Chip and Durable Duralumin Tapered Pipe Cantilever: Equipped with an elliptical stylus chip and a durable duralumin tapered pipe cantilever, ensuring precise tracking and reliable playback of audio recordings.
  • 10 Ohm Mid Impedance Specifications: Designed with mid impedance specifications of 10 ohms, providing stable performance and efficient signal transmission for consistent audio quality.
  • Neodymium Magnets and PCOCC Coil: Utilizes neodymium magnets and a PCOCC (Pure Copper Ohno Continuous Casting) coil to dramatically increase magnetism and enhance the efficiency of signal transmission, resulting in improved sound reproduction.
  • High Separation, Wide-Response Dual Moving Coil: Features a high separation, wide-response dual moving coil configuration, allowing for detailed and accurate audio reproduction across the frequency spectrum.
  • VC Mold Technology: Incorporates VC Mold technology to eliminate unnecessary vibrations, maintaining stability and reducing distortion during playback.
  • "Hanenite" Anti-Vibration Rubber: Utilises "Hanenite" anti-vibration rubber to effectively dampen unwanted vibrations, ensuring a smoother and more precise playback experience.

Cartridge & Stylus
Frequency Response15 - 50,000Hz
Channel Separation30dB (1kHz)
Vertical Tracking Angle23°
Vertical Tracking Force1.8 to 2.2 g (standard 2.0 g)
Stylus ConstructionNude Square Shank
Recommended Load ImpedanceMore than 100Ω (when head amp connected)
Coil Impedance10Ω (1kHz)
DC Resistance10Ω
Coil Inductance22µH (1kHz)
Output Voltage0.3mV (1kHz and 3.54cm/sec.)
Output Channel Balance0.5dB (1kHz)
Stylus ShapeElliptical
CantileverDuralumin
Static Compliance40×10-6cm/dyne
Dynamic Compliance10×10-6cm/dyne (100Hz)
Mounting1/2" Centers
DimensionsH16×W16.6×D26.5mm
Accessories IncludedNon-magnetic screwdriver × 1, Washer × 2, Protector × 1, Cartridge installation screws 13 mm × 2 and 19 mm × 2, Nut × 2, Brush × 1, PCOCC lead set × 1
Body MaterialAluminium/Synthetic Resin
Stylus Curvature Radius0.3 x 0.7 mil
Terminal PinsBrass
TypeDual Moving Coil
Weight6.9g

  • Audio Technica V
  • Non-magnetic screwdriver × 1
  • Washer × 2
  • Protector × 1
  • Cartridge installation screws 13 mm × 2 and 19 mm × 2, Nut × 2
  • Brush × 1
  • PCOCC lead set × 1
