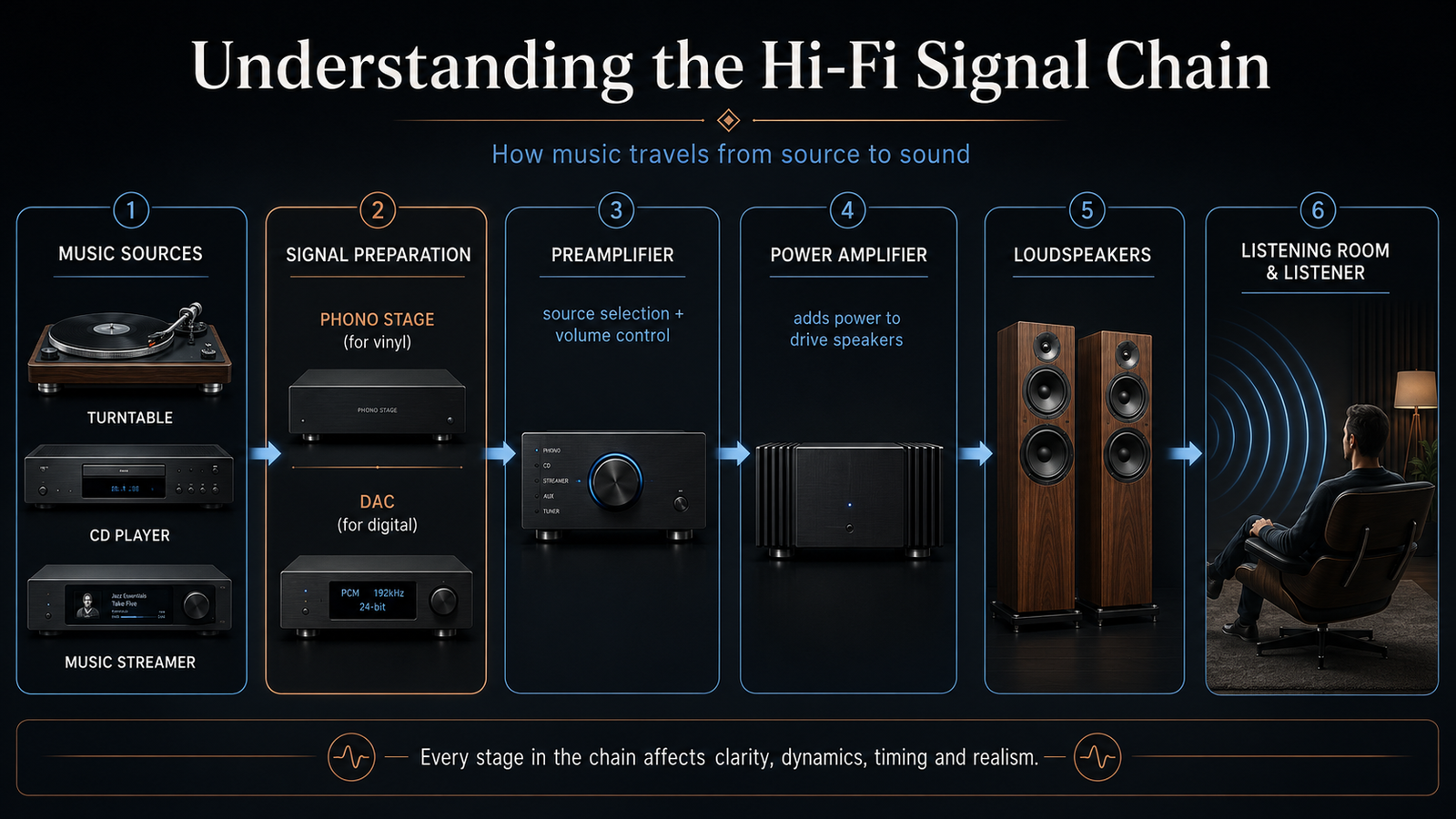

Understanding the Hi-Fi Signal Chain
A high-quality Hi-Fi system is more than a collection of individual components. It is a complete signal chain in which every component has a specific job: retrieving the music, converting it into an electrical signal, controlling and amplifying that signal, and finally turning it back into sound.
Understanding this chain can help you choose compatible equipment, diagnose problems and build a system that delivers the best possible performance for your budget.
The basic Hi-Fi signal chain can be summarised as:
Music source → Signal conversion → Preamplification → Power amplification → Loudspeakers → Listening room
Although this may appear straightforward, the exact route taken by the signal depends on whether you are playing vinyl, CDs, streamed music or another source.
What Is a Hi-Fi Signal Chain?
A signal chain is the path that music follows through an audio system.
At the beginning of the chain is the music source. This could be a vinyl record, CD, music streamer, computer, television, cassette deck or radio tuner.
At the end of the chain are the loudspeakers, which convert the amplified electrical signal into sound waves.
Between the source and the loudspeakers, the signal may pass through several stages, including:
A cartridge
A phono stage
A CD transport
A streamer
A digital-to-analogue converter
A preamplifier
A power amplifier
Speaker cables
Every stage affects the signal in some way. A well-designed system preserves as much of the original musical information as possible while providing sufficient amplification and control.
The aim of Hi-Fi is not simply to make music louder. It is to reproduce the original recording with clarity, accuracy, dynamics, timing and emotional involvement.
1. The Music Source
The source is the starting point of the Hi-Fi signal chain. It contains or accesses the musical information that the rest of the system must reproduce.
Common Hi-Fi sources include:
Turntables
CD players
CD transports
Network streamers
Music servers
Computers
Smartphones and tablets
Cassette decks
Radio tuners
Televisions
The quality of the source matters because information that is lost, distorted or incorrectly retrieved at the beginning of the chain cannot be fully restored later.
This is sometimes described by the phrase “source first.” While every part of a Hi-Fi system is important, the source must retrieve the musical information accurately before the amplifier and loudspeakers can reproduce it.
The Analogue Signal Chain
An analogue source produces a continuously varying electrical signal that represents the original sound wave.
Vinyl is the most common example of an analogue Hi-Fi source.
A typical vinyl signal chain is:
Record → Stylus → Cartridge → Phono stage → Preamplifier → Power amplifier → Loudspeakers
Let us examine each stage.
2. The Vinyl Record
The grooves of a vinyl record contain physical variations that represent the recorded music.
These groove modulations move from side to side and, in stereo recordings, also contain vertical information. The shape of the groove carries information for the left and right audio channels.
As the record rotates, the stylus traces these microscopic movements.
Vinyl playback is an entirely mechanical process at this stage. The turntable must rotate the record at a stable and accurate speed while isolating the stylus from unwanted vibration.
Important aspects of turntable performance include:
Speed stability
Bearing quality
Motor noise
Platter construction
Tonearm accuracy
Cartridge alignment
Vibration isolation
Any unwanted movement can be interpreted by the cartridge as part of the music signal.
For example, vibration from the loudspeakers, furniture or floor can travel back into the turntable. This may create low-frequency noise, reduced clarity or acoustic feedback.
3. The Stylus and Cartridge
The stylus, sometimes called the needle, sits in the record groove.
As the record rotates, the stylus follows the groove’s movements. These movements travel through the cantilever into the cartridge.
The cartridge then converts this mechanical movement into a very small electrical signal.
There are two main cartridge types.
Moving Magnet Cartridges
A moving magnet cartridge uses a small magnet attached to the cantilever. As the stylus moves, the magnet moves between fixed coils and generates an electrical signal.
Moving magnet cartridges usually offer:
A relatively high output
Replaceable styli on many models
Wide compatibility
Affordable replacement costs
Straightforward phono-stage requirements
They are commonly used on entry-level and mid-range turntables, although high-quality moving magnet cartridges can also deliver excellent performance.
Moving Coil Cartridges
A moving coil cartridge reverses the arrangement. Small coils move within a fixed magnetic field.
Moving coil cartridges usually produce a much lower electrical output than moving magnet designs. They therefore require more amplification from the phono stage.
Potential advantages include:
Lower moving mass
Improved detail retrieval
Greater subtlety
Better transient response
More precise tracking of groove information
However, moving coil cartridges are normally more expensive and require a compatible phono stage.
4. The Phono Stage
The electrical signal produced by a cartridge is extremely small. It is much weaker than the signal produced by a CD player or music streamer.
Before it can be used by a conventional amplifier input, it must pass through a phono stage.
The phono stage performs two essential jobs:
It amplifies the cartridge signal to approximately line level.
It applies RIAA equalisation.
Why Vinyl Requires Equalisation
When vinyl records are manufactured, the bass frequencies are reduced and the high frequencies are increased.
Reducing the bass allows the record grooves to be narrower, making it possible to fit more music onto each side of the record. Increasing the high frequencies helps improve the signal-to-noise ratio.
During playback, the phono stage reverses this process. It increases the bass and reduces the treble according to the RIAA equalisation curve.
Without correct equalisation, a record would sound thin, bright and lacking in bass.
Built-In and Separate Phono Stages
A phono stage may be located inside:
The turntable
An integrated amplifier
A preamplifier
A separate phono preamplifier
A separate phono stage can offer better power supplies, lower noise, improved components and more adjustment options.
Some phono stages allow the user to adjust:
Gain
Input impedance
Capacitance
Cartridge loading
Correct matching is particularly important with moving coil cartridges.
The Digital Signal Chain
Digital music is stored as numenrical information rather than as a continuously varying physical signal.
A typical digital signal chain is:
Digital source → Digital transport or streamer → DAC → Preamplifier → Power amplifier → Loudspeakers
The digital information must eventually be converted into an analogue electrical signal because amplifiers and loudspeakers operate using analogue signals.
5. Digital Sources
Digital audio may come from:
CDs
Streaming services
Downloaded music files
Network storage
USB drives
Computers
Smartphones
Televisions
Internet radio
Digital audio is commonly described using sample rate and bit depth.
Sample Rate
The sample rate describes how many times per second the original analogue waveform was measured during the recording or conversion process.
CD audio uses a sample rate of 44.1kHz, meaning that the audio was sampled 44,100 times per second.
Higher-resolution formats may use sample rates such as:
48kHz
88.2kHz
96kHz
176.4kHz
192kHz
A higher sample rate allows higher frequencies to be represented, although the quality of the recording, mastering and playback equipment remains extremely important.
Bit Depth
Bit depth determines the number of possible amplitude values available for each sample.
CD audio uses 16-bit resolution. High-resolution audio commonly uses 24-bit resolution.
A greater bit depth provides a wider theoretical dynamic range and allows lower-level information to be represented with greater precision.
However, specifications alone do not guarantee sound quality. A well-recorded and carefully mastered 16-bit CD can sound significantly better than a poorly produced high-resolution file.
6. CD Players and CD Transports
A conventional CD player combines two main sections:
A CD transport that reads the information from the disc.
A DAC that converts the digital information into an analogue signal.
The analogue output of the CD player can then be connected directly to an amplifier.
A dedicated CD transport does not usually contain an analogue output stage. It reads the disc and sends the digital information to an external DAC.
Common digital connections include:
Coaxial
Optical
AES/EBU
USB
HDMI in some systems
Separating the transport and DAC allows each component to be upgraded independently.
The quality of the transport can affect reliability, noise, error correction and the timing of the digital output. However, the final performance also depends heavily on the DAC and the way the digital connection is implemented.
7. Network Streamers
A network streamer retrieves music from a local network or the internet.
It may access:
Music streaming services
Internet radio
Music stored on a computer
Network-attached storage
Music servers
Files stored on USB devices
A streamer can be controlled using a smartphone, tablet, computer or dedicated remote control.
Some streamers include a built-in DAC and provide analogue outputs. Others act as digital transports and must be connected to an external DAC.
An all-in-one streaming amplifier may combine:
Network streamer
DAC
Preamplifier
Power amplifier
This creates a shorter and more convenient signal chain.
A separate streaming system, however, may offer greater flexibility and more opportunities for future upgrades.
8. The Digital-to-Analogue Converter
The DAC is one of the most important stages in a digital Hi-Fi system.
Its job is to convert digital audio data into a continuously varying analogue electrical signal.
The DAC receives digital information representing the music waveform. It reconstructs that waveform and sends the resulting analogue signal to the amplifier.
A DAC contains more than just a conversion chip. Its overall performance is also influenced by:
Clocking
Digital filtering
Power-supply quality
Analogue output stages
Circuit layout
Noise isolation
Input implementation
Two products using the same DAC chip can sound different because the surrounding circuitry and engineering may be completely different.
Where Is the DAC Located?
A DAC may be built into:
A CD player
A music streamer
An integrated amplifier
A preamplifier
A headphone amplifier
A television
An active loudspeaker
A standalone DAC
A separate DAC allows several digital sources to use the same conversion stage.
For example, a CD transport, television and streamer could all be connected to one DAC, which then sends an analogue signal to the amplifier.
9. The Preamplifier
Once the source signal has reached line level, it usually enters a preamplifier.
The preamplifier is the control centre of a traditional Hi-Fi system.
Its main responsibilities include:
Selecting the source
Controlling the listening volume
Providing the correct signal level
Buffering the signal
Sending the signal to the power amplifier
The preamplifier deals with relatively low-level signals. Its job is not to drive the loudspeakers directly.
A good preamplifier should preserve detail, channel separation, timing and dynamics while adding as little noise and distortion as possible.
Volume Control
The volume control adjusts the level of the signal sent to the power amplifier.
Although this sounds simple, volume-control quality can affect:
Channel balance
Noise
Transparency
Low-level detail
Stereo imaging
Different products may use traditional potentiometers, resistor networks, relay-controlled attenuators or digital volume systems.
Analogue and Digital Preamplifiers
A traditional analogue preamplifier accepts line-level analogue signals.
Modern preamplifiers may also include:
Digital inputs
A built-in DAC
Network streaming
A phono stage
Headphone outputs
Room correction
Home cinema bypass
Subwoofer outputs
This can reduce the number of separate components required.
10. Integrated Amplifiers
An integrated amplifier combines a preamplifier and power amplifier in one enclosure.
The signal chain becomes:
Source → Integrated amplifier → Loudspeakers
An integrated amplifier may also include a DAC, phono stage and streamer.
A fully equipped streaming amplifier could therefore contain nearly the entire electronic signal chain:
Streaming service → Streamer → DAC → Preamplifier → Power amplifier
All of these stages may be housed within one component.
Integrated amplifiers offer several advantages:
Fewer boxes
Fewer connecting cables
Easier installation
Lower space requirements
Good value for money
Careful matching between internal sections
Separate preamplifiers and power amplifiers may offer greater flexibility, larger power supplies and easier upgrading, but they are not automatically superior. A well-designed integrated amplifier can outperform a poorly matched collection of separate components.
11. The Power Amplifier
The signal leaving the preamplifier contains the musical information, but it does not have enough power to drive conventional passive loudspeakers.
The power amplifier increases the voltage and current of the signal.
It must provide enough electrical power to move the loudspeaker drivers accurately and maintain control during demanding musical passages.
A power amplifier must respond to rapid changes in the music, from quiet details to powerful bass transients.
Important power-amplifier characteristics include:
Output power
Current delivery
Distortion
Noise
Damping factor
Power-supply capacity
Load stability
Dynamic headroom
Power Ratings
Amplifier power is normally measured in watts per channel into a specified loudspeaker impedance, such as:
50 watts into 8 ohms
100 watts into 8 ohms
200 watts into 4 ohms
A larger wattage figure does not automatically mean better sound.
The amplifier must also remain stable as the loudspeaker impedance changes. Real loudspeakers do not present a fixed load at every frequency.
A speaker described as an 8-ohm model may fall significantly below 8 ohms at certain frequencies. This can demand more current from the amplifier.
Why Amplifier and Speaker Matching Matters
The amplifier must be suitable for:
The loudspeaker’s impedance
The loudspeaker’s sensitivity
The size of the room
The required listening volume
The distance between the listener and speakers
The type of music being played
A highly sensitive loudspeaker may produce high volume levels with only a few watts. A less sensitive model may require considerably more power.
An underpowered amplifier driven beyond its limits can clip the signal. Clipping introduces severe distortion and may damage loudspeaker drive units, particularly tweeters.
A powerful amplifier is not necessarily dangerous when used sensibly. Clean power with adequate headroom can often be safer than an underpowered amplifier being pushed into distortion.
12. Passive and Active Loudspeakers
The next stage of the signal chain depends on whether the system uses passive or active loudspeakers.
Passive Loudspeakers
A passive loudspeaker requires an external power amplifier.
The chain is:
Source → Preamplifier → Power amplifier → Passive crossover → Drive units
The amplified signal travels through speaker cable and enters the loudspeaker’s passive crossover network.
The crossover divides the signal into the correct frequency ranges for the individual drive units.
For example:
Low frequencies are sent to the bass driver.
Midrange frequencies are sent to the midrange driver.
High frequencies are sent to the tweeter.
The crossover uses components such as capacitors, inductors and resistors.
Active Loudspeakers
An active loudspeaker contains its own power amplification.
A true active design normally divides the signal into separate frequency ranges before power amplification.
The chain may be:
Source → Preamplifier or DAC → Active crossover → Individual power amplifiers → Drive units
Each drive unit may have its own dedicated amplifier.
Potential advantages include:
Precise matching between amplifiers and drivers
Greater control over each drive unit
Reduced passive crossover losses
Compact system design
Manufacturer-optimised performance
Some active loudspeakers also contain streaming, DAC and preamplifier functions. In such a system, the loudspeakers may be the only visible audio components.
It is important to distinguish between active and powered speakers. A powered speaker contains amplification, but it may still use a passive crossover after the amplifier. A fully active design uses an active crossover before the power-amplifier stages.
13. Speaker Cables
Speaker cables carry the high-level amplified signal from the power amplifier to passive loudspeakers.
Unlike an interconnect, which carries a low-level signal, speaker cable must handle relatively high current.
The electrical properties of a speaker cable include:
Resistance
Capacitance
Inductance
Resistance is often the most significant consideration, particularly with long cable runs or cables with a small conductor area.
Excessive resistance can reduce the amplifier’s control over the loudspeaker and may slightly alter the frequency response.
For most systems, speaker cables should be:
Suitable for the required length
Properly terminated
Securely connected
Kept away from damage
Appropriate for the amplifier and speaker design
More expensive cable does not automatically guarantee better performance. Construction quality, conductor size, electrical behaviour and system compatibility are more useful considerations than price alone.
Keeping left and right cable lengths reasonably similar is good practice, although small differences are unlikely to create an audible timing problem in a domestic Hi-Fi system.
14. Interconnects
Interconnects carry low-level signals between source components, preamplifiers and power amplifiers.
Common analogue connections include:
RCA
XLR
RCA Connections
RCA is an unbalanced connection.
It uses one conductor for the audio signal and another connection that acts as the return path and shield.
RCA is widely used and performs extremely well in many domestic systems, particularly over shorter cable lengths.
XLR Connections
XLR is commonly associated with balanced audio connections.
A balanced connection normally carries:
A positive version of the signal
An inverted version of the signal
A separate ground or shield
At the receiving component, interference that has entered both signal conductors can be cancelled.
Balanced connections can be useful for:
Long cable runs
Systems with potential electrical interference
Connections between preamplifiers and power amplifiers
Professional audio installations
However, an XLR socket does not automatically guarantee that the internal circuitry is fully balanced. The quality of the equipment’s design is more important than the connector alone.
15. The Loudspeakers
The loudspeakers perform the final electrical-to-mechanical conversion.
The amplifier sends an alternating electrical signal through the voice coil of each drive unit. The voice coil sits within a magnetic field.
As the electrical signal changes, the voice coil moves forwards and backwards. This movement causes the attached diaphragm or cone to move the surrounding air.
These air-pressure variations travel through the room as sound waves.
Different drive units are designed to reproduce different frequency ranges.
Tweeters
Tweeters reproduce high frequencies.
They use lightweight diaphragms that can move rapidly. Common tweeter types include:
Soft dome
Metal dome
Ribbon
Air Motion Transformer
Electrostatic
Horn-loaded designs
Midrange Drivers
Midrange drivers reproduce much of the frequency range containing vocals, guitars, pianos and many other instruments.
Because human hearing is particularly sensitive to the midrange, its clarity and naturalness are extremely important.
Bass Drivers
Bass drivers reproduce lower frequencies and must move considerably more air than tweeters.
Bass performance depends on factors including:
Driver size
Cabinet volume
Cone movement
Amplifier power
Port or sealed-box design
Room placement
Subwoofers
A subwoofer is designed to reproduce the lowest frequencies.
In a two-channel system, a subwoofer can extend bass response beyond the capability of the main loudspeakers. It may also reduce the workload placed on smaller speakers if the system includes suitable bass management.
Successful subwoofer integration requires careful adjustment of:
Crossover frequency
Output level
Phase
Placement
Delay or distance settings
The aim is not to create obviously separate bass. A well-integrated subwoofer should make the entire system sound fuller and more effortless without drawing attention to itself.
16. The Listening Room
The signal chain does not end at the loudspeakers.
The listening room is one of the most influential parts of any Hi-Fi system.
Once sound leaves the speakers, it interacts with:
Walls
Floors
Ceilings
Windows
Furniture
Doorways
The listener’s position
The listener hears a combination of direct sound from the loudspeakers and reflected sound from the room.
Room Modes
Low-frequency sound waves interact with the room dimensions and create room modes.
These can cause certain bass frequencies to become:
Too loud
Too quiet
Slow or boomy
Uneven across different seats
Moving either the loudspeakers or the listening position by a relatively small distance can produce a noticeable change in bass response.
Reflections
Sound reflecting from side walls, floors and ceilings can affect:
Stereo imaging
Vocal focus
Tonal balance
Clarity
Soundstage depth
Some reflections can make a room sound lively and spacious, while excessive reflections may make the presentation bright, confused or unfocused.
Speaker Positioning
Correct speaker positioning can significantly improve performance without changing any equipment.
Important considerations include:
Distance from the rear wall
Distance from side walls
Distance between the speakers
Listening distance
Toe-in angle
Tweeter height
Symmetry within the room
There is no single position that works in every room.
Experimentation, measurement and professional setup can help determine the best arrangement.
17. Room Correction
Room-correction systems use measurements and digital signal processing to reduce some of the problems created by the listening environment.
A measurement microphone records the system’s response at one or more listening positions. The system then creates filters to adjust frequency response, timing and, in some cases, phase behaviour.
Room correction can be particularly effective at low frequencies, where room modes are most noticeable.
However, it should not be viewed as a substitute for:
Good speaker positioning
Suitable room layout
Appropriate acoustic treatment
Correct system setup
Room correction cannot completely remove every acoustic problem. It is generally most successful when used as the final stage of an already well-positioned system.
18. Gain Structure and Signal Levels
Every stage of the signal chain must receive an appropriate signal level.
If a signal is too low, the next component may have to add excessive gain, potentially increasing noise.
If the signal is too high, the input stage may overload and distort.
This relationship is known as gain structure.
Common signal levels include:
Very low cartridge-level signals
Line-level analogue signals
Digital data signals
High-level amplified speaker signals
Different inputs are designed for different signal levels.
A turntable without a built-in phono stage should not normally be connected directly to a standard line input. Its signal will be too low and will not have the necessary RIAA equalisation.
Similarly, a line-level source should not be connected to a conventional phono input. The phono stage may overload because it expects a much smaller signal.
19. Impedance Matching
Impedance describes opposition to the flow of alternating electrical current.
It plays a role at several points in a Hi-Fi signal chain.
Source and Amplifier Connections
A source component normally has a relatively low output impedance, while the amplifier input has a much higher input impedance.
This allows the source to transfer the voltage signal accurately without being excessively loaded by the receiving component.
Preamplifier and Power-Amplifier Matching
The preamplifier’s output impedance should be suitably low in relation to the power amplifier’s input impedance.
A large difference between the two generally helps maintain frequency response and signal integrity.
Amplifier and Loudspeaker Matching
Loudspeaker impedance varies with frequency and can place a demanding load on the power amplifier.
The amplifier must be capable of delivering the required current without instability, overheating or excessive distortion.
This is why amplifier and speaker matching involves more than comparing the nominal impedance printed in a specification.
20. Power Supplies
Every active component in the Hi-Fi chain depends on its power supply.
The power supply converts electricity from the mains into the voltages required by the audio circuitry.
A well-designed power supply should provide stable, low-noise power while responding quickly to changes in demand.
Power-supply quality can influence:
Noise levels
Dynamic range
Bass control
Channel separation
Transient performance
Maximum output
Large power transformers and capacitors are often associated with powerful amplifiers, but physical size alone does not determine quality. Circuit design, regulation, grounding and layout are also important.
21. The Weakest-Link Principle
A Hi-Fi system should be considered as a complete system rather than as a collection of unrelated products.
A highly revealing loudspeaker may expose limitations in the source or amplifier. An excellent source may not reach its full potential through an unsuitable amplifier. Powerful amplification cannot correct poor speaker positioning or severe room problems.
This does not mean that every component must cost the same amount.
Instead, the system should be balanced in terms of:
Quality
Compatibility
Capability
Room suitability
Upgrade potential
The best system is not necessarily the one with the most expensive individual component. It is the one in which every stage works effectively with the next.
22. Common Hi-Fi Signal Chains
Vinyl System with an Integrated Amplifier
Record → Turntable → Cartridge → Phono stage → Integrated amplifier → Passive loudspeakers
The phono stage may be located inside the turntable or integrated amplifier.
Vinyl System with Separate Amplification
Record → Turntable → Cartridge → Separate phono stage → Preamplifier → Power amplifier → Passive loudspeakers
This arrangement allows each stage to be selected and upgraded independently.
CD-Based System
CD → CD player and internal DAC → Integrated amplifier → Passive loudspeakers
Alternatively:
CD → CD transport → External DAC → Preamplifier → Power amplifier → Passive loudspeakers
Streaming System
Streaming service → Network streamer → DAC → Integrated amplifier → Passive loudspeakers
The streamer and DAC may be housed in the same component.
Streaming Amplifier System
Streaming service → Streaming integrated amplifier → Passive loudspeakers
This is a simple and compact modern Hi-Fi system.
Active-Speaker System
Streaming service → Streamer or preamplifier → Active loudspeakers
Some active speakers contain the streamer, DAC, preamplifier and power amplifiers, reducing the system to one pair of speakers and a control application.
23. Does a Shorter Signal Chain Sound Better?
A shorter signal chain can offer practical advantages:
Fewer cables
Fewer connections
Less equipment
Simpler setup
Lower space requirements
However, fewer components do not automatically mean better sound.
An all-in-one product may contain several carefully designed stages within one chassis. A separates system may offer better isolation, larger power supplies and greater flexibility.
The quality of the design matters more than the number of boxes.
The best approach depends on the listener’s priorities. Some people value simplicity and convenience, while others prefer the flexibility and upgrade potential of separate components.
24. Where Should You Upgrade First?
The most effective upgrade depends on the existing system.
Before replacing equipment, consider:
Speaker positioning: Small adjustments can greatly improve bass and stereo imaging.
Listening position: Moving the seat can reduce severe room-mode problems.
System setup: Check cartridge alignment, tracking force, connections and amplifier settings.
Source quality: Use well-recorded music and the best available source output.
Component matching: Make sure the amplifier can drive the speakers correctly.
Room acoustics: Address excessive reflections or uncontrolled bass.
Equipment upgrades: Replace the component that is genuinely limiting performance.
Upgrading the most expensive-looking component is not always the best use of the budget.
A professional demonstration can be extremely useful because it allows individual changes to be assessed within a complete system.
Conclusion
The Hi-Fi signal chain begins with the musical information and ends when sound reaches the listener.
Every stage has an important role:
The source retrieves the music.
The cartridge or digital transport extracts the information.
The phono stage or DAC prepares the signal.
The preamplifier controls it.
The power amplifier supplies the energy.
The loudspeakers convert electricity into sound.
The room shapes what the listener ultimately hears.
The best results are achieved when these stages are carefully matched and correctly set up.
A great Hi-Fi system does not simply reproduce individual frequencies or impressive bass. It preserves the relationships within the music: its timing, dynamics, texture, scale and emotion.
By understanding the signal chain, you can make better equipment choices, identify genuine system limitations and create a Hi-Fi system in which every component works together to bring the recording to life.
