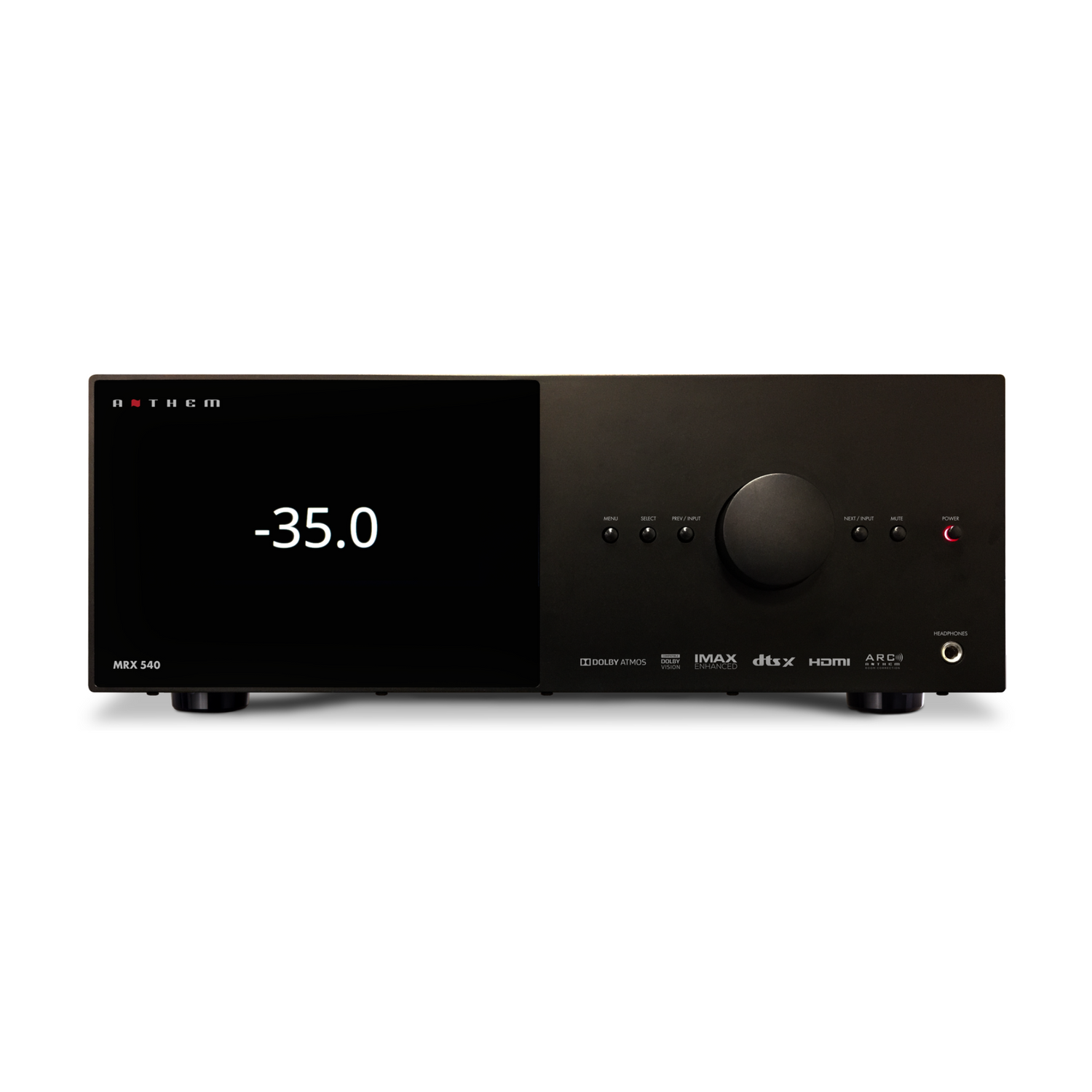

Anthem MRX540 Home Cinema Amplifier

by Anthem
SKU 76377
Original price £2,095.00 - Original price £2,095.00
Original price
£2,095.00 - £2,095.00
Current price £2,095.00


Pre-order for our first delivery

5.2 Integrated Home Cinema Amplifier
Oustanding performance level
ARC Room Calibration

Anthem’s MRX A/V Receivers are about maximizing performance for the money.


Building on the feature set of our previous models, we’ve added the newest version of ARC Genesis, a redesigned and more accurate calibration microphone, Anthem Web User Interface, integrated streaming support, object-oriented audio codecs with support for up to 5.2 channels and the clean power delivery Anthem is known for with up to 140 watts per channel.


The MRX540 is feature-packed with Dolby Vision, Dolby Atmos (via pre-output), DTS:X and Imax Enhanced as standard. Demonstrating that Anthem is at the forefront of specification and committed to delivering you the very best performance possible!


Streaming Audio is also superbly catered for with Airplay, Gooogle ChromeCast and Bluetooth as standard with future updates for Spotify Connect and Roon coming shortly.


Set-up is very simple and is done via the Anthem Web interface, simply connect the MRX to your network and access a comprehensive and easy to understand menu to allow you to tailor the amplifier to your individual needs.


MRX Series Receiver channels can be assigned in many ways. Unused amplifier channels can be re-assigned to Bi-Amplify demanding front speakers, power surrounds, presence speakers, or a second zone (Available on MRX 1140 and MRX 740).


ARC Genesis is the newest software that works with many ARC enabled Anthem or Paradigm product. New features include support for both Mac and Windows; new target curve adjustment options including deep bass and high frequencies; improved algorithms and much more.


ARC Genesis is backwards compatible with many Anthem and Paradigm products that are ARC or PBK enabled. For a complete list, please visit This third generation of Anthem Room Correction software represents a significant leap forward in room correction with the most comprehensive set of features yet. ARC Genesis transforms the audio performance of compatible speakers or electronics while retaining the unique character of any room. Proprietary Digital Signal Processing (DSP) software works in tandem with a calibrated microphone (provided with many ARC and PBK enabled products) to provide astonishing improvements to the sound you hear.

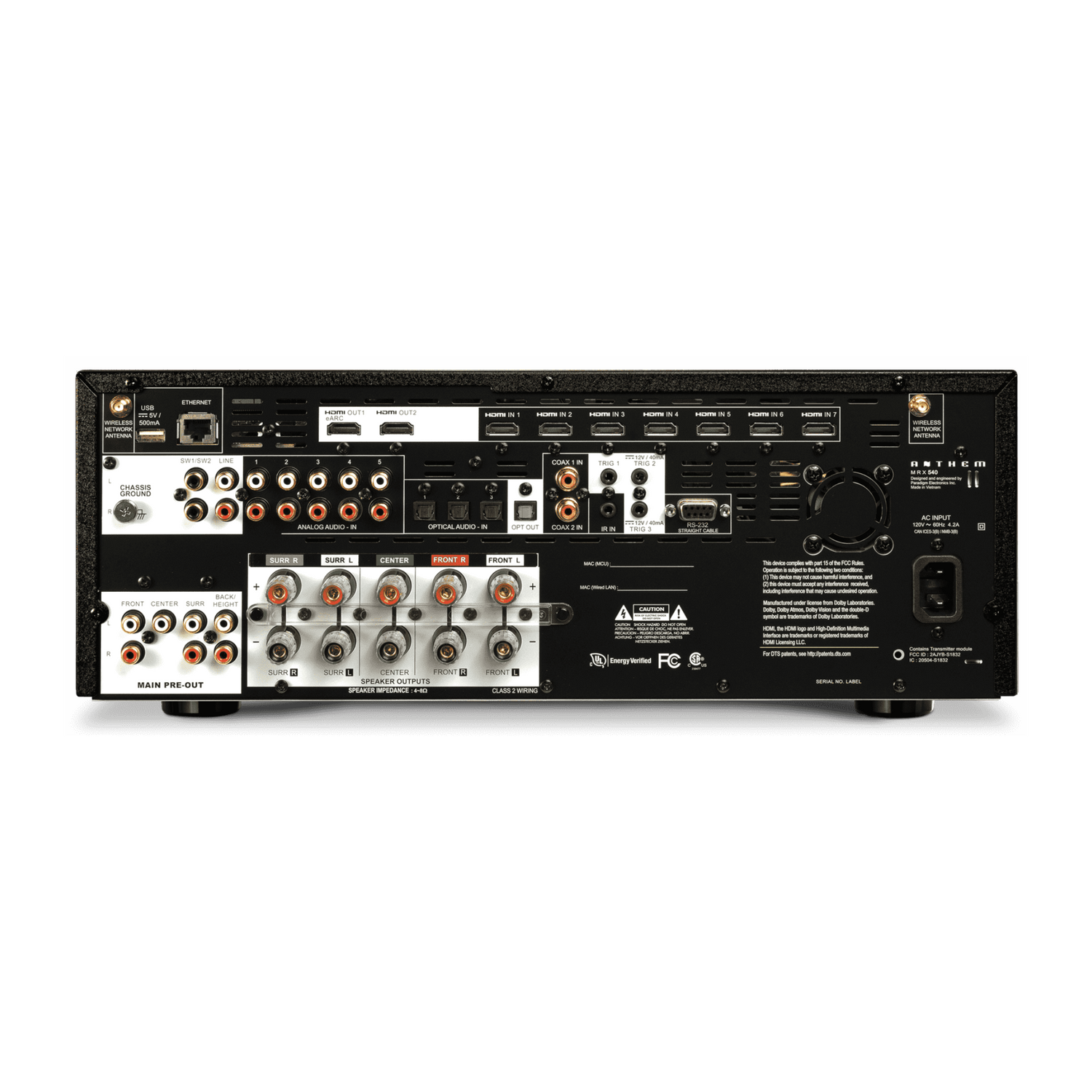

Apple AirPlay Yes
Remote Control yes
Coaxial Inputs 2
Bluetooth Yes
Analogue RCA Inputs 5
Wi-Fi Built In yes
USB Yes - 1
Weight (KG) NA
Component No
Internet Radio Services Yes
Dimensions WxDxH (mm) 432 x 382 x 166
Dolby Atmos Yes
Dolby ProLogic Surround Dolby Surround
HDMI Audio Yes
Multi Channel Input No
Coaxial Outputs No
Optical Outputs 1
Multiroom Yes - Zone 2 Active/Passive
HDMI Zone Out Yes
HDMI 7 in/3 out
Channels 9.2 - configurable
Power Output - Watts per CH 140 x 5 (Main/Effect Speakers)
Tuner Radio No
Phono Input No
Optical Digital Inputs 3
USB Input Yes - 1
XLR Inputs No
Power Amp In No
Audio Outputs Yes
Sub Output Yes - 2 (Independant)
Headphone Output Yes
Pre Output Yes - 9.2
