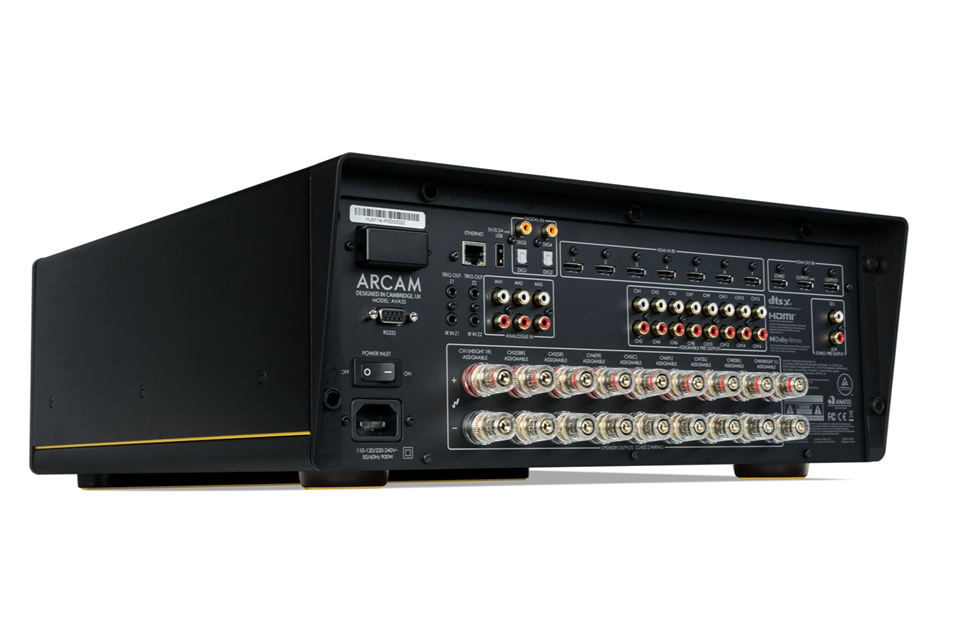

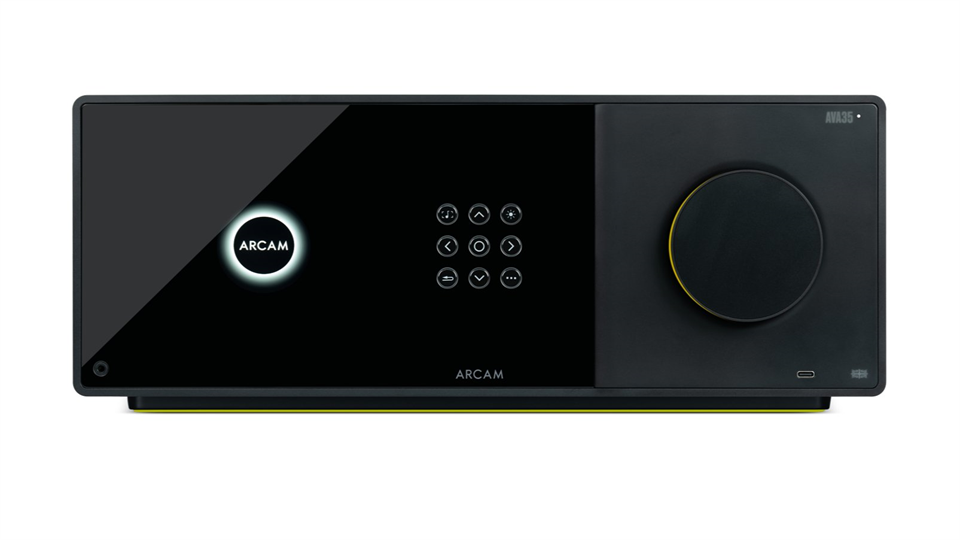

ARCAM AVRA35 8K SURROUND SOUND AMPLIFIER

High power ARCAM Class G Amplification with 9x 100W Power Output into 8O.

Dolby Atmos - Bring even the smallest details to life with sound that moves in all directions.

DTS:X and IMAX Enhanced, place sound where it would occur naturally in space, creating the most lifelike, multi-dimensional audio experience ever.

AURO-3D A revolutionary way of delivering audio that wraps you in a cocoon of life-like sound.

Matrix Channel Assignment for the flexibility to assign up to 16-channels for the best performance of your system

Dirac Live Room Correction for exceptional, calibrated audio in any room - upgrade with Dirac Live Bass Control and Dirac Live Active Room Treatment

Back-lit, Bluetooth remote control for continuous out-of-sight control

Works with the new ARCAM Radia app for setup, control, Internet Radio, Podcasts and UPnP playback from iOS, Android and Windows devices and PCs.

Supports Apple Airplay, Google Cast, Spotify Connect, Tidal Connect and Qobuz Connect Works with Apple and Android devices, with direct connection from lossless music services

Bluetooth with Snapdragon Sound and Auracast for the best wireless sound with the most convenience

Large High-resolution display for clearly visible status and metadata from the comfort of your main listening position

Plastic free packaging for easy disposal of natural materials

Tech Specs

Decoding / encoding
- Maximum channel count: 12
- Reassignable channels: Front, surround back, height channels
- Dolby formats: Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround
- DTS formats: DTS:X, DTS-HD Master Audio, DTS Neural:X, DTS Virtual:X, MPEG-H

HDMI
- Inputs / outputs: 7 / 2
- HDMI / HDCP versions: 2.1a / 2.3
- Resolution support: Up to 8K / 60 Hz or 4K / 120 Hz
- Supported dynamic range profiles: HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG
- Supported HDMI features: Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC / ARC (Zone 1, Output 1)
- On screen display: Supported

Streaming
- Control apps: ARCAM Radia Control
- Streaming services: Spotify Connect, TIDAL Connect, Qobuz Connect, Roon Ready
- Wireless services: Apple AirPlay, Google Cast
- Supported services: Internet radio, podcasts, UPnP
- Supported hi-res formats: FLAC, WAV (LPCM), MQA, AAC, ALAC, AIFF, MP3, OGG, WMA
- Supported bit depths: 16-bit, 24-bit
- Supported sample rates: Up to 192 kHz
- Gapless playback: Supported
- Frequency response: 20 Hz – 20 kHz ±0.05 dB

Digital inputs
- Coaxial inputs: 2
- Optical (Toslink) inputs: 2
- Supported sample rates (coaxial): 192, 176.4, 96, 88.2, 48, 44.1 kHz
- Supported sample rates (optical): 96, 88.2, 48, 44.1 kHz
- Supported bit depths: 16-bit, 24-bit
- Frequency response: 20 Hz – 20 kHz ±0.2 dB
- Signal-to-noise ratio: 100 dB (A-weighted, ref. 50 W, 0 dBFS)

Analogue inputs
- Number of inputs: 3 (RCA pairs)
- Signal-to-noise ratio: 100 dB (A-weighted, ref. 50 W, 1 V input)
- Frequency response: 20 Hz – 20 kHz ±0.2 dB

Preamplifier outputs
- Number of outputs (XLR / RCA): 0 / 16
- Single-ended output level: 2 V RMS per channel
- THD+N (20 Hz – 20 kHz): –100 dB

Amplification
- Amplifier channels: 9
- Amplifier class: Class AB
- Continuous power output (0.5% THD):
- 8 ohms, 20 Hz – 20 kHz, 2 channels driven: 125 W
- 4 ohms, 1 kHz, 2 channels driven: 200 W
- 8 ohms, 20 Hz – 20 kHz, 9 channels driven: 100 W
- 4 ohms, 1 kHz, 9 channels driven: 120 W
- Harmonic distortion: 0.05% (80% power, 8 ohms, 1 kHz)

General
- Mains voltage: 100–120 V or 220–240 V, 50–60 Hz
- Maximum power consumption: 900 W
- Maximum thermal dissipation: 3070 BTU/hour
- Idle power consumption: 59 W
- Idle thermal dissipation: 200 BTU/hour
- Standby power consumption (default / low power): 2 W / 0.3 W
- Dimensions (W × D × H, including speaker terminals and feet): 432 × 407.4 × 170 mm
- Net weight: 10 kg
- Packed weight: 15.7 kg

Supplied accessories
- Region-specific power cord(s)
- Rear panel cowl
- Remote control with 2 × AAA batteries
- Measurement microphone
- 5 m USB cable
- Quick start guide
- Important safety instructions

Wireless specifications
- Bluetooth version: 5.4
- Bluetooth profiles: A2DP sink/source, AVRCP, Snapdragon Sound, AAC, LE Audio, Auracast, GATT, VCP, MCP, BAP, CAP
- Bluetooth transmitter frequency range: 2.402 MHz – 2.480 MHz
- Bluetooth transmitter power: < 10.73 dBm
- Wi-Fi standard: IEEE 802.11 a/b/g/n/ac (2.4 GHz / 5 GHz)
- 2.4 GHz Wi-Fi frequency range: 2.400 GHz – 2.4835 GHz
- 2.4 GHz Wi-Fi transmitter power: < 17.4 dBm
- 5 GHz Wi-Fi frequency ranges: 5.15–5.35 GHz, 5.47–5.725 GHz, 5.725–5.875 GHz
- 5 GHz Wi-Fi transmitter power: < 19.26 dBm
