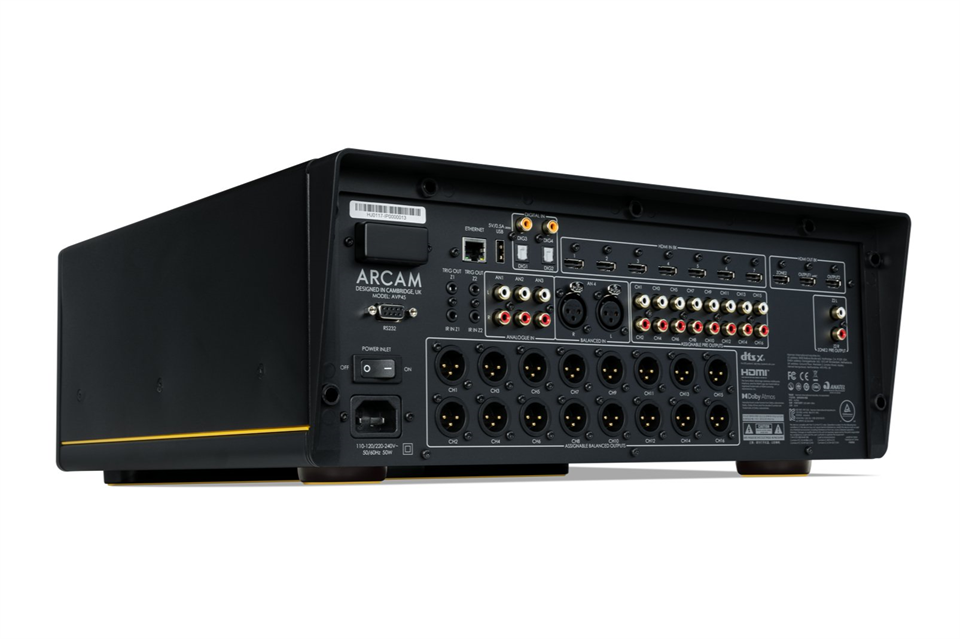

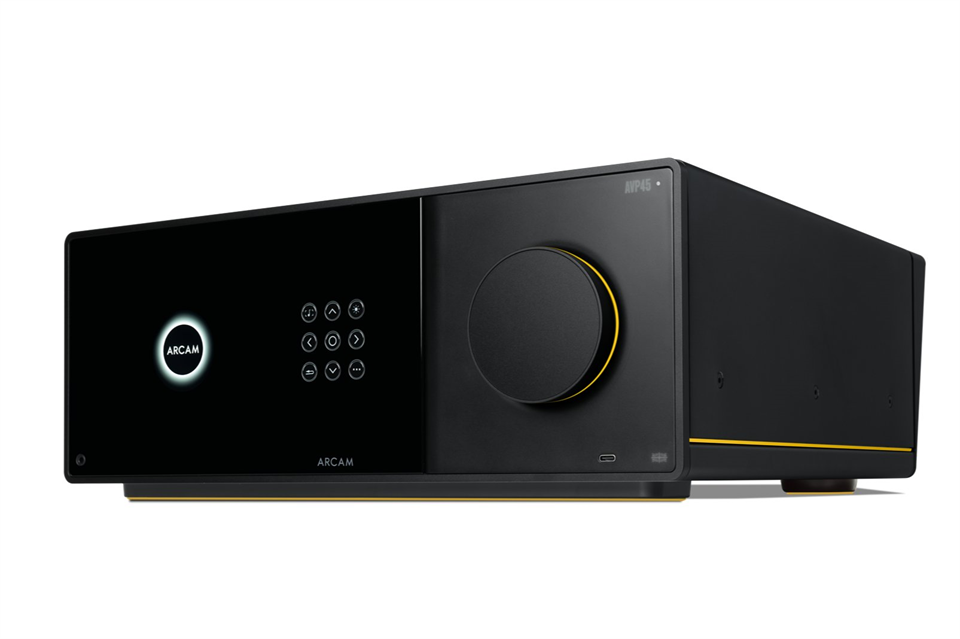

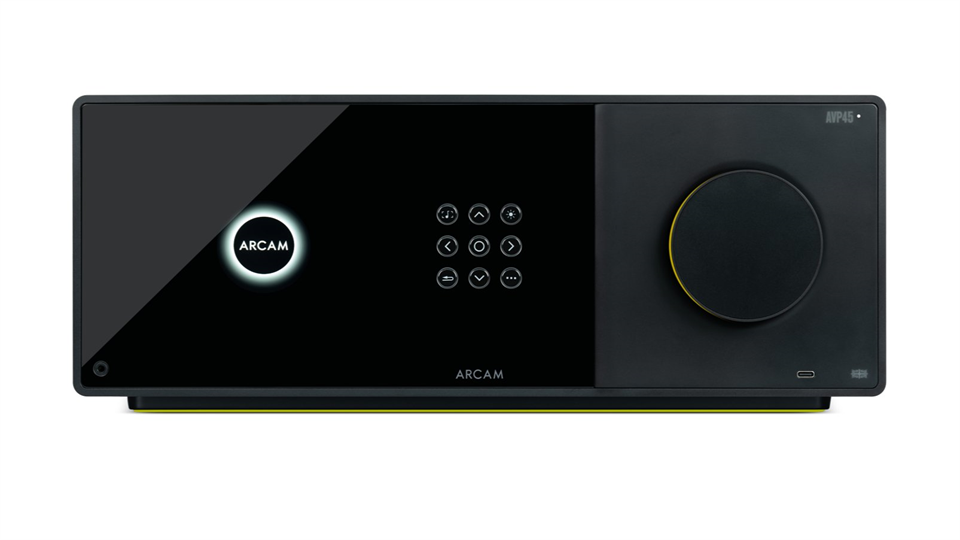

ARCAM AVRP45 8K AV PROCESSOR

For those who seek the biggest and best in home cinema, the AVP45 is the definitive hub for uncompromised performance. This is not just an AV processor—it’s the command centre for the most dynamic and flexible home theatre systems imaginable.

Engineered in Cambridge, UK, the AVP45 delivers 16 channels of immersive audio decoding and processing, powered by the same high-performance DAC architecture found in ARCAM’s flagship stereo hi-fi systems. Every detail, every nuance, every cinematic moment is reproduced with breathtaking clarity and precision.

The AVP45 includes balanced audio outputs for all channels, ensuring pristine signal integrity when paired with external amplification. Combine it with the ARCAM PA9 Class G power amplifier for a system that sets the standard for power, control, and musicality.

Flexibility is at the core of the AVP45. With Matrix Channel Assignment, you have complete freedom to configure your system exactly as you envision—whether for movies, gaming, or sport. Dolby Atmos, DTS:X, IMAX Enhanced and AURO-3D processing, and Dirac Live room correction guarantee a truly world-class experience tailored to your space.

And with the same intuitive interface, vibrant 6.5" colour display, and Radia App found across the Radia AV Series, control is effortless—because the experience should be as seamless as the sound.

• 16-channel Hi-res Audio Processor for a wide selection of immersive speaker configurations, all with exceptional sound quality.

• Dolby Atmos - Bring even the smallest details to life with sound that moves in all directions.

• DTS:X and IMAX Enhanced, place sound where it would occur naturally in space, creating the most lifelike, multi-dimensional audio experience ever.

• AURO-3D A revolutionary way of delivering audio that wraps you in a cocoon of life-like sound.

• Matrix Channel Assignment for the flexibility to assign up to 16-channels for the best performance of your system

• Dirac Live Room Correction for exceptional, calibrated audio in any room - upgrade with Dirac Live Bass Control and Dirac Live Active Room Treatment

• Back-lit, Bluetooth remote control for continuous out-of-sight control

• Works with the new ARCAM Radia app for setup, control, Internet Radio, Podcasts and UPnP playback from iOS, Android and Windows devices and PCs.

• Supports Apple Airplay, Google Cast, Spotify Connect, Tidal Connect and Qobuz Connect Works with Apple and Android devices, with direct connection from lossless music services

• Bluetooth with Snapdragon Sound and Auracast for the best wireless sound with the most convenience

• Large High-resolution display for clearly visible status and metadata from the comfort of your main listening position

• Plastic free packaging for easy disposal of natural materials

• Decoding / Encoding

  Maximum Channel Count: 16
  Reassignable Channels:
  All channels (Subwoofers into CH4 & 11-16 only)
  Supported Decoding and Encoding:
  Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround
  DTS:X, DTS HD Master, DTS Neural:X, DTS Virtual:X
  MPEG H
  IMAX Enhanced
  AURO-3D, AURO-2D

  HDMI

  Inputs/Outputs: 7/3 (Zone 1 outputs = 2, Zone 2 outputs = 1)
  HDMI/HDCP Versions: 2.1a/2.3
  Resolution support (resolution/framerate):
  Up to 8K/60Hz or 4K/120Hz
  Supported Dynamic Range Profiles:
  HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG
  Supported HDMI features:
  Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC/ARC (Zone 1, Output 1) On Screen Display

  Streaming

  Works with (apps):
  ARCAM Radia Control, Spotify Connect, Tidal Connect, Qobuz Connect, Roon (Ready)
  Works with (services):
  Apple Airplay, Google Cast ARCAM Radia supported services, Internet Radio, Podcasts, UPnP
  Supported Hi-res media:
  FLAC, WAV (LPCM), MQA, AAC, ALAC, AIFF, MP3, OGG, WMA
  Gapless Playback Supported
  Supported Hi-res Bit depth: 16, 24
  Supported samples rates (kHz): Up to 192 kHz
  Frequency response: 20Hz—20kHz ± 0.05dB

  Digital Inputs

  Number of inputs (Coaxial/Toslink): 2/2
  Supported Sample Rates (kHz):
  Coaxial (RCA): 192, 176.4, 96, 88.2, 48, 44.1
  Optical (Toslink): 96, 88.2, 48, 44.1
  Bit depths (bit) (Coaxial/Toslink): 24, 16
  Frequency response: 20Hz—20kHz ± 0.2dB
  Signal/noise ratio (A-wtd, ref. 50W, 0dBFS): 100dB

  Analogue Inputs

  Number of inputs: 3 (RCA pairs)
  Signal/noise ratio (A-wtd, ref. 50W, 1V input): 100dB
  Frequency response: 20Hz—20kHz ± 0.2dB

  Preamplifier Outputs

  Number of Outputs RCA/XLR: 16/16
  Balanced (XLR) peak output level per channel: 5V RMS*
  Single-ended (RCA) peak output level per channel: 2V RMS
  THD+N (20 Hz to 20 kHz): –100dB

  General

  Mains voltage (V/Hz): 100–120V or 220–240V, 50–60Hz
  Max Power consumption: 50W
  Max Thermal dissipation: 170 BTU/hour
  Idle Power consumption: 35W
  Idle Thermal dissipation: 120 BTU/hour
  Standby Power consumption (Default/Low Power): 2W/0.4W
  Dimensions W x D (including speaker terminals) x H (including feet): W432 x D399 x H170mm
  Weight (net): 9.4kg
  Weight (packed): 15kg

  Supplied accessories:

  Region Specific Power Cord(s)
  Rear panel cowl
  Remote control with 2 x AAA batteries
  Measurement Microphone
  5m USB Cable
  Quick Start Guide
  Important Safety Instructions

  Wireless Specifications

  Bluetooth Version: 5.4
  Bluetooth Profiles: A2DP Sink/Source, AVRCP, Snapdragon Sound, AAC, LE Audio, Auracast, GATT, VCP, MCP, BAP, CAP
  Bluetooth Transmitter Frequency Range and Power:
  2,402 MHz to 2,480 MHz <Max 10.73dBm
  Wi-Fi Network: IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
  2.4G Wi-Fi Transmitter Frequency Range and Power:
  2.400 GHz to 2.4835 GHz < Max 17.4dBm
  5G Wi-Fi Transmitter Frequency Range and Power:
  5.15-5.35GHz, 5.47-5.725GHz, 5.725-5.875GHz, < Max 19.26dBm
