Description
The ARCAM SA45 is the all-in-one streaming system for the dedicated music lover.
It includes hard-won technologies for preserving the most delicate sounds and
reproducing music with all its subtleties, nuances and excitement intact. Expertly
crafted in Cambridge UK, it is born of our best ever amplifier, the ARCAM A49, with
fully balanced digital and analogue audio paths,
Exquisite sound quality has been achieved through thoughtful engineering of a new
6-layer digital audio and streaming platform which includes a ground plane through
the entire board to keep noise and interference away from the sensitive audio
components. These components include the latest Hyperstream iV DAC topology
from ESS, in a balanced configuration with advanced Jitter elimination. Sound quality
is enhanced further with a new linear toroidal transformer power supply design that
drives the entirety of the internal operation with lower noise.
The ARCAM SA45 is the ultimate high resolution audio solution. With outputs for
subwoofers, along with Dirac Live Room Correction, the SA45 has the flexibility
to deliver exceptional sound, in any room, with your choice of speakers. Our 5th
generation Class G amplifier design is meticulously crafted so you can expect the
best sound quality and dynamics from what has always been a better sounding,
and more efficient Class of amplifier. New components and materials have been
painstakingly analysed and reviewed to ensure uncompromising sound performance.

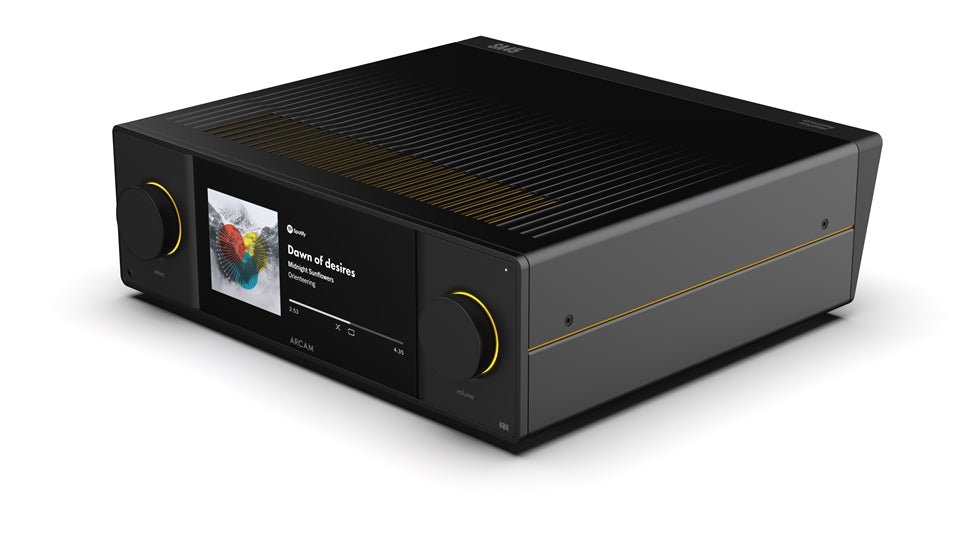

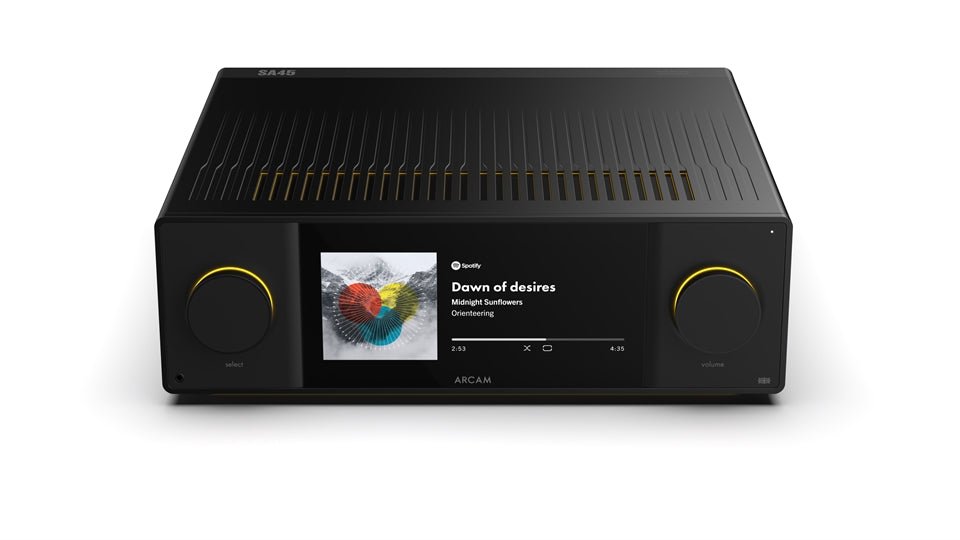

Up front, the SA45 features a large, bonded 8.8” high-resolution display to show
album artwork and metadata. Connecting the SA45 to your home network with Wi
Fi is quick and straightforward with our ARCAM Radia App. Once connected, enjoy
instant playback using Apple Airplay, Chromecast, Spotify Connect, Tidal Connect,
and Roon.
www.arcam.co.uk
Features
• All new, ultra High-Resolution
Streaming Platform to deliver on sound
quality and user experience
• ARCAM Class G Amplification with 2x
180W of ultra-low distortion power
• Balanced analogue and digital audio
paths
• MM & MC Phono inputs
• HDMI eARC input
• Dual Subwoofer outputs and Dirac Live
Room Correction
• High-resolution display for clealy visible
album artwork and metadata
• Supports Apple Airplay, Chromecast,
Spotify Connect and Tidal Connect
• Setup with ARCAM Radia App for
presets, Internet Radio and Podcasts
• Supports up to 32 bit / 768 kHz Hi-res
audio
• Roon Ready (after launch)
Continuous power output (0.5% THD), per channel
2 channels driven, 20Hz ‑ 20kHz, 8Ω 180W
2 channels driven, 1kHz, 4Ω 300W
Harmonic distortion, 80% power, 8Ω at 1kHz 0.002%
Analogue Inputs
Number of inputs 3x RCA pairs + 1 XLR pair
Phono Inputs MM and MC
Frequency response 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A‑wtd, ref. 50W, 1V input) 106dB
Digital Inputs
Supported Streaming media: FLAC, WAV (LPCM), AAC, ALAC, AIFF, DSD (up to 1024), MP3, MP4, OGG, WMA
Supported Streaming Bit depth: 16, 24, 32
Supported Streaming sample rates (kHz): Up to 768 kHz
Gapless Playback: Yes
Digital Audio Inputs 1x HDMI ARC, 2x Coaxial (RCA), 2x Optical (Toslink)
Supported Digital input Bit depth: 16, 24
Supported Digital input sample rates (kHz): Up to 192 kHz
Frequency response (filter 1) 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A‑wtd, ref. 50W, 0dBFS) 110dB
Wireless Specifications
Bluetooth Profile 5.2; A2DP Sink/Source, AVRCP, BLE, aptX, aptX HD, aptX Adaptive, AAC
Bluetooth Transmitter Frequency and Power 2,402 MHz to 2,480 MHz: <13dBm
Wi‑Fi Network IEEE 8002.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi‑Fi Transmitter Frequency Range and Power 2400‑2483.5 MHz (USA 11 Channels, Europe and Others 13 Channels): <20dBm
5G Wi‑Fi Transmitter Frequency Range and Power 5150‑5250 MHz <23dBm, 5250‑5350 MHz & 5470‑5725 MHz <20dBm, 5725‑5850
MHz <14dBm
General
Mains voltage 100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 1500W
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 143mm
Weight (net) 17 kg
Weight (packed) 20 kg
Supplied accessories Mains lead(s)
Remote control with 2 x AAA batteries
Measurement Microphone
5m USB Cable
Quick Start Guide
