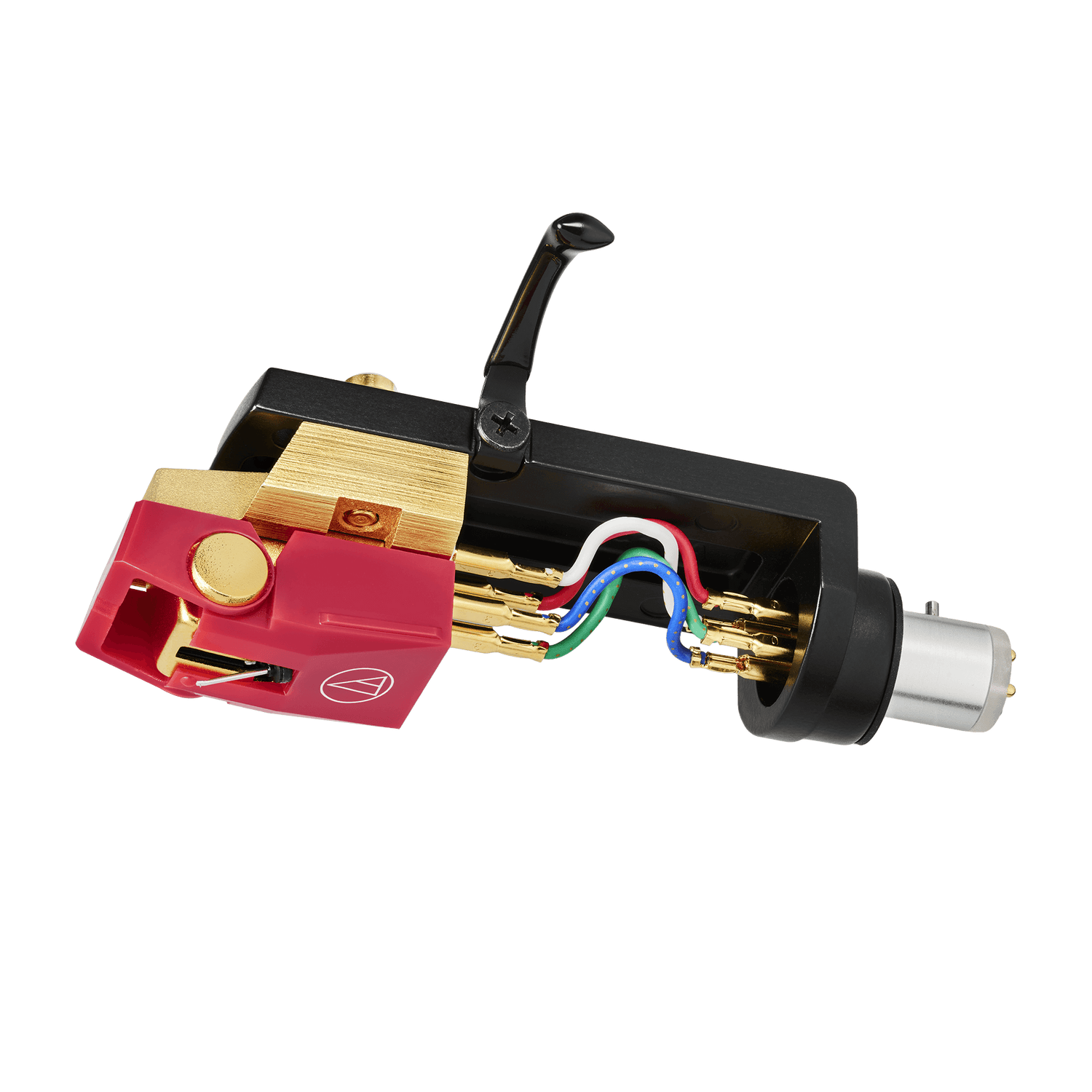

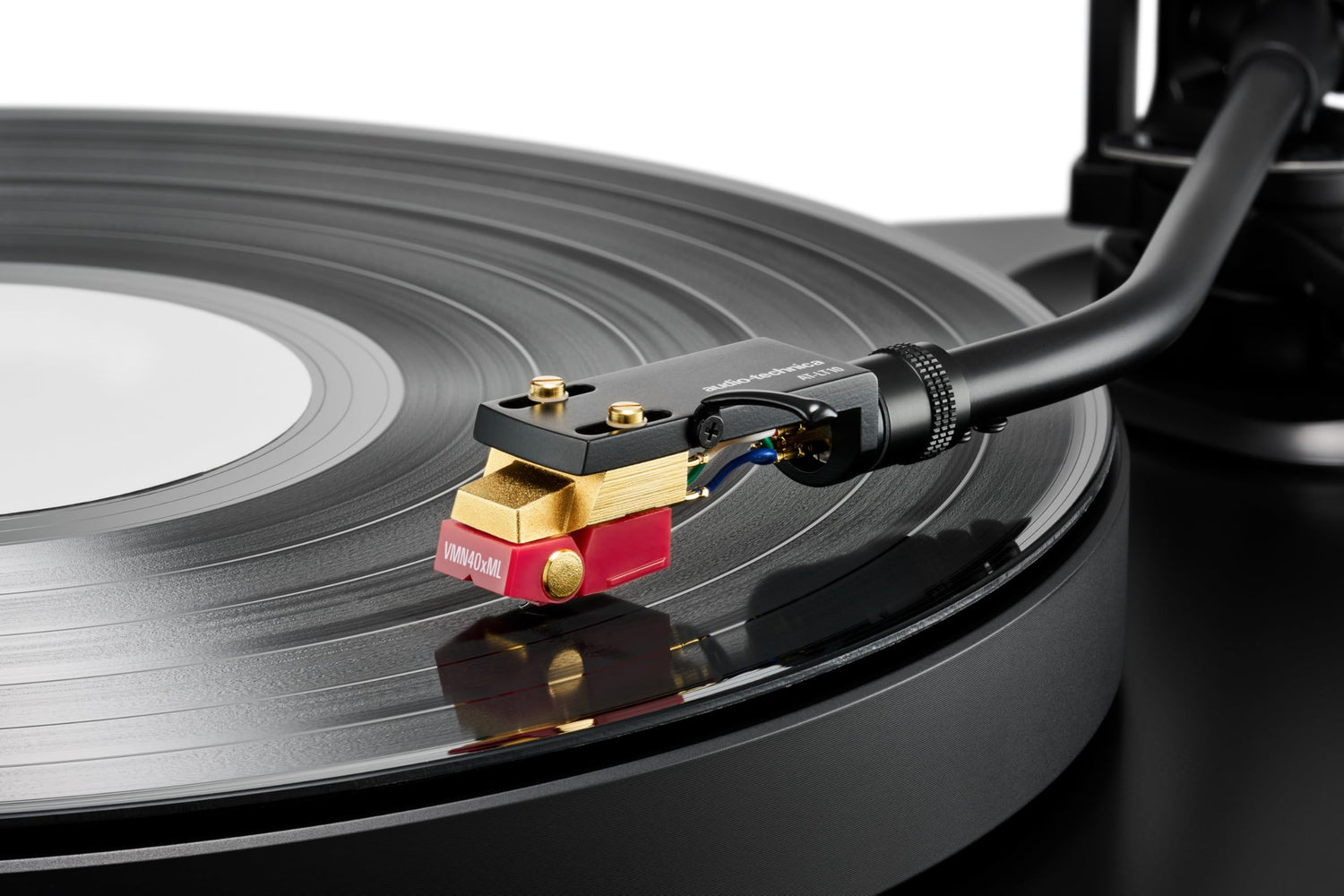

Audio Technica AT-VM740xML/H Dual Moving Magnet Stereo Cartridge with LT10 Headshell

  • More detail from vinylMicroLine stylus
  • Ready to fitPre-mounted on AT-LT10 headshell
  • Clean stereoDual moving magnet design
  • UpgradedLatest VMx series materials
  • Long stylus lifeMicroLine profile
  • Quick installUniversal half-inch mount

Buy online with confidence

79 years of hi-fi expertise · established 1947

Genuine UK stock with full manufacturer warranty, free next day delivery over £50 and 14-day returns. Need help? Our experts are on 0115 975 8613.

£280.00
Available to order – call 0115 975 8613 for the latest delivery date
FREE next day delivery · Saturday delivery available in the basket
Click & collect from our Nottingham showroom (NG7 4EX)
Manufacturer warranty
Genuine UK stock, full cover
14-day returns
Hassle-free if unused
Secure checkout
All major cards accepted
Hi-fi experts since 1947
Real advice, before and after you buy

Questions? Call our experts on 0115 975 8613 or send a message.

Audio Technica  |  SKU: 129450

Why you'll love the Audio Technica AT-VM740xML/H

The benefits that matter, at a glance.

Aluminium Tapered Cantilever

Crafted with an aluminium tapered cantilever, this cartridge ensures both strength and precision for optimal performance.

Para-toroidal Coils Improve Generating Efficiency

Enhanced by para-toroidal coils, this cartridge maximises generating efficiency, resulting in clear and accurate audio reproduction.

Centre Shield Plate Reduces Crosstalk

A centre shield plate strategically placed between the left and right channels effectively minimises crosstalk, delivering clean and precise sound separation.

Durable Low Resonance Polymer Housing

Housed in a durable low resonance polymer body, this cartridge offers resilience and stability while minimising unwanted vibrations for superior audio quality.

Overview

The Audio-Technica AT-VM740xML/H pairs the AT-VM740xML dual moving magnet cartridge with the AT-LT10 universal headshell, ready to fit for warmer, more detailed vinyl playback.

Why you'll love it

  • AT-VM740xML dual moving magnet cartridge from the updated VMx series
  • MicroLine stylus
  • Pre-mounted on the AT-LT10 half-inch mount headshell

Perfect for

Upgrading a detachable-headshell turntable.

Why buy from Nottingham HiFi?

Hi-fi experts since 1947. Genuine UK stock with full manufacturer warranty, free next day delivery on orders over £50 (order by 3pm), 14-day returns and real advice on 0115 975 8613.

Specifications

  • Type - VM
  • Frequency response - 20 to 25,000 Hz
  • Output voltage - 3.2 mV (1 kHz, 5 cm/sec.)
  • Channel separation - 25 dB (1 kHz)
  • Output balance - 1.0 dB (1 kHz)
  • Tracking force - 1.8 to 2.2 g (2.0 g standard)
  • Coil impedance - 3.2 k ohms (1 kHz)
  • DC resistance - 750 ohms
  • Recommended load impedance - 47 k ohms
  • Recommended load capacitance - 150 to 250 pF
  • Coil inductance - 480 mH (1 kHz)
  • Static compliance - 20 × 10-6 cm/dyne
  • Dynamic compliance - 7 × 10-6 cm/dyne (100 Hz)
  • Stylus - Nude Microlinear
  • Stylus curvature radius - 2.2 × 0.12 mil
  • Cantilever - Aluminum tapered pipe
  • Vertical tracking angle - 20°
  • Dimensions - 68.4 mm (2.7”) × 18.5 mm (0.73”) × 21.5 mm (0.85”) (H × W × D)
  • Weight - 20.3 g (0.72 oz)

In the box

  • Audio Technica VM540ML/H Moving Magnet Cartridge with HS10 Headshell
  • Cartridge installation screws 5mm ×2 and 10mm ×2
  • Washer ×2
  • Hexagon nut ×2

Not sure what you need?

Tell us about your room and kit, and our team will build you a matched system, at no extra cost.

Call 0115 975 8613 →

Free next day delivery

Free next day delivery on orders over £50 – order by 3pm. Saturday delivery available in the basket.

Genuine UK stock

Every product comes with the full UK manufacturer warranty.

14-day returns

Changed your mind? Send it back unused within 14 days.

Experts since 1947

Real advice before and after you buy. Call 0115 975 8613.

Audio Technica AT-VM740xML/H – frequently asked questions

Which turntables suit the AT-VM740xML/H?

Turntables with a detachable headshell (SME-type bayonet), such as Technics SL-1200 style decks.

Is it ready to use?

Yes, it is pre-mounted on the AT-LT10 headshell for quick installation.

What is a MicroLine stylus?

A fine-profile stylus that traces the groove more accurately for more detail and lower distortion.

Do I need a moving coil phono stage?

No, it works with any standard moving magnet phono input.

How quickly can I get the Audio Technica AT-VM740xML/H?

It is available to order. Call our team on 0115 975 8613 for the latest delivery date. Delivery is free on UK orders over £50.

What warranty does the Audio Technica AT-VM740xML/H come with?

It is genuine UK stock and comes with the full Audio Technica UK manufacturer warranty, so you are fully covered.

Can I return the Audio Technica AT-VM740xML/H if I change my mind?

Yes. You can return it unused in its original packaging within 14 days of delivery. See our returns policy.

Still got a question about the Audio Technica AT-VM740xML/H? Call 0115 975 8613 or send us a message.
