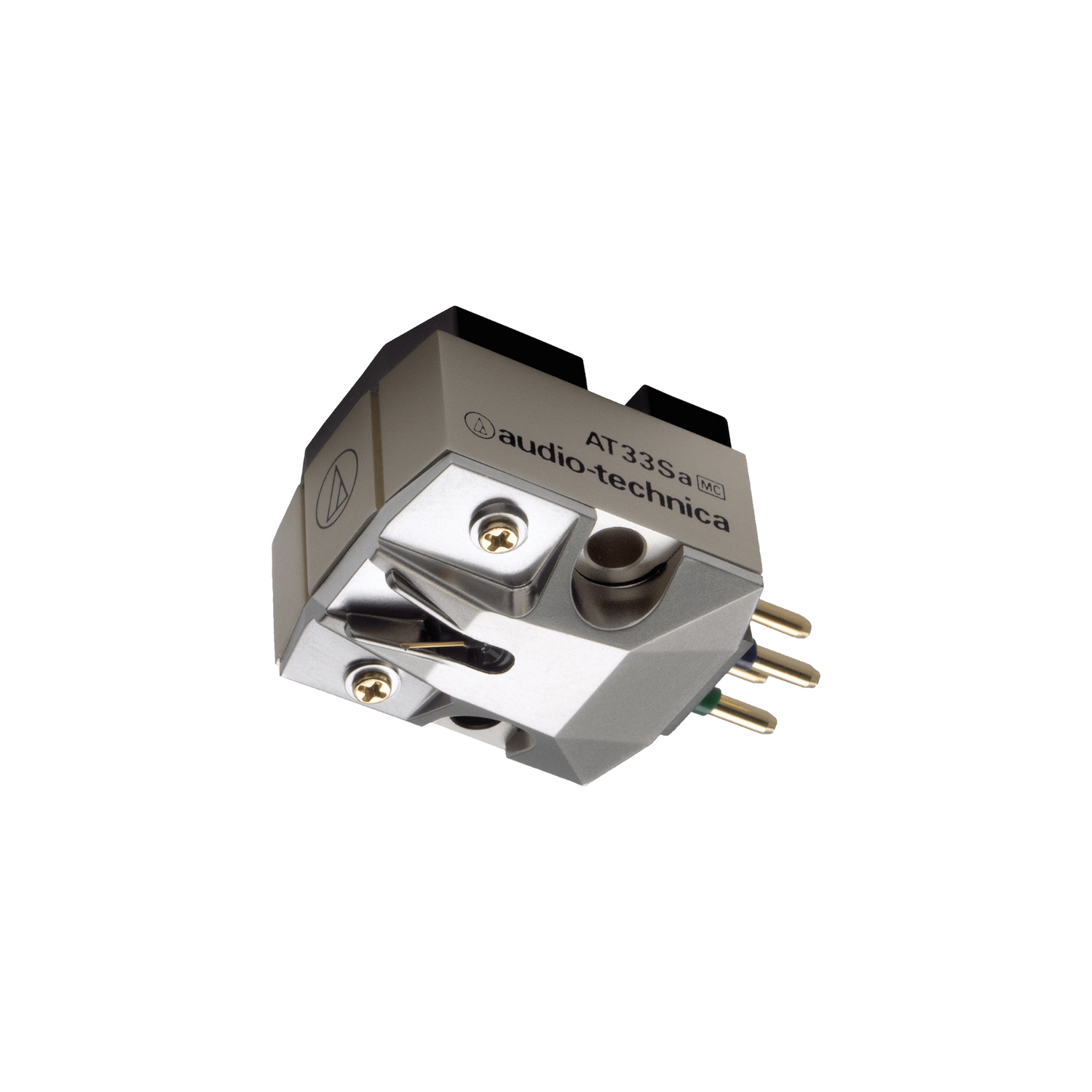

Audio Technica AT33SA Moving Coil Cartridge with Shibata Stylus

Audio Technica  |  SKU: 50364
£679.99

  • Free & Next-Day Delivery Available

    Superfast Next Day Delivery available. T&Cs

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days. T&Cs

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description


Audio Technica AT33SA Moving Coil Cartridge with Shibata Stylus

The AT33SA marks Audio-Technica's introduction of the Shibata stylus to its MC cartridge lineup, delivering exceptional performance across the frequency spectrum.

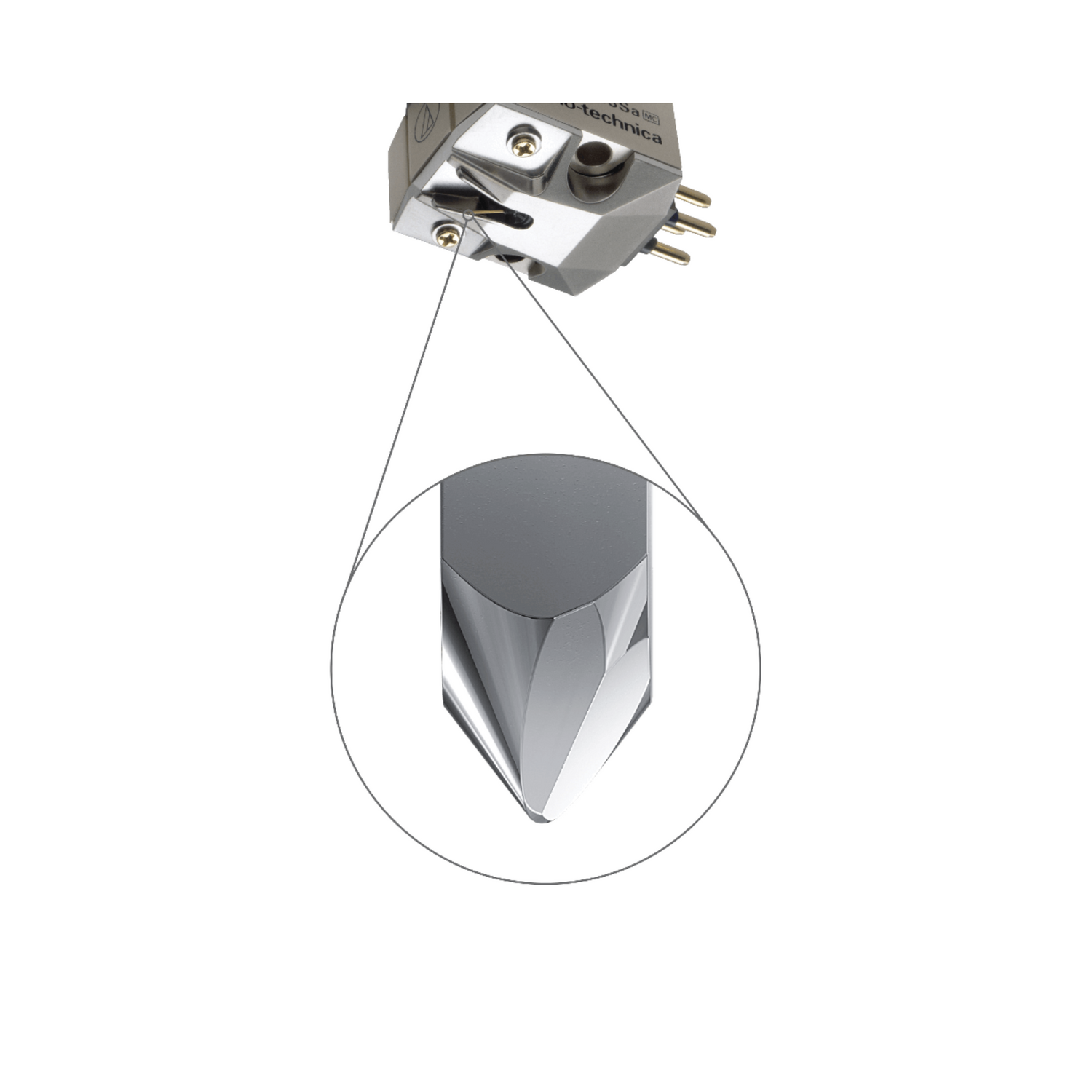

Shibata Stylus

As the first Audio-Technica MC cartridge to feature a Shibata stylus, the AT33SA offers superior high-range performance typical of a line-contact stylus, along with strong and rich mid and bass sound reproduction. Mounted on a boron cantilever with a double damper, the Shibata stylus greatly enhances sound quality.

Advanced Design

The AT33SA utilises a tapered boron cantilever, reducing weight and improving high-range performance and wide-range reproduction. By tapering the cantilever and adjusting the number of coil rotations, the cartridge achieves enhanced performance across the frequency spectrum.

Magnetic Properties

Featuring a neodymium magnet with maximum energy product BHmax of 50 [kJ/m3] and a permendur yoke with high saturation flux density, the AT33SA creates a concentrated magnetic field in the coil gap. This setup dramatically enhances magnetic energy and ensures outstanding magnetic properties for superior performance.

Neodymium Magnet

The neodymium magnet delivers maximum energy (BHmax of 50[kJ/m3]), while the pure iron yoke contributes excellent magnetic properties, further enhancing the overall performance of the cartridge.

Additional Information

Cartridge & Stylus
Frequency Response15 - 50,000Hz
Channel Separation30dB (1kHz)
Vertical Tracking Angle23°
Vertical Tracking Force1.8 to 2.2 g (standard 2.0 g)
Stylus ConstructionNude square shank
Recommended Load ImpedanceMin 100Ω
Coil Impedance10Ω (1kHz)
DC Resistance10Ω
Coil Inductance22 µm (1kHz)
Output Voltage0.4mV (1kHz and 5cm/sec.)
Output Channel Balance0.5dB (1kHz)
Stylus ShapeShibata
CantileverNude tapered boron
Static Compliance40×10-6cm/dyne
Dynamic Compliance10×10-6cm/dyne (100Hz)
Mounting1/2” centers
DimensionsH16×W16.6×D26.5mm
Accessories Included1 non magnetic screw driver; 1 brush; 2 washers; 2 Nuts; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires (AT6101)
Body MaterialAluminium/Synthetic Resin
Stylus Curvature RadiusShibata
TypeDual Moving Coil
Weight6.9g
