Audio Technica AT-OC9XEN Dual Moving Coil Stereo Cartridge with Elliptical Nude Stylus

SKU 64489
Original price £310.00 - Original price £310.00
Original price
£310.00
£310.00 - £310.00
Current price £310.00

    .
  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • 1 Year Warranty

    1 Year Warranty for Peaceful Ownership

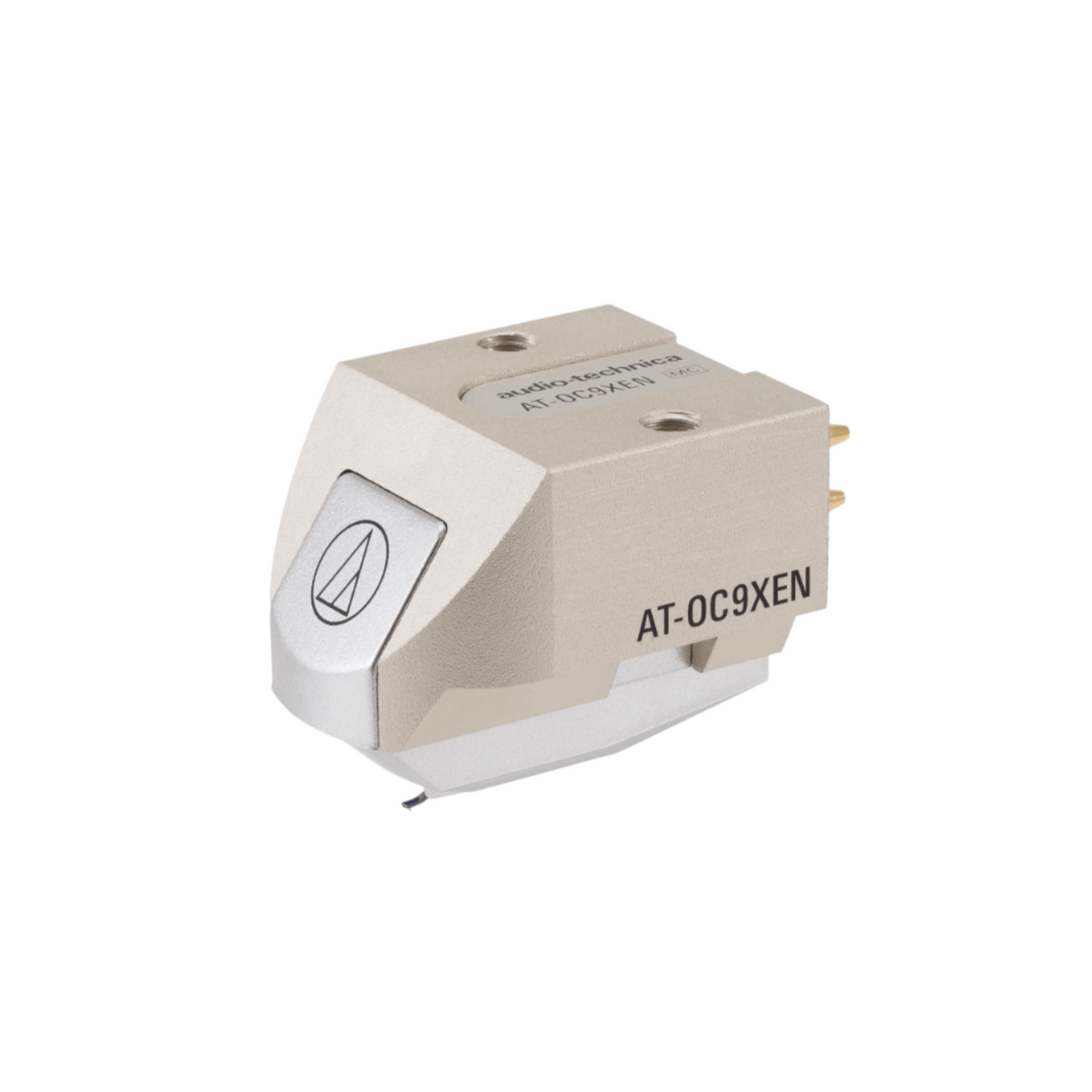

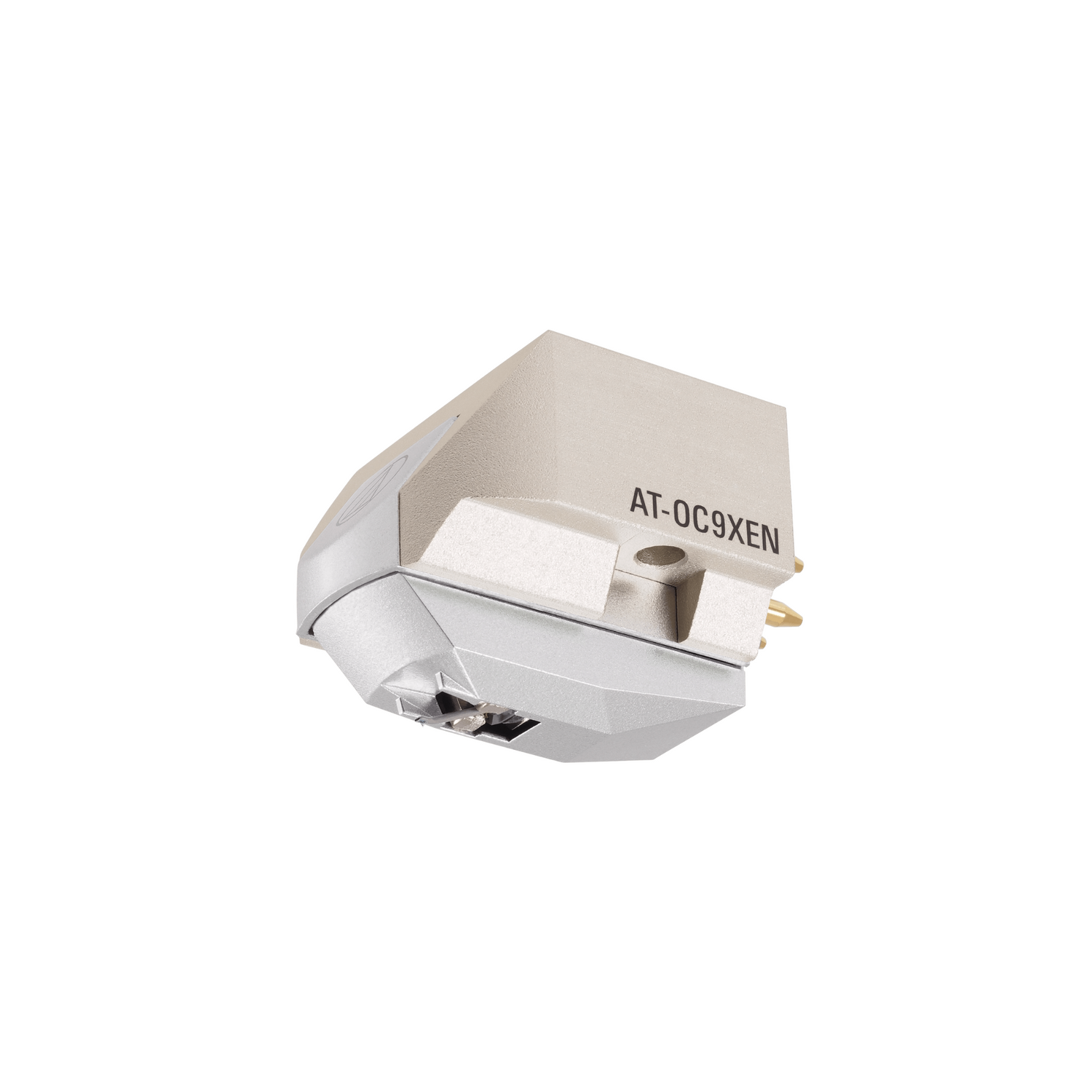

Audio Technica AT-OC9XEN Dual Moving Coil Stereo Cartridge with Elliptical Nude Stylus

The Audio Technica AT-OC9XEN dual MC Phono Cartridge represents an accessible option within the OC9X cartridge range, substituting the boron cantilever found in higher-end models with an aluminium pipe design. This, combined with a nude square shank elliptical stylus, maintains the excellent channel separation characteristic of the OC9X series.

Performance

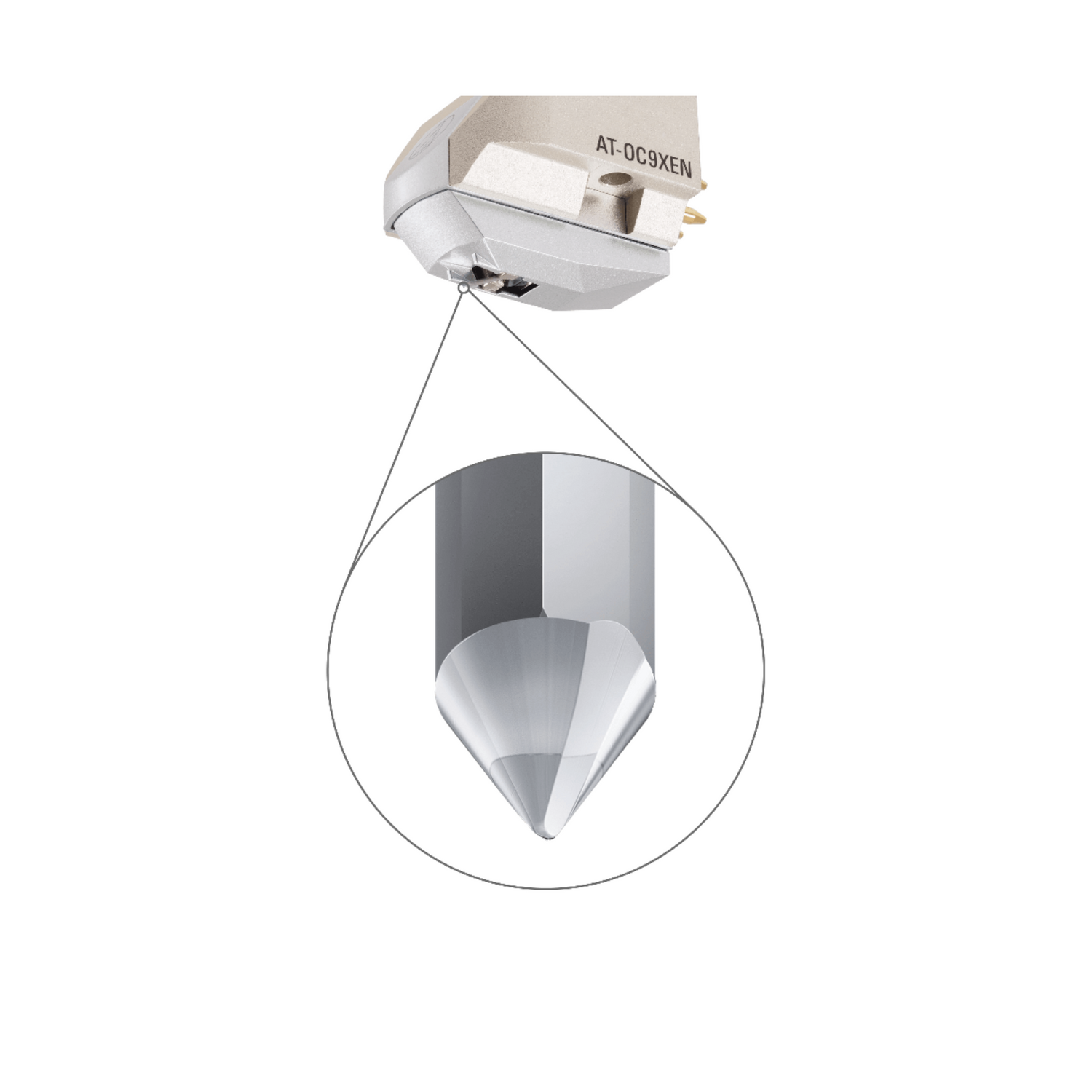

To enhance sound quality, the cartridge body is crafted from rigid aluminium, reducing resonance. Paired with a neodymium magnet and permedur yoke, this setup significantly boosts magnetic energy. The nude elliptical stylus meticulously tracks the record groove with superior precision, delivering rich full-range audio and greater transient response.

PCOCC Coil

The AT-OC9XEN utilises pure copper coils formed through the ohno continuous casting process, ensuring exceptional audio performance. These coils are arranged in a reverse V-shape, exerting less pressure on the elliptical stylus to minimise distortion. With a pre-threaded cartridge body, installation onto a headshell or integral tonearm is straightforward, requiring only two screws and eliminating the need for nuts.

Please Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.

  • Low Mass Nude Elliptical Stylus and Aluminium Cantilever: Enables precise tracking and accurate audio reproduction, delivering high-fidelity sound with exceptional detail.
  • Neodymium Magnet and Pure Iron Yoke: Enhance magnetic energy, improving cartridge performance and efficiency for optimal playback.
  • Threaded Inserts: Integrated into the cartridge body, facilitating easy mounting onto the headshell or integral tonearm with just two screws, eliminating the need for additional nuts and simplifying installation.
  • Aluminium Body: Minimises unwanted vibration, reducing resonance to ensure superior audio reproduction with clarity and precision.
  • Pure Copper by Ohno Continuous Casting Process (PCOCC) Coils: Utilised for the coils to achieve the purest signal possible, maintaining signal integrity and fidelity throughout the audio playback process.

Cartridge & Stylus
Frequency Response20 - 30,000 Hz
Channel Separation25 dB (1 kHz)
Vertical Tracking Angle20 degrees
Vertical Tracking Force1.8 to 2.2 g (standard 2.0 g)
Stylus ConstructionNude square shank
Recommended Load ImpedanceMin 100 Ohms
Coil Impedance12 Ohms (1 kHz)
DC Resistance12 Ohms
Coil Inductance25 μH (1 kHz)
Output Voltage0.35 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance1.5 dB (1 kHz)
Stylus ShapeElliptical Nude
CantileverAluminium pipe
Static Compliance20 x 10 – 6 cm / dyne
Dynamic Compliance9 x 10 – 6 cm / dyne (100 Hz)
Mounting1/2” centers / Threaded inserts
Cartridge Weight7.6 g
Dimensions17.3 (H) x 16.8 (W) x 25.7 (L) mm

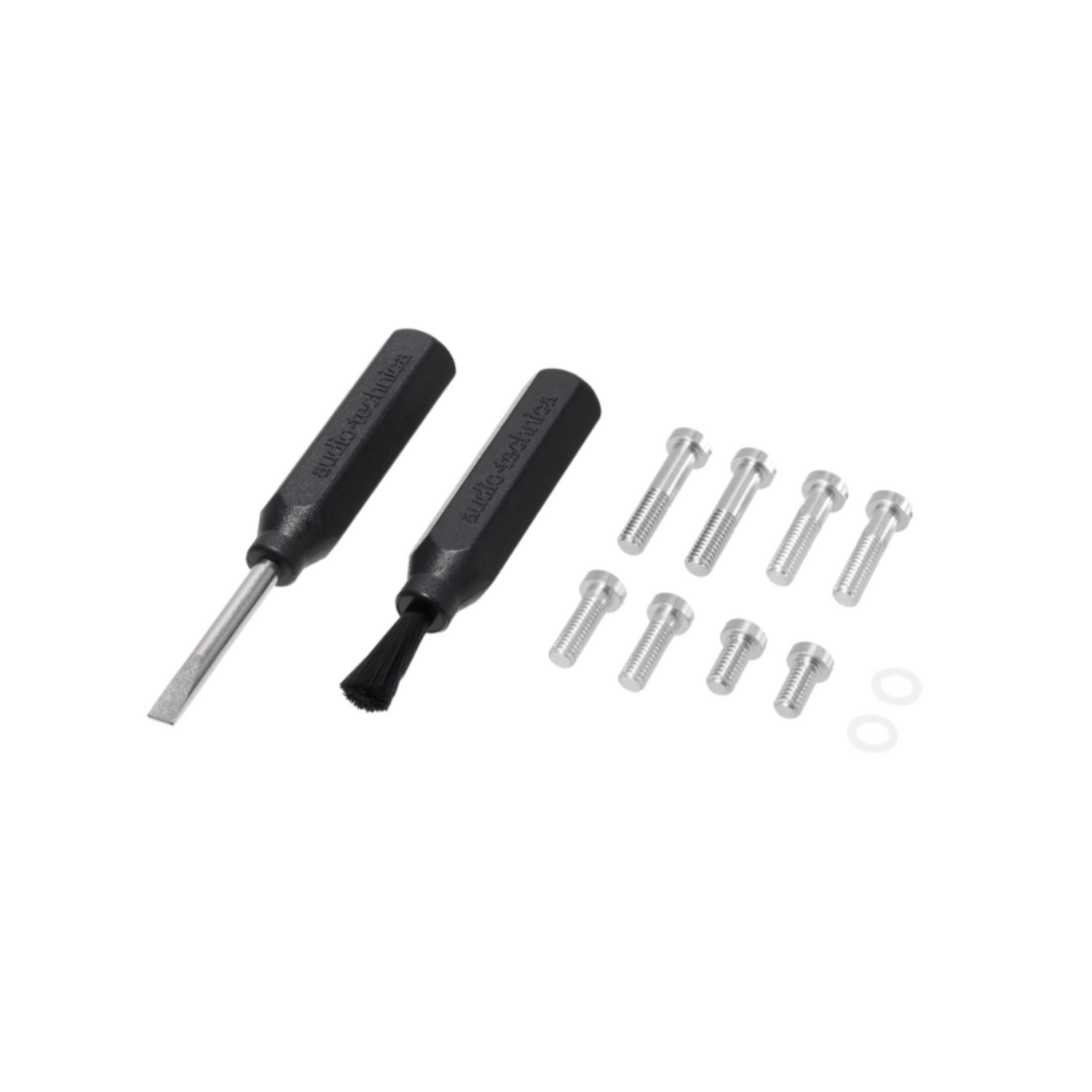

Accessories Included1 non magnetic screw driver
1 brush
2 washers
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector
Body MaterialAluminium
ModelAT-OC9XEN
Stylus Size0.3 x 0.7 mil
Terminal PinsBrass
Wire Used for CoilPCOCC (Copper by Ohno Continuous Casting process.)

  • Audio Technica AT-OC9XEN
  • 1 non magnetic screw driver
  • 1 brush
  • 2 washers
  • 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
  • 1 plastic protector
