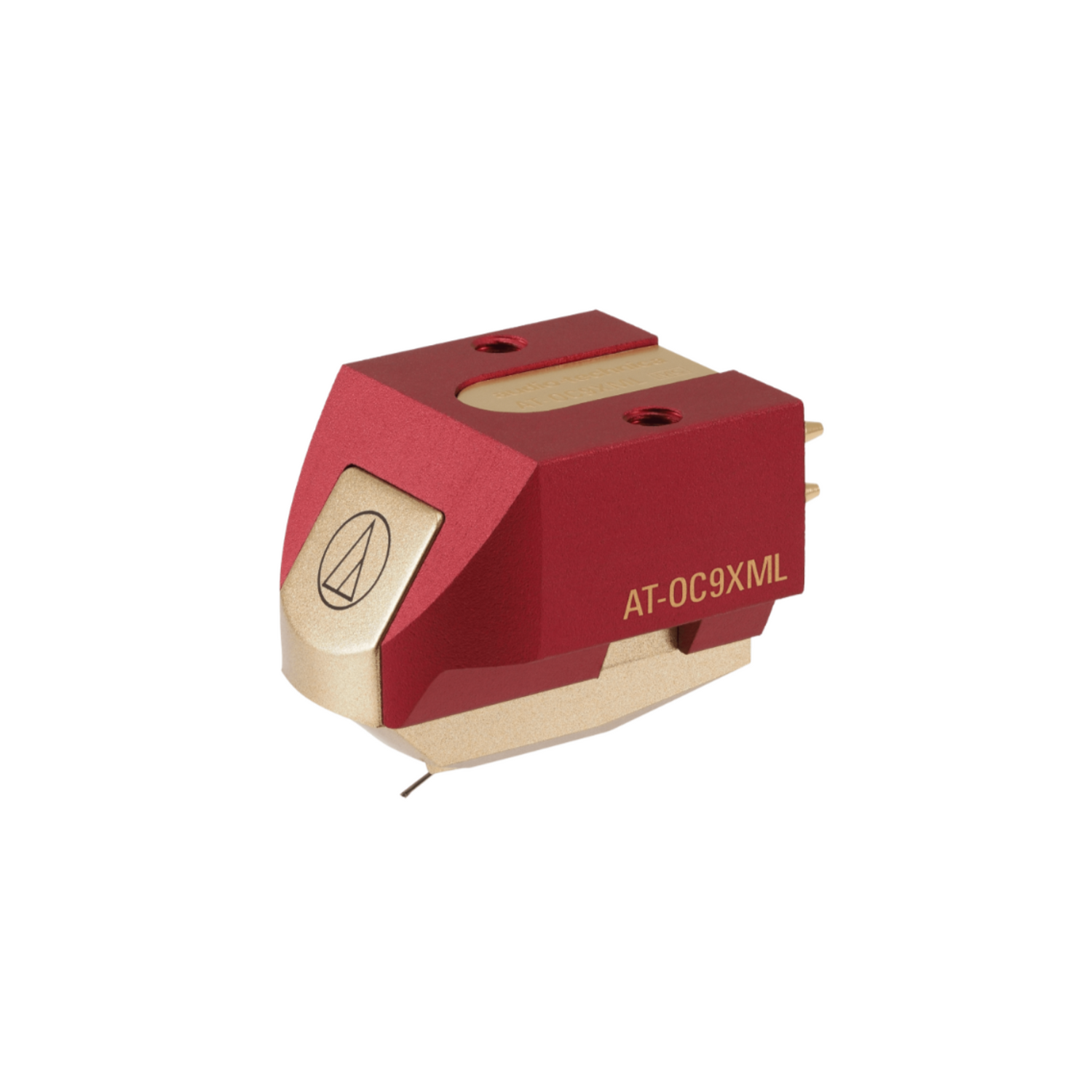

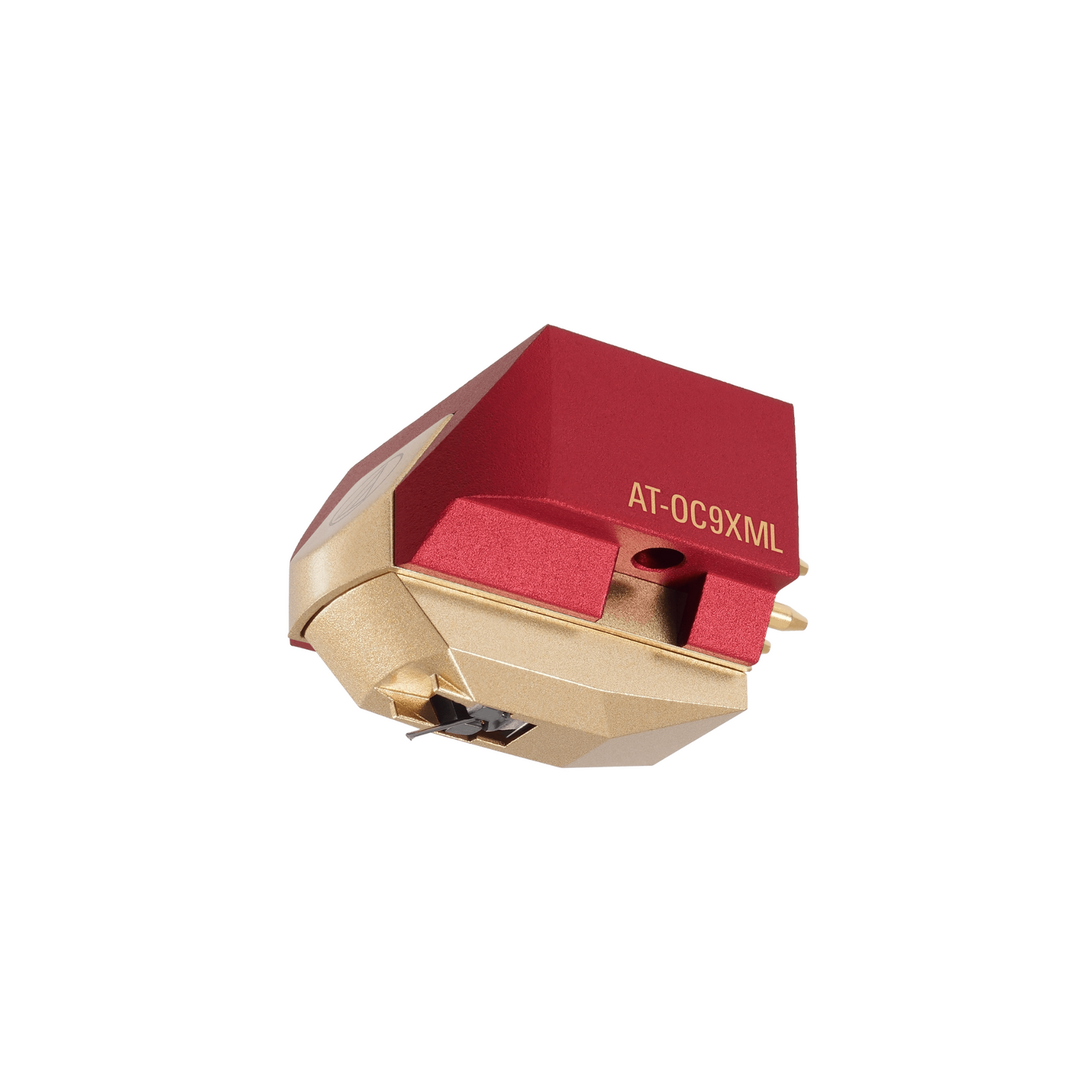

Audio Technica AT-OC9XML Dual Moving Coil Stereo Cartridge with Microlinear Stylus

  • Exceptional detailNude MicroLinear stylus
  • Fast, accurate responseBoron cantilever
  • Wide stereo imageExcellent channel separation
  • Cleaner signalPCOCC pure copper coils
  • Low resonanceAluminium body
  • Easy fittingThreaded inserts for two-screw mounting

Buy online with confidence

79 years of hi-fi expertise · established 1947

Genuine UK stock with full manufacturer warranty, free next day delivery over £50 and 14-day returns. Need help? Our experts are on 0115 975 8613.

£509.00
Available to order – call 0115 975 8613 for the latest delivery date
FREE next day delivery · Saturday delivery available in the basket
Click & collect from our Nottingham showroom (NG7 4EX)
Manufacturer warranty
Genuine UK stock, full cover
14-day returns
Hassle-free if unused
Secure checkout
All major cards accepted
Hi-fi experts since 1947
Real advice, before and after you buy

Questions? Call our experts on 0115 975 8613 or send a message.

Audio Technica  |  SKU: 64488

Why you'll love the Audio Technica AT-OC9XML

The benefits that matter, at a glance.

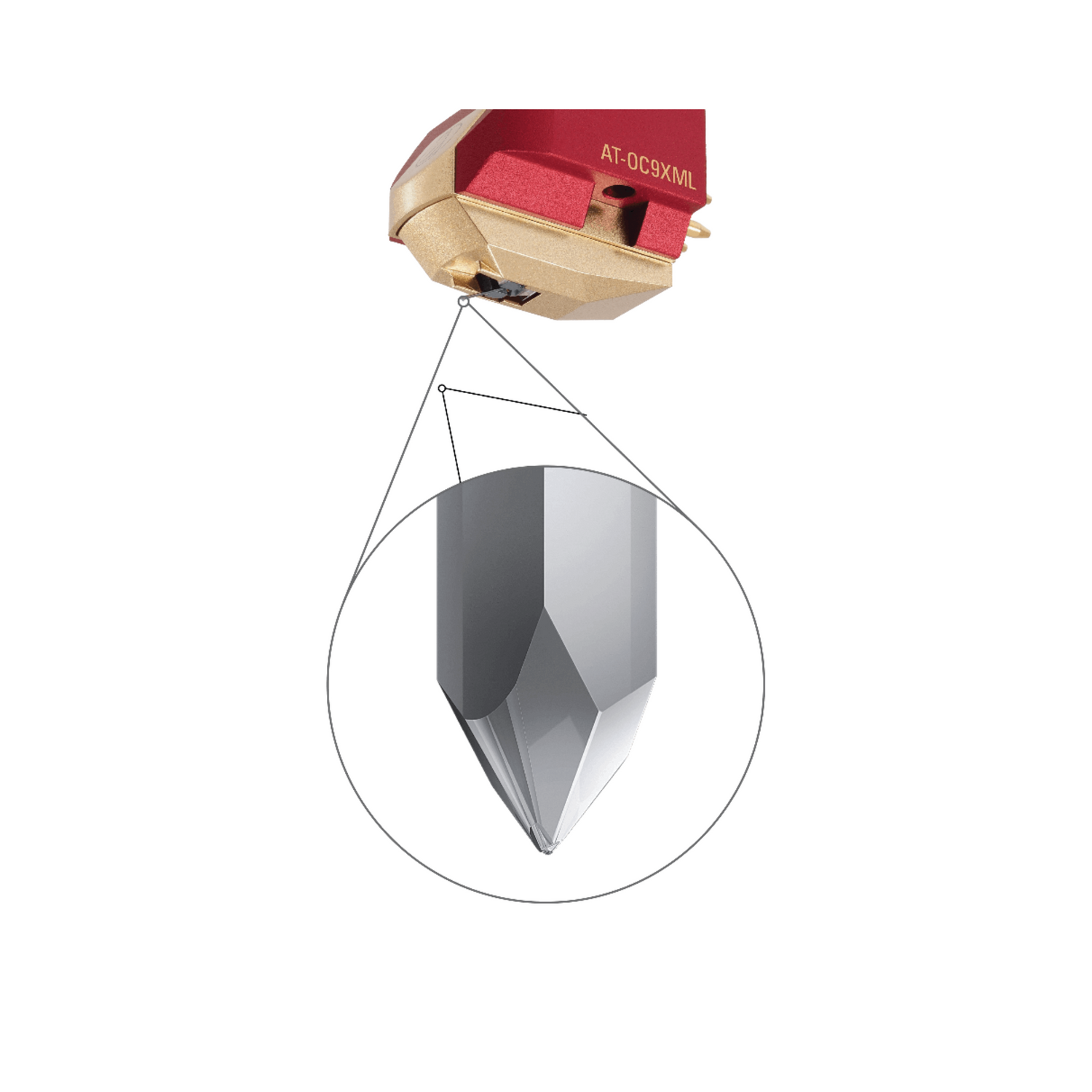

Nude Microlinear Stylus and Boron Cantilever

Delivers lower distortion and high transient response, ensuring accurate audio reproduction with exceptional clarity and detail.

Neodymium Magnet and Permendur Yoke

Enhance magnetic energy significantly, improving cartridge performance for enhanced audio quality and fidelity.

Threaded Inserts

Incorporated into the cartridge body, enabling easy mounting onto the headshell or integral tonearm with just two screws, eliminating the need for additional nuts and simplifying installation.

Aluminium Body

Minimises unwanted vibration, reducing resonance to ensure superior audio reproduction with precise sound imaging and fidelity.

Pure Copper by Ohno Continuous Casting Process (PCOCC) Coils

Utilised for the coils to achieve pure signal transfer, maintaining signal integrity and fidelity throughout the audio playback process.

Overview

The Audio-Technica AT-OC9XML is a dual moving coil cartridge that reveals more of your records: a nude MicroLinear stylus on a boron cantilever gives superb detail, timing and stereo separation.

Why you'll love it

  • Nude MicroLinear stylus for low distortion and long life
  • 0.28mm boron cantilever for fast transient response
  • PCOCC pure copper coils, neodymium magnet and permendur yoke
  • Aluminium body and threaded inserts for easy, stable mounting

Perfect for

Upgrading a quality turntable with a moving coil phono stage.

Why buy from Nottingham HiFi?

Hi-fi experts since 1947. Genuine UK stock with full manufacturer warranty, free next day delivery on orders over £50 (order by 3pm), 14-day returns and real advice on 0115 975 8613.

Specifications

Cartridge & Stylus
Frequency Response20 - 47,000 Hz
Channel Separation27 dB (1 kHz)
Vertical Tracking Angle20 degrees
Vertical Tracking Force1.8 to 2.2 g (standard 2.0 g)
Stylus ConstructionNude square shank
Recommended Load ImpedanceMin 100 Ohms
Coil Impedance12 Ohms (1 kHz)
DC Resistance12 Ohms
Coil Inductance25 μH (1 kHz)
Output Voltage0.4 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance1.0 dB (1 kHz)
Stylus ShapeMicrolinear
Cantilever0.28 mm Ø nude boron
Static Compliance20 x 10–6 cm / dyne
Dynamic Compliance16 x 10–6 cm / dyne (100 Hz)
Mounting1/2” centers / Threaded
Cartridge Weight7.6 g
Dimensions17.3 (H) x 16.8 (W) x 25.7 (L) mm
Accessories Included1 non-magnetic screwdriver, 1 brush, 2 washers, 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm, 1 plastic protector
Body MaterialAluminium
ModelAT-OC9XML
Stylus Size2.2 x 0.12 mil
Terminal PinsBrass
Wire Used for CoilPCOCC (Copper by Ohno Continuous Casting process)

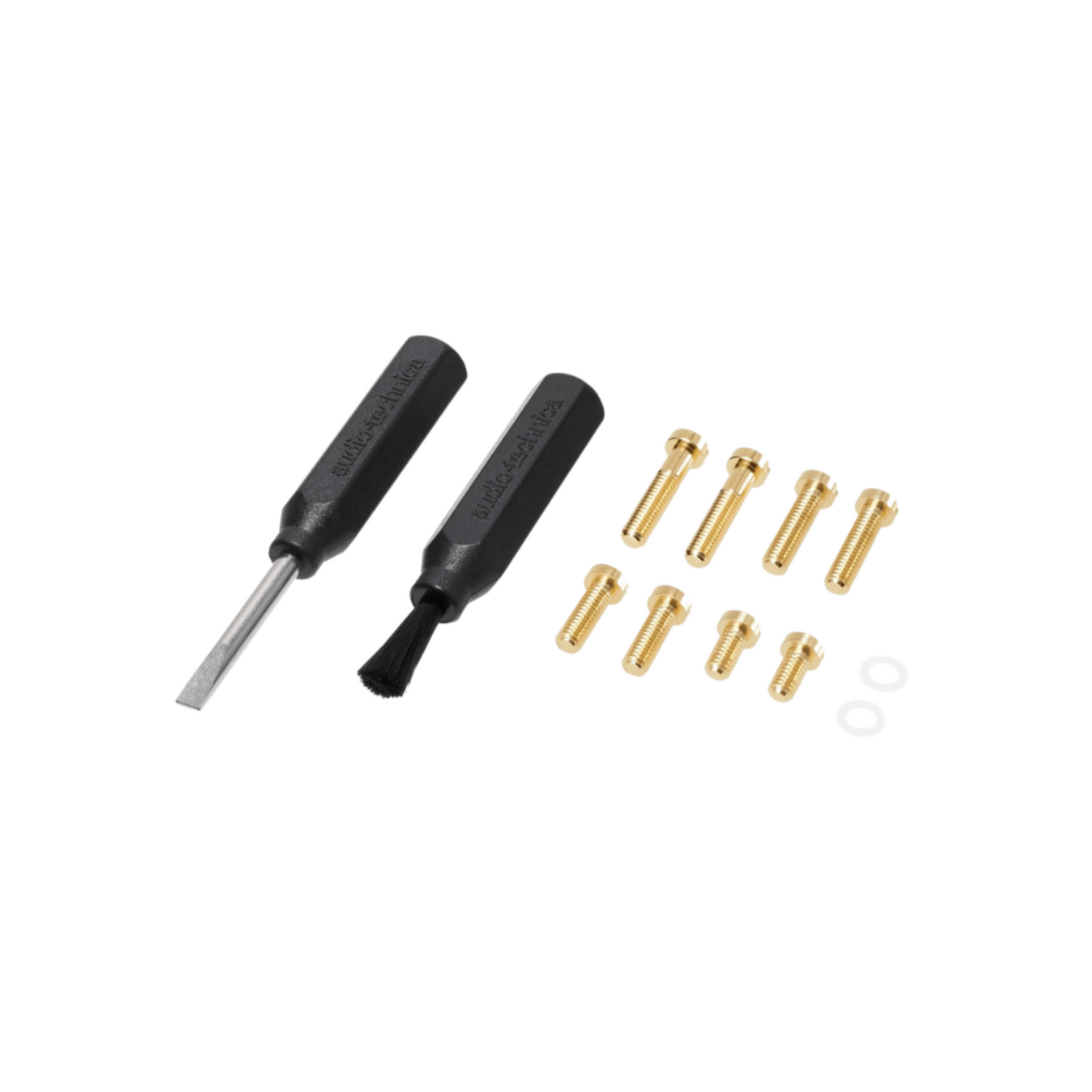

In the box

  • Audio Technica AT-OC9XML
  • 1 non magnetic screw driver
  • 1 brush
  • 2 washers
  • 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
  • 1 plastic protector

Not sure what you need?

Tell us about your room and kit, and our team will build you a matched system, at no extra cost.

Call 0115 975 8613 →

Free next day delivery

Free next day delivery on orders over £50 – order by 3pm. Saturday delivery available in the basket.

Genuine UK stock

Every product comes with the full UK manufacturer warranty.

14-day returns

Changed your mind? Send it back unused within 14 days.

Experts since 1947

Real advice before and after you buy. Call 0115 975 8613.

Audio Technica AT-OC9XML – frequently asked questions

What phono stage do I need for the AT-OC9XML?

A moving coil (MC) phono stage or step-up transformer, as it is a low-output MC cartridge.

Is it easy to fit?

Yes. Threaded inserts mean it mounts with just two screws. We can fit and align it for you.

Why a MicroLinear stylus?

Its shape traces the groove closely, giving more detail and lower distortion, and it wears well.

Will it suit my turntable?

It suits most standard half-inch mount tonearms. Call us to check your deck.

How quickly can I get the Audio Technica AT-OC9XML?

It is available to order. Call our team on 0115 975 8613 for the latest delivery date. Delivery is free on UK orders over £50.

What warranty does the Audio Technica AT-OC9XML come with?

It is genuine UK stock and comes with the full Audio Technica UK manufacturer warranty, so you are fully covered.

Can I return the Audio Technica AT-OC9XML if I change my mind?

Yes. You can return it unused in its original packaging within 14 days of delivery. See our returns policy.

Still got a question about the Audio Technica AT-OC9XML? Call 0115 975 8613 or send us a message.
