Audio Technica AT-OC9XSH Dual Moving Coil Stereo Cartridge with Shibata Stylus

  • Nude Shibata Stylus and Boron CantileverDeliver rich low-frequency reproduction and high transient response, ensuring accurate and detailed...
  • Neodymium Magnet and Permendur YokeSignificantly increase magnetic energy, enhancing cartridge performance for improved audio quality and...
  • Threaded InsertsLocated in the cartridge body, facilitating easy mounting onto the headshell or...
  • Aluminium BodyMinimises unwanted vibration, reducing resonance to achieve superior audio reproduction with precise...
  • Pure Copper by Ohno Continuous Casting Process (PCOCC) CoilsUtilised for the coils to achieve pure signal transfer, preserving signal integrity...

Buy online with confidence

79 years of hi-fi expertise · established 1947

Genuine UK stock with full manufacturer warranty, free next day delivery over £50 and 14-day returns. Need help? Our experts are on 0115 975 8613.

£599.00
Available to order – call 0115 975 8613 for the latest delivery date
FREE next day delivery · Saturday delivery available in the basket
Click & collect from our Nottingham showroom (NG7 4EX)
Manufacturer warranty
Genuine UK stock, full cover
14-day returns
Hassle-free if unused
Secure checkout
All major cards accepted
Hi-fi experts since 1947
Real advice, before and after you buy

Questions? Call our experts on 0115 975 8613 or send a message.

Audio Technica  |  SKU: 64487

Why you'll love the Audio Technica AT-OC9XSH

The benefits that matter, at a glance.

Nude Shibata Stylus and Boron Cantilever

Deliver rich low-frequency reproduction and high transient response, ensuring accurate and detailed sound reproduction across the entire frequency spectrum.

Neodymium Magnet and Permendur Yoke

Significantly increase magnetic energy, enhancing cartridge performance for improved audio quality and fidelity.

Threaded Inserts

Located in the cartridge body, facilitating easy mounting onto the headshell or integral tonearm with just two screws, eliminating the need for additional nuts and simplifying installation.

Aluminium Body

Minimises unwanted vibration, reducing resonance to achieve superior audio reproduction with precise sound imaging and fidelity.

Pure Copper by Ohno Continuous Casting Process (PCOCC) Coils

Utilised for the coils to achieve pure signal transfer, preserving signal integrity and fidelity throughout the audio playback process.

Overview

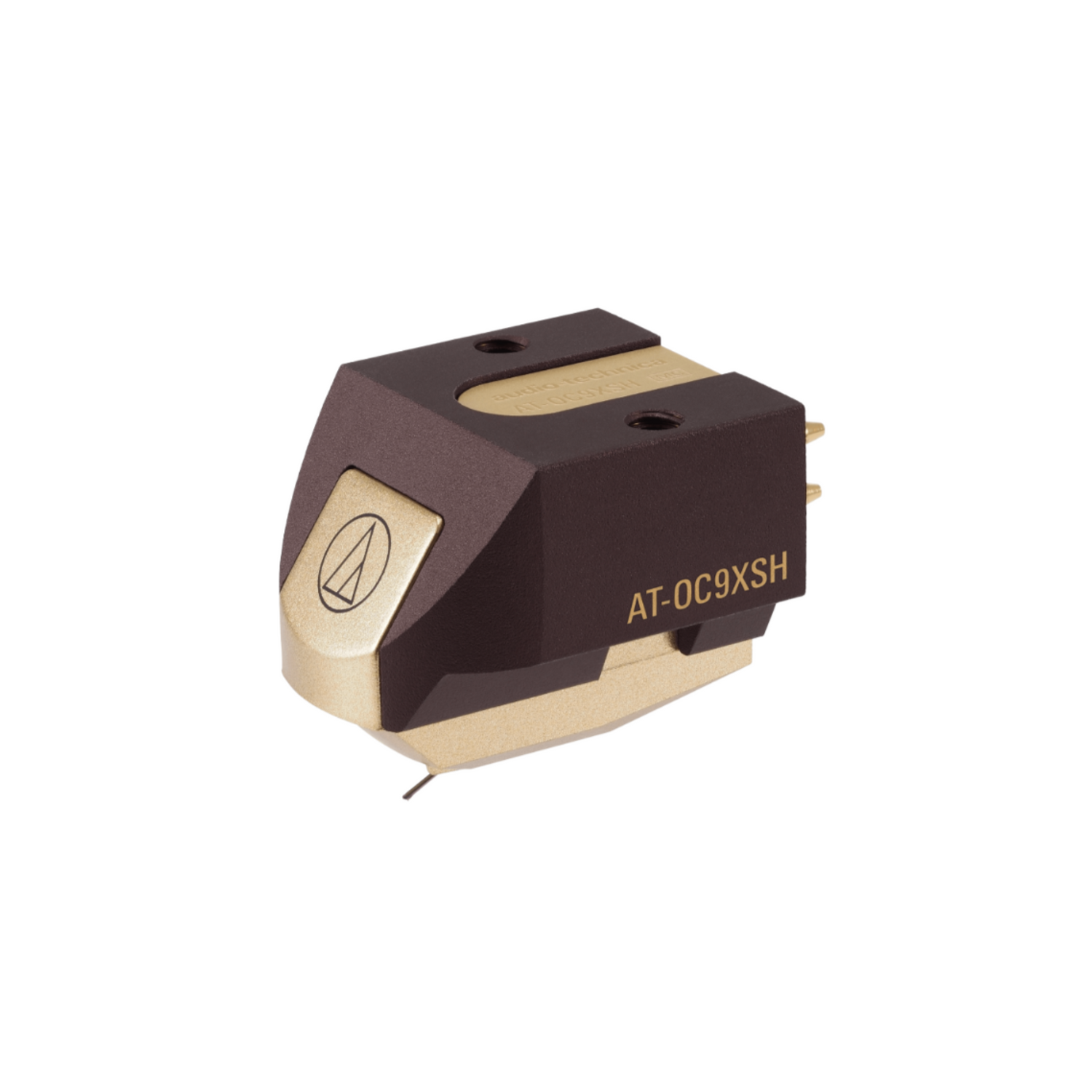

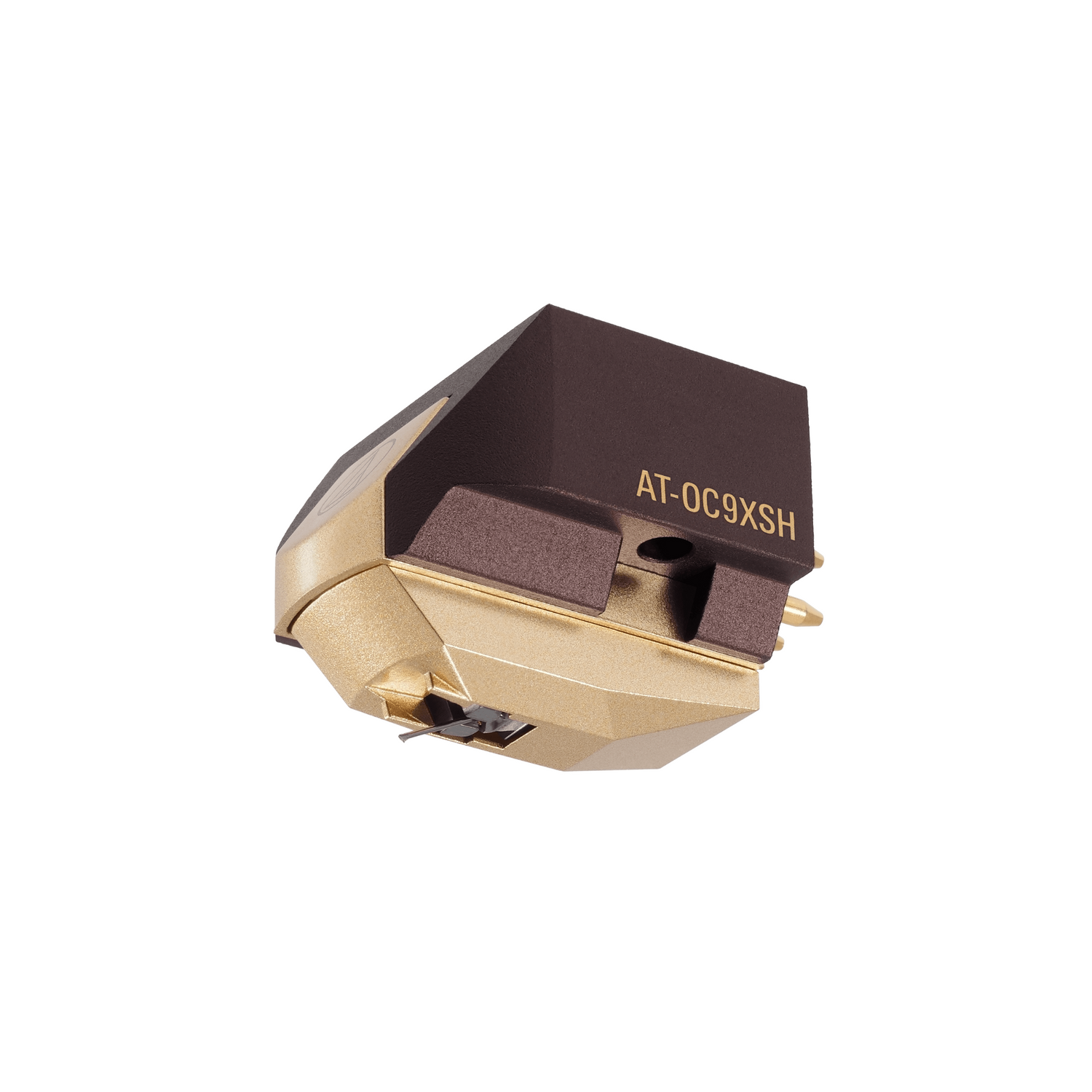

Audio Technica AT-OC9XSH Dual Moving Coil Stereo Cartridge with Shibata Stylus

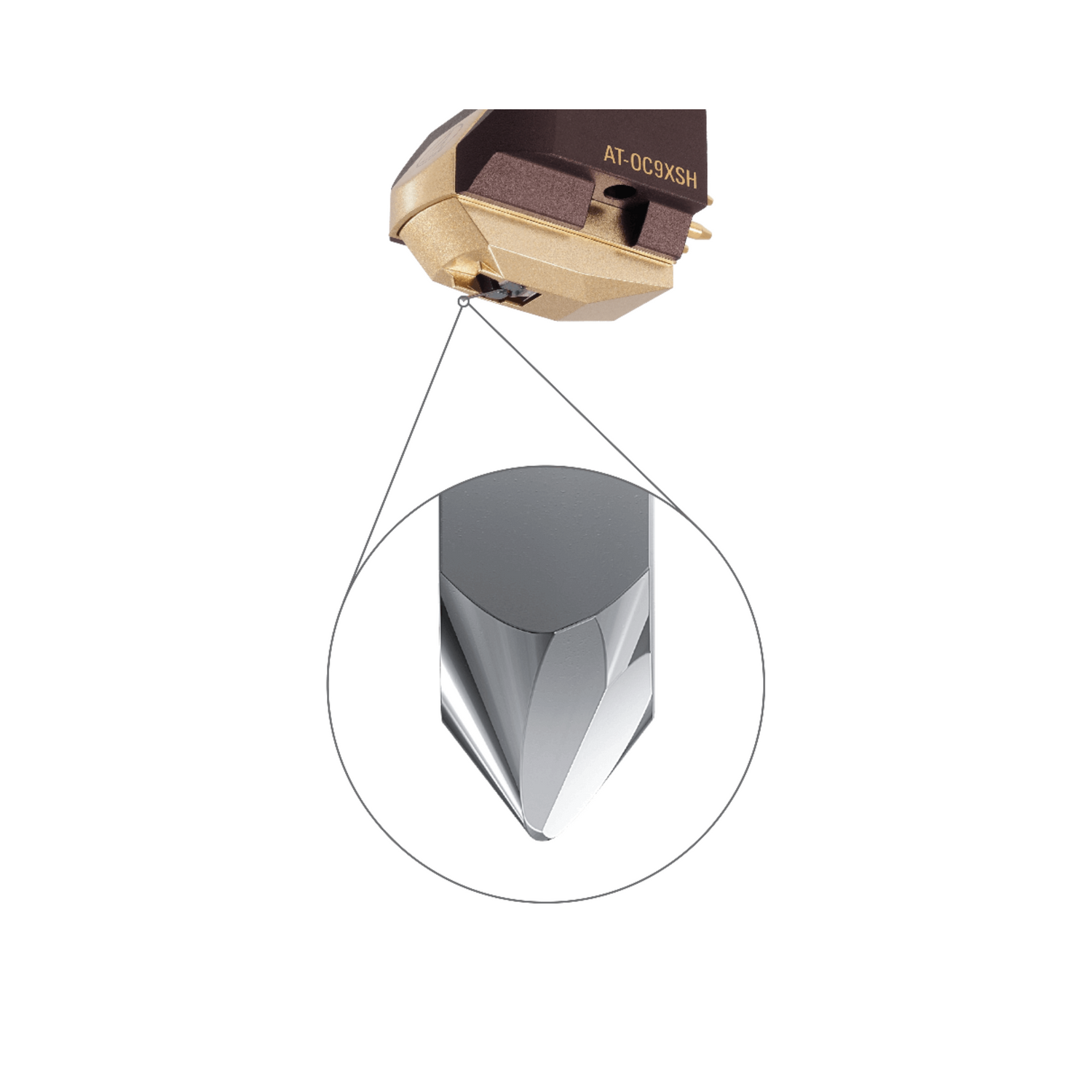

The Audio Technica AT-OC9XSH Dual MC Phono Cartridge boasts a Shibata stylus with a nude square shank, setting it apart from the other cartridges in the OC9X series. This stylus is meticulously crafted to deliver exceptional channel separation.

PCOCC Coil Pure Copper Ohno Continuous Casting coils are utilised to achieve flawless audio reproduction. These coils are arranged in a reverse V-shape, exerting less pressure on the stylus to minimise distortion.

Audio Quality The sturdy aluminium construction enhances sound quality by reducing resonance. Additionally, a neodymium magnet and permendur yoke significantly increase magnetic energy. The nude Shibata stylus, mounted on a boron cantilever, meticulously traces the record groove, ensuring rich, full-spectrum audio and high transient response. The cartridge body is pre-threaded, allowing for effortless mounting on a headshell or integral tonearm using only two screws, eliminating the need for nuts.

Please Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.

Specifications

Cartridge & Stylus
Frequency Response20 - 47,000 Hz
Channel Separation27 dB (1 kHz)
Vertical Tracking Angle20 degrees
Vertical Tracking Force1.8 to 2.2 g (standard 2.0 g)
Stylus ConstructionNude square shank
Recommended Load ImpedanceMin 100 Ohms
Coil Impedance12 Ohms (1 kHz)
DC Resistance12 Ohms
Coil Inductance25 μH (1 kHz)
Output Voltage0.4 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance1.0 dB (1 kHz)
Stylus ShapeShibata
Cantilever0.28 mm Ø nude boron
Static Compliance20 x 10–6 cm / dyne
Dynamic Compliance16 x 10–6 cm / dyne (100 Hz)
Mounting1/2” centers / Threaded inserts
Cartridge Weight7.6 g
Dimensions17.3 (H) x 16.8 (W) x 25.7 (L) mm
Accessories Included1 non-magnetic screwdriver, 1 brush, 2 washers, 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm, 1 plastic protector
Body MaterialAluminium
ModelAT-OC9XSH
Stylus Size2.7 x 0.26 mil
Terminal PinsBrass
Wire Used for CoilPCOCC (Copper by Ohno Continuous Casting process)

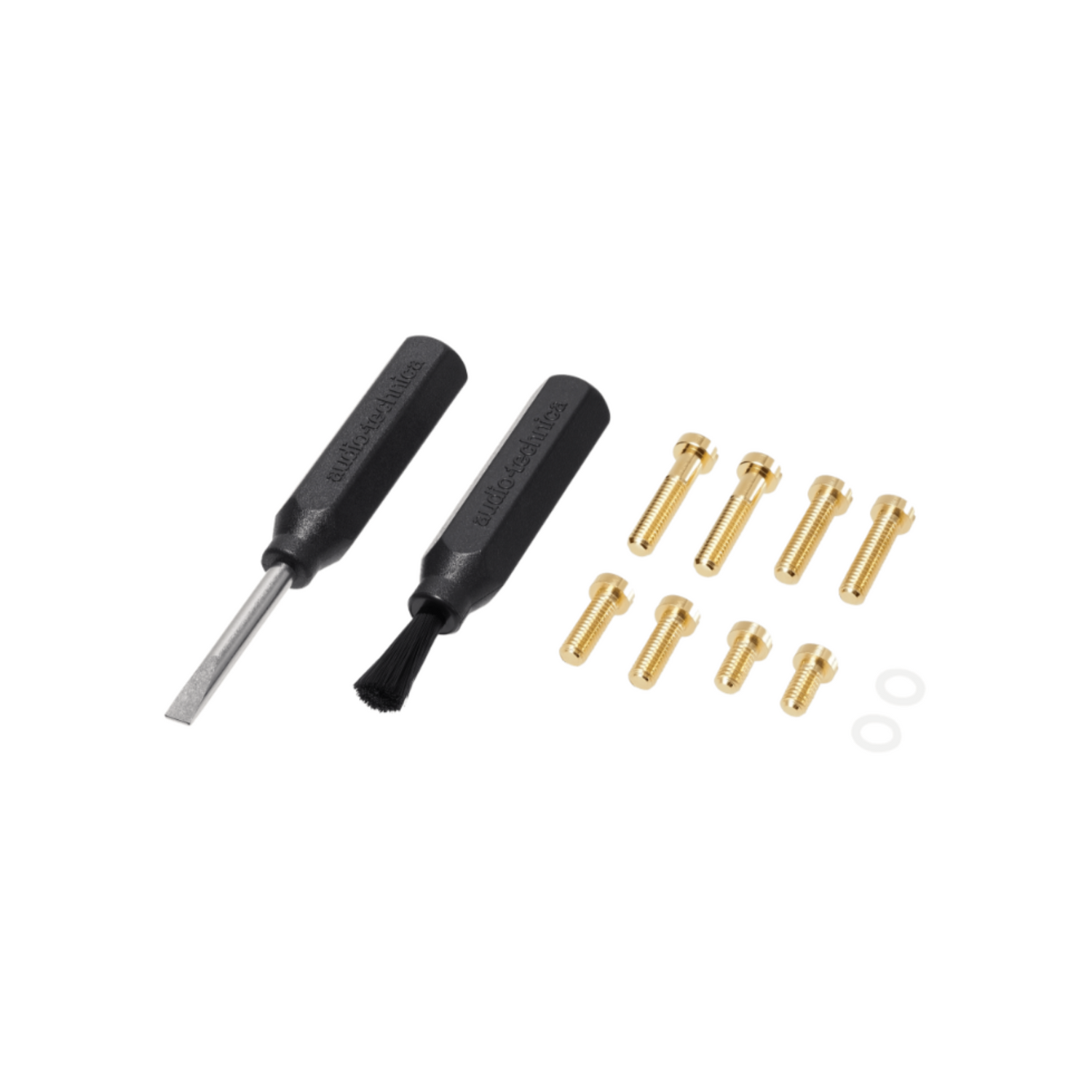

In the box

  • Audio Technica AT-OC9XSH
  • 1 non magnetic screw driver
  • 1 brush
  • 2 washers
  • 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
  • 1 plastic protector
