Audio Technica AT-OC9XSL Dual Moving Coil Stereo Cartridge with Special Line Contact Stylus

  • Nude Special Line Contact Stylus and Boron CantileverEquipped with accurate tracking ability and high transient response, ensuring precise and...
  • Neodymium Magnet and Permendur YokeDeliver dramatically increased magnetic energy, enhancing the performance of the cartridge for...
  • Threaded InsertsIncorporated into the cartridge body, allowing for easy mounting onto the headshell...
  • Aluminium BodyReduces unwanted vibration, resulting in reduced resonance and superior audio reproduction with...
  • Pure Copper by Ohno Continuous Casting Process (PCOCC) CoilsUtilised for the coils to achieve pure signal transfer, maintaining signal integrity...

Buy online with confidence

79 years of hi-fi expertise · established 1947

Genuine UK stock with full manufacturer warranty, free next day delivery over £50 and 14-day returns. Need help? Our experts are on 0115 975 8613.

£679.00
Available to order – call 0115 975 8613 for the latest delivery date
FREE next day delivery · Saturday delivery available in the basket
Click & collect from our Nottingham showroom (NG7 4EX)
Manufacturer warranty
Genuine UK stock, full cover
14-day returns
Hassle-free if unused
Secure checkout
All major cards accepted
Hi-fi experts since 1947
Real advice, before and after you buy

Questions? Call our experts on 0115 975 8613 or send a message.

Audio Technica  |  SKU: 64486

Why you'll love the Audio Technica AT-OC9XSL

The benefits that matter, at a glance.

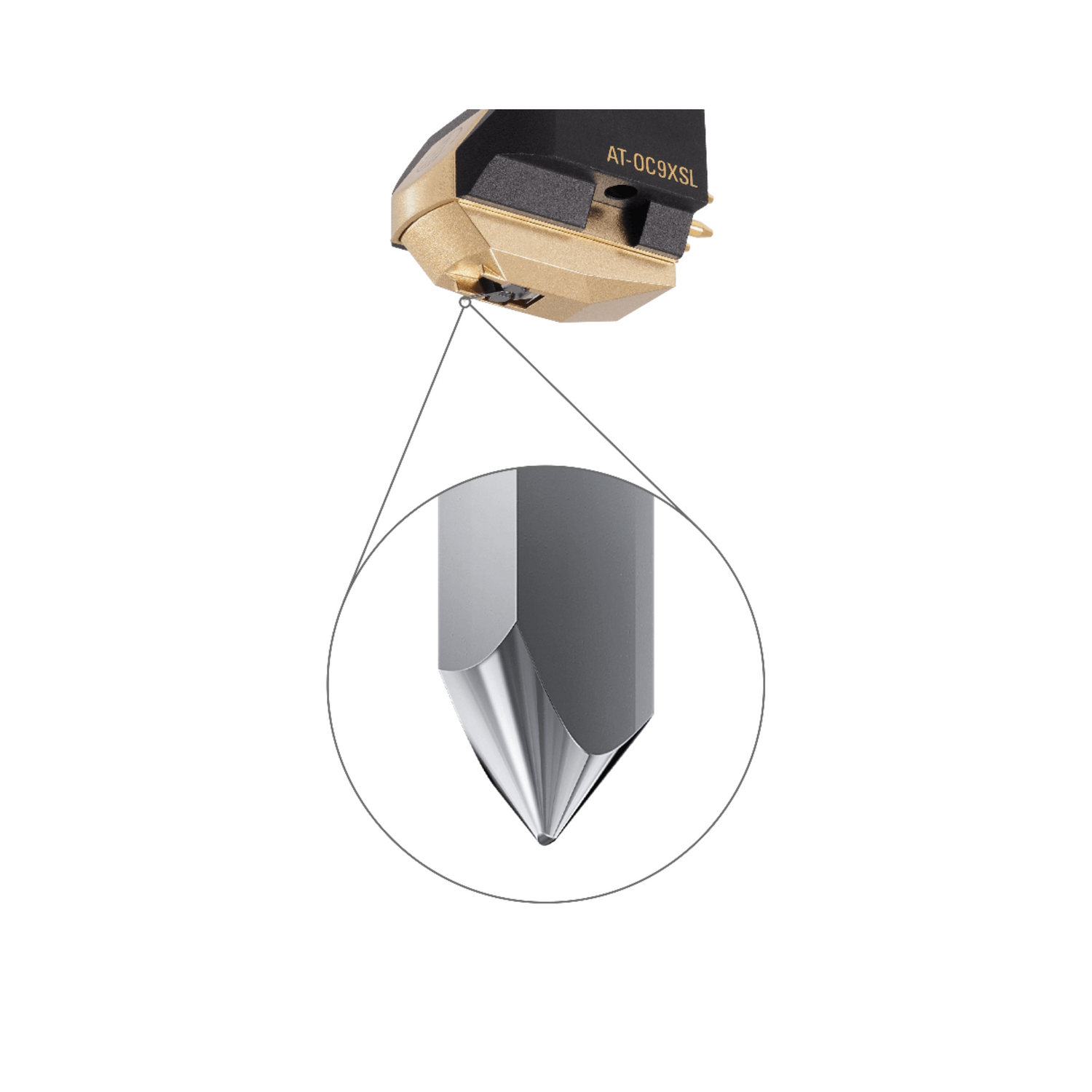

Nude Special Line Contact Stylus and Boron Cantilever

Equipped with accurate tracking ability and high transient response, ensuring precise and detailed playback of audio recordings.

Neodymium Magnet and Permendur Yoke

Deliver dramatically increased magnetic energy, enhancing the performance of the cartridge for improved audio fidelity and clarity.

Threaded Inserts

Incorporated into the cartridge body, allowing for easy mounting onto the headshell or integral tonearm with just two screws, simplifying installation without the need for additional nuts.

Aluminium Body

Reduces unwanted vibration, resulting in reduced resonance and superior audio reproduction with enhanced clarity and precision.

Pure Copper by Ohno Continuous Casting Process (PCOCC) Coils

Utilised for the coils to achieve pure signal transfer, maintaining signal integrity and fidelity throughout the playback process.

Overview

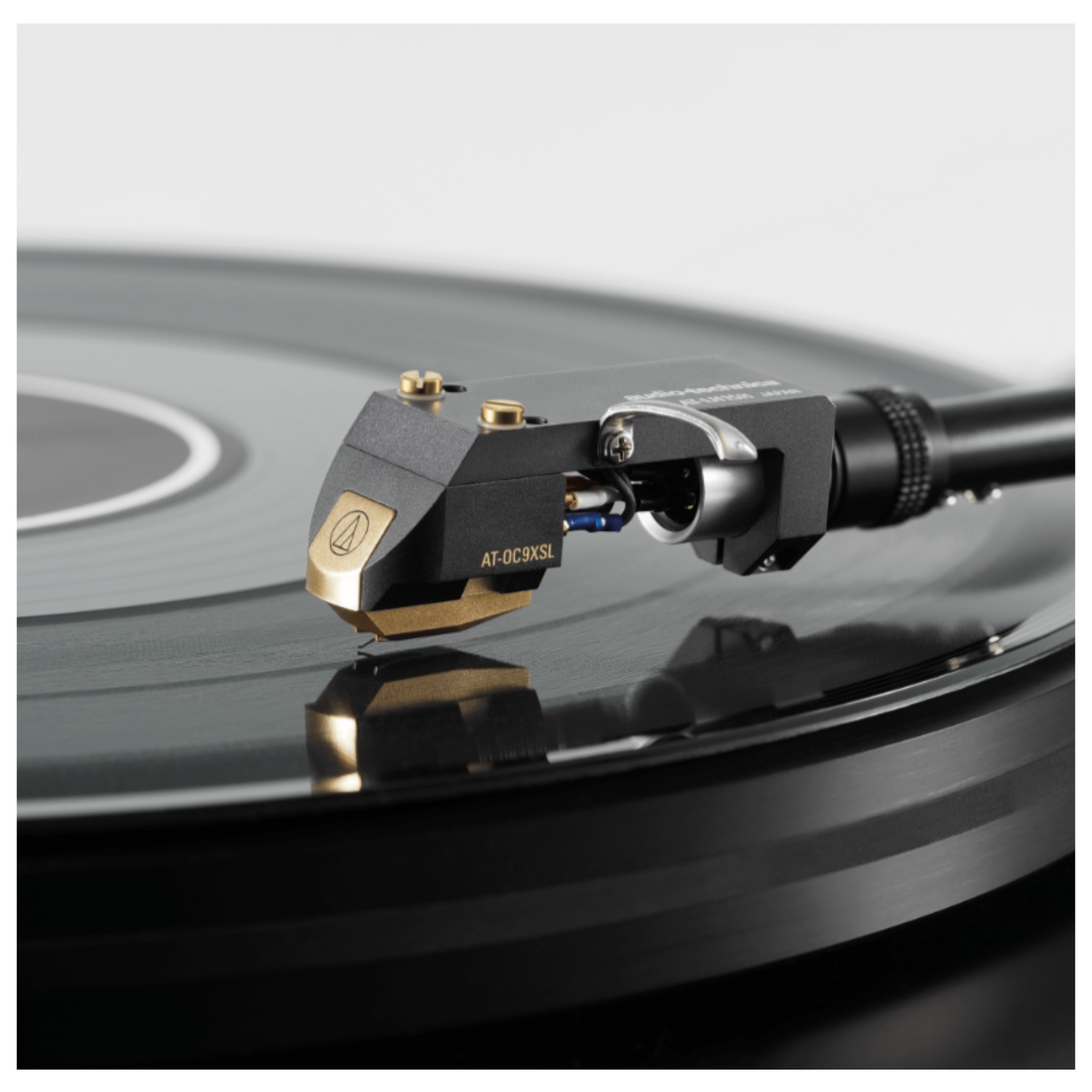

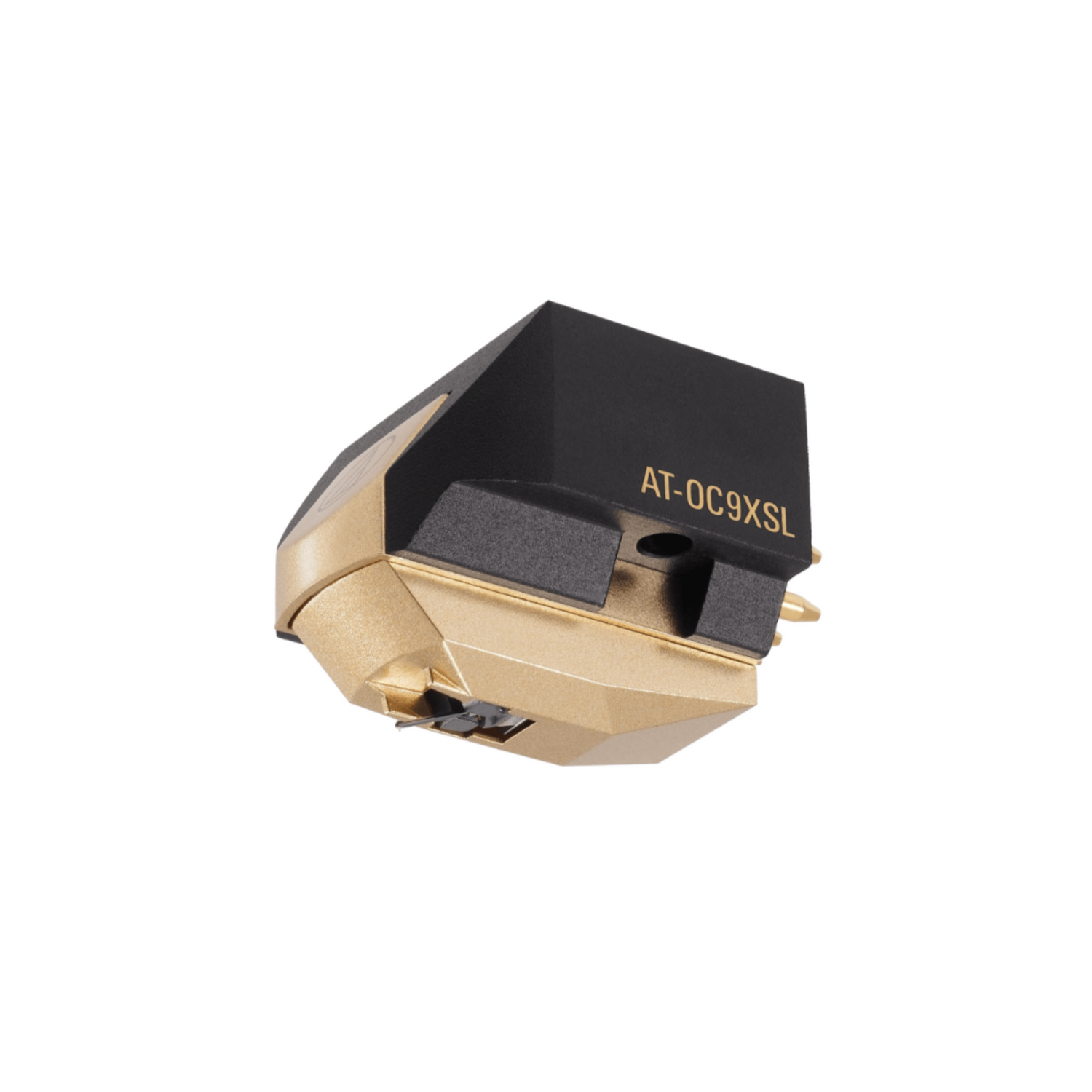

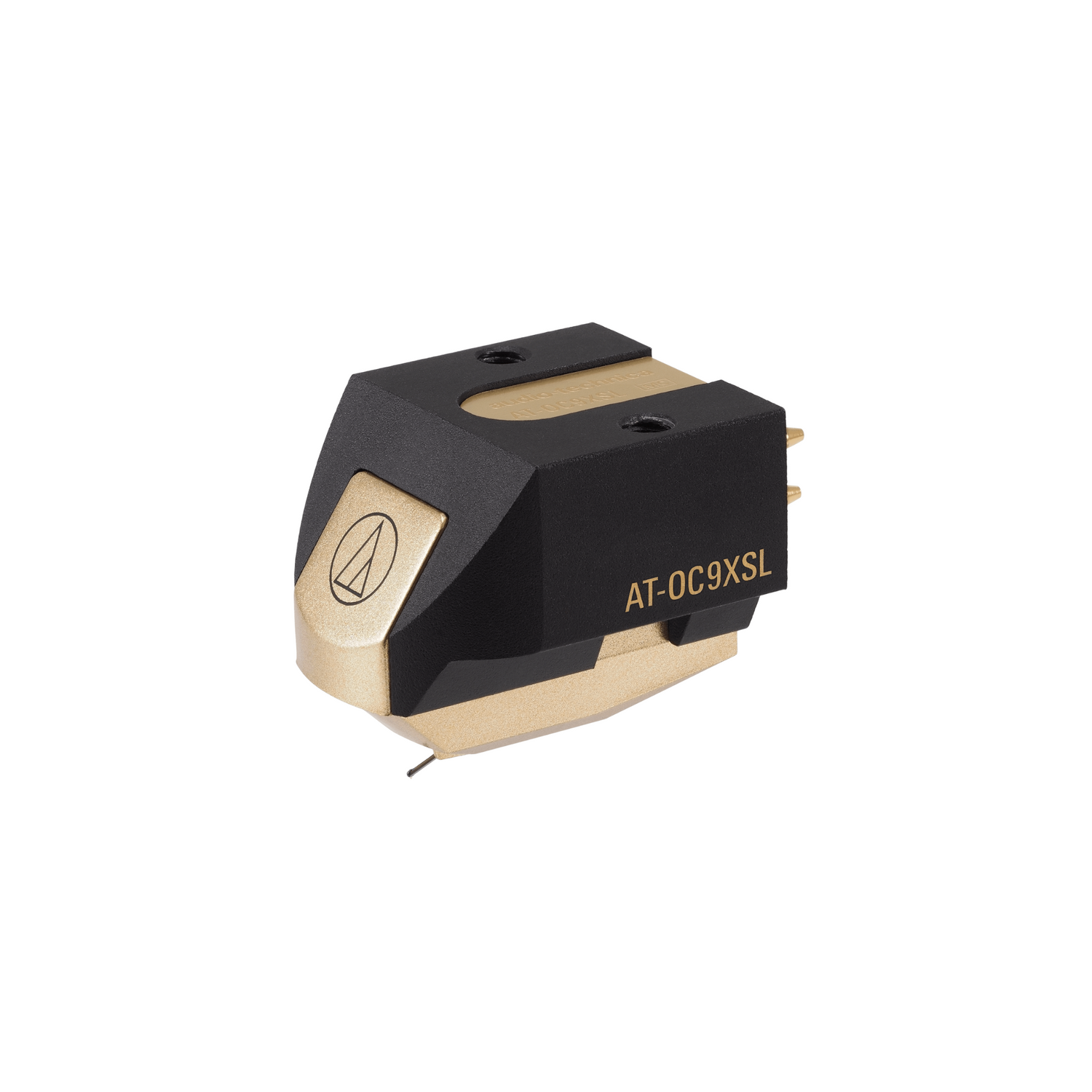

Audio Technica AT-OC9XSL Dual Moving Coil Stereo Cartridge with Special Line Contact Stylus

The Audio Technica AT-OC9XSL Dual MC Phono Cartridge boasts a special line contact stylus meticulously crafted to deliver exceptional channel separation.

PCOCC Coil

Utilising Ohno Continuous Casting Pure Copper coils ensures flawless audio transmission. These coils are arranged in a reverse V-shaped configuration, exerting lower pressure on the stylus and minimising distortion.

Audio Quality

The robust aluminium body enhances sound quality by reducing resonance. It is paired with a neodymium magnet and high-end permendur yoke, significantly boosting magnetic energy. The nude special line contact stylus, mounted on a boron cantilever, meticulously traces the record groove for rich, full-range audio and high transient response. With pre-threaded cartridge body, mounting on a headshell or integral tonearm is a breeze, requiring just two screws with no nuts necessary.

Please Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.

Specifications

Cartridge & Stylus
Frequency Response20 - 50,000 Hz
Channel Separation28 dB (1 kHz)
Vertical Tracking Angle20 degrees
Vertical Tracking Force1.8 to 2.2 g (standard 2.0 g)
Stylus ConstructionNude rectangular shank
Recommended Load ImpedanceMin 100 Ohms
Coil Impedance12 Ohms (1 kHz)
DC Resistance12 Ohms
Coil Inductance25 μH (1 kHz)
Output Voltage0.4 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance0.5 dB (1 kHz)
Stylus ShapeSpecial Line Contact
Cantilever0.28 mm Ø nude boron
Static Compliance22 x 10–6 cm / dyne
Dynamic Compliance18 x 10–6 cm / dyne (100 Hz)
Mounting1/2” centers / Threaded inserts
Cartridge Weight7.6 g
Dimensions17.3 (H) x 16.8 (W) x 25.7 (L) mm
Accessories Included1 non magnetic screw driver, 1 brush, 2 washers, 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm, 1 plastic protector
Body MaterialAluminium
ModelAT-OC9XSL
Stylus Size1.5 x 0.28 mil
Terminal PinsBrass
Wire Used for CoilPCOCC (Copper by Ohno Continuous Casting process)

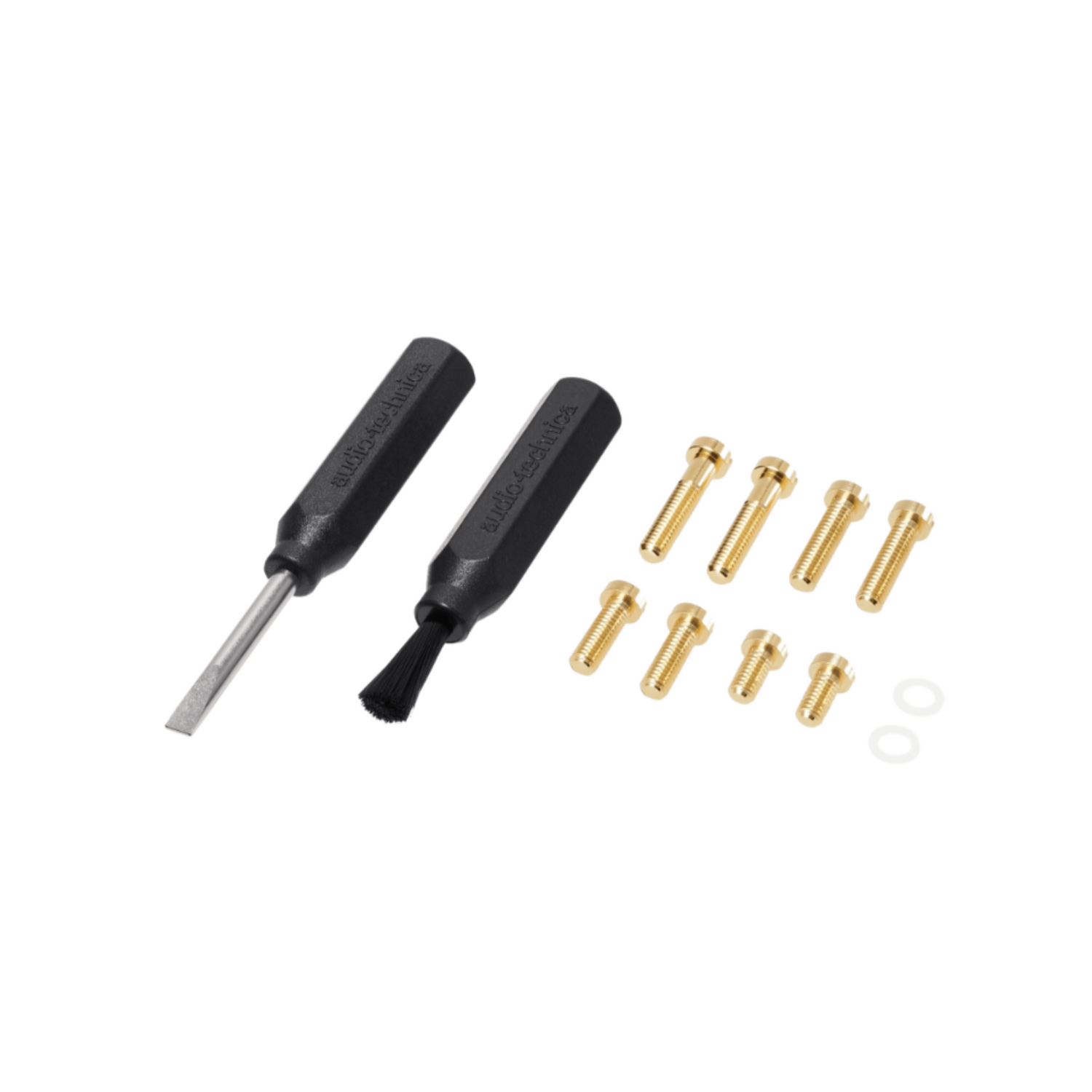

In the box

  • Audio Technica AT-OC9XSL
  • 1 non magnetic screw driver
  • 1 brush
  • 2 washers
  • 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
  • 1 plastic protector
