Audio Technica VM670SP Dual Moving Magnet Mono Cartridge

Audio Technica  |  SKU: 50376
Barcode: 4961310137618
£149.99

  • Free & Next-Day Delivery Available

    Superfast Next Day Delivery available. T&Cs

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days. T&Cs

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description

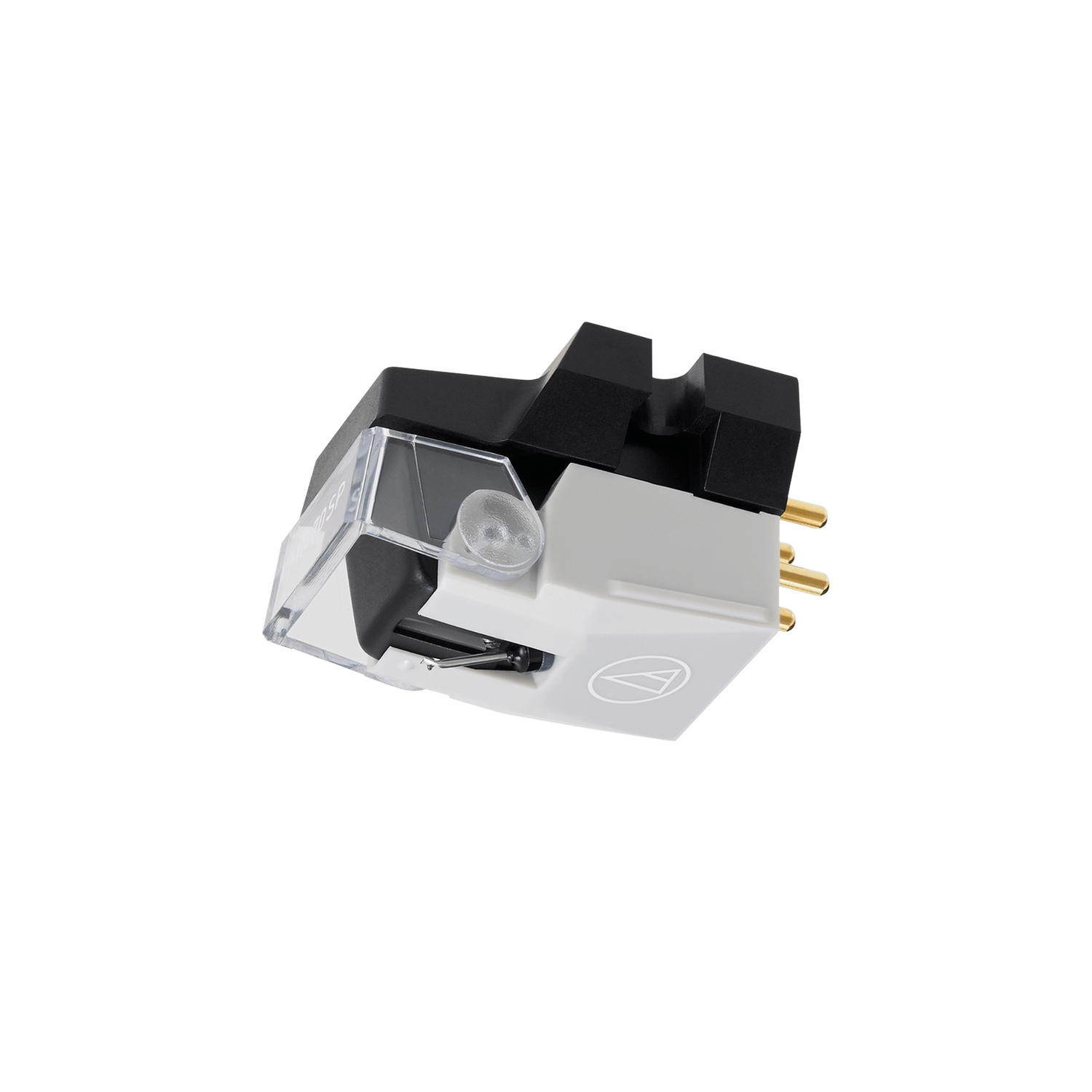

Audio Technica VM670SP Dual Moving Magnet Mono Cartridge

High-Fidelity Playback for 78 RPM Records

The Audio Technica VM670SP Dual Moving Magnet Mono Cartridge is specially designed for playing 78 RPM records, featuring a round stylus with a large curvature radius at the tip. With a curvature radius of 3 mil, this cartridge is perfectly suited for playing 78 RPM records from various eras, ensuring accurate and faithful playback.

Patented Dual Magnet Design

Utilising Audio Technica's internationally-patented Dual Magnet design, the VM670SP cartridge replicates the structure of the cutter head for outstanding performance. Unlike single-magnet designs, the dual magnets are arranged in a "V" shape, precisely matching the positions of the left and right channels in the stereo groove walls. This innovative design ensures excellent channel separation, extended frequency response, and superb tracking.

Para-Toroidal Generating System

The VM670SP cartridge features para-toroidal coils that improve generating efficiency and offer superb linearity. By reducing the leakage of magnetic flux in a continuous and unitised magnetic circuit, as well as optimising the permeability of the cores through the use of laminated cores, this system delivers exceptional audio quality with minimal distortion.

Mono Body for Enhanced Performance

Designed for monaural operation, the VM670SP cartridge features a mono body where the left and right channels are internally connected. This configuration reduces record noise, particularly in the vertical direction, and achieves a highly focused "centre" sound image compared to stereo bodies.

600 Series Specialisation

Part of the specialised 600 series, the VM670SP cartridge incorporates a mono body with internal wiring dedicated to monaural sound reproduction. This ensures optimal performance and fidelity when playing mono records.

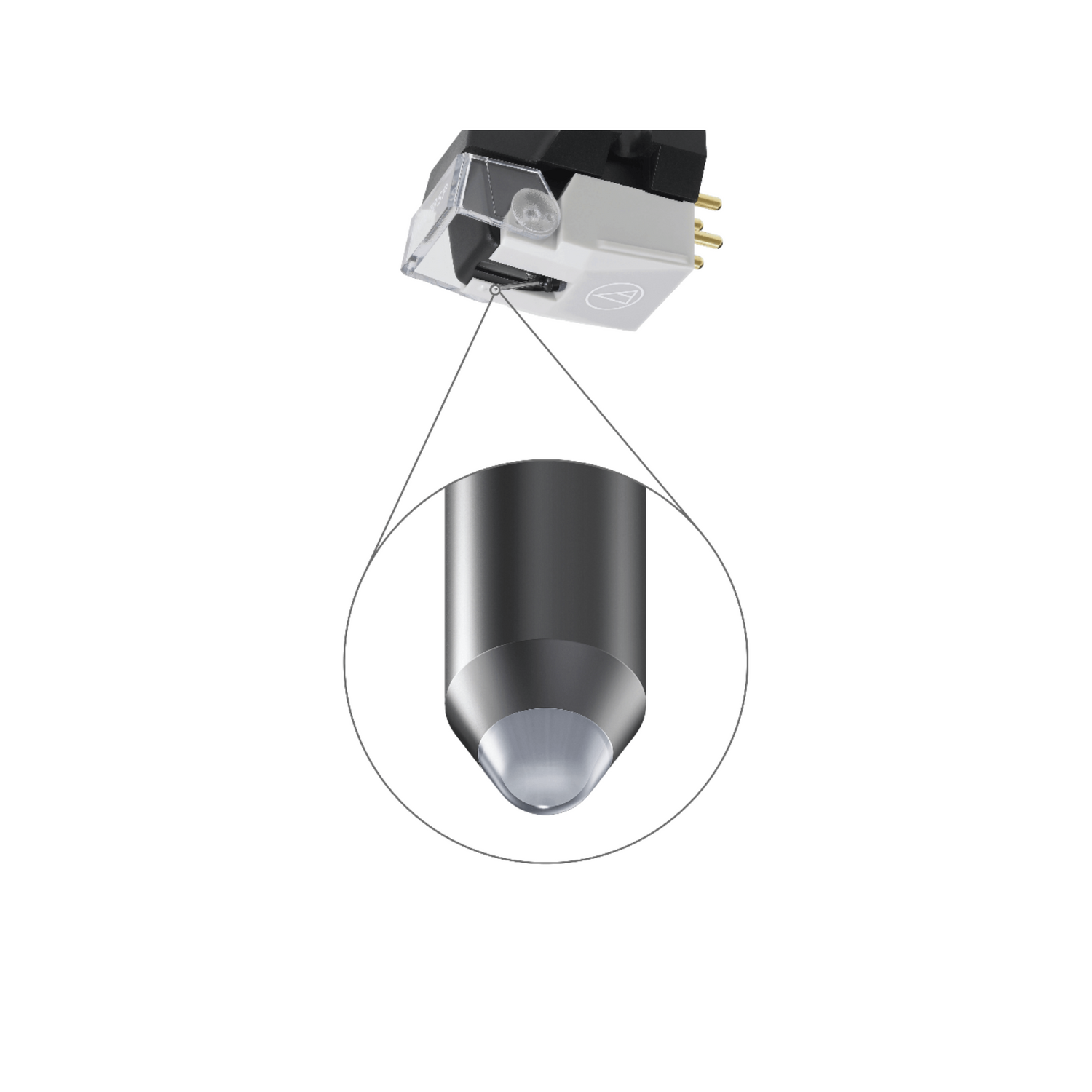

Conical Bonded (3mil) Stylus

Equipped with a conical bonded stylus with a curvature radius of 3 mil, the VM670SP cartridge offers precise tracking and playback for 78 RPM records. Its large curvature radius ensures compatibility with a wide range of record types from different eras.

Additional Information

Cartridge & Stylus
Frequency Response20 - 20,000Hz
Vertical Tracking Angle23˚
Stylus ConstructionBonded Round Shank
Recommended Load Impedance47,000Ω
Coil Impedance1,400Ω (1kHz)
Output Voltage3.0mV (1kHz, 5cm/sec.)
Stylus ShapeConical Bonded (3mil)
CantileverAluminium Pipe
Static Compliance15 x 10-6 cm/dyne
Dynamic Compliance2.0 x 10-6 cm/dyne (100Hz)
Mounting1/2” centres
Dimensions17.3 (H) x 17.0 (W) x 28.2 (L) mm

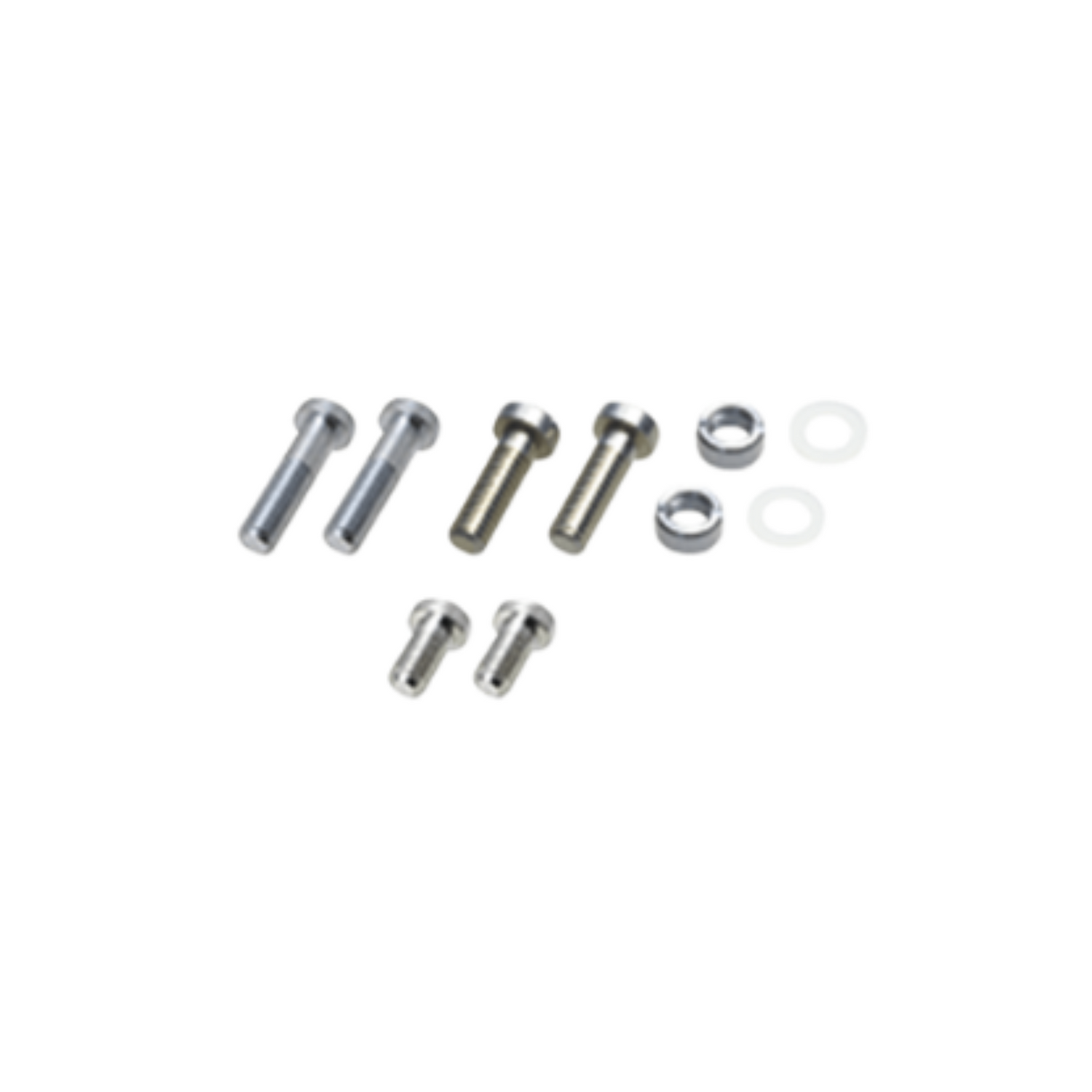

Accessories IncludedCartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
Recommended Load Capacitance100 – 200pF
Replacement StylusVMN70SP
Stylus Size3.0 mil
TypeVM Type
Weight6.4g
