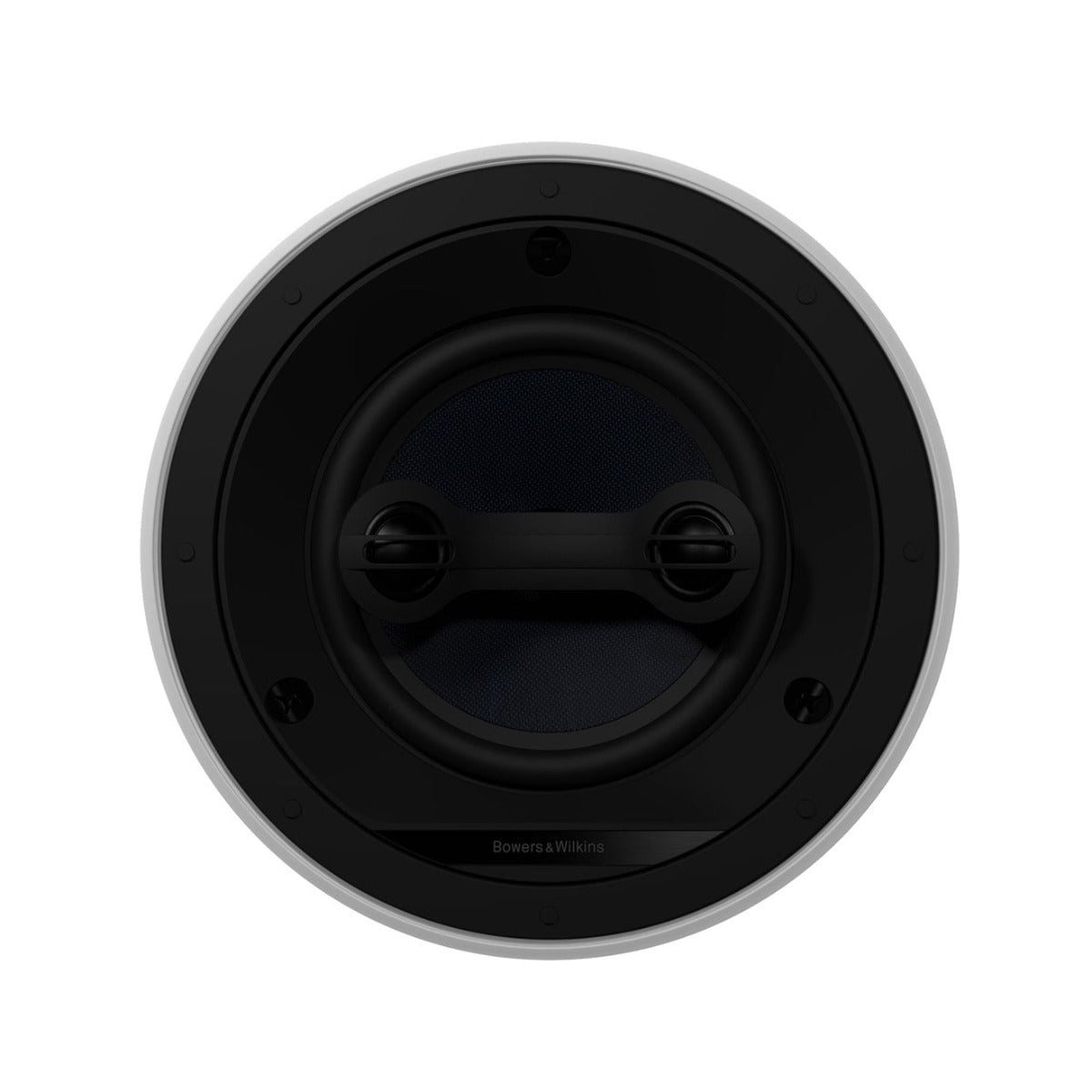

BOWERS & WILKINS CCM663SR Top Performing 2 Way Dual Channel In Ceiling System, 1 x 6" Bass / Midrange Drive Unit, Single
Pre-order
CALL FOR PRICING
special order 2-3 working days
Use this text to share information about your product and policies with your customers.
| Technical Specifications | |
| Description | 2-way in-ceiling system |
| Drive Units | 1x ø25mm (1in) soft dome tweeter |
| 1x ø150mm (6in) black glassfibre cone bass/midrange | |
| Frequency Range (-6dB) | 45Hz – 35kHz |
| Recommended Amp Power | 25 – 130w |
| Sensitivity SPL (2.83V, 1m) | 87dB |
| Impedance Nominal (min) | 8Ω (4.5Ω) |
| Frame diameter | 240mm (9.5in) |
| Cut-out diameter | 202mm (8in) |
| Depth behind surface | 133mm (5.2in) |
| Protrusion | 4mm (0.2in) |
| Pre-mount Kit | C6 |
| Back Box | 6C |
