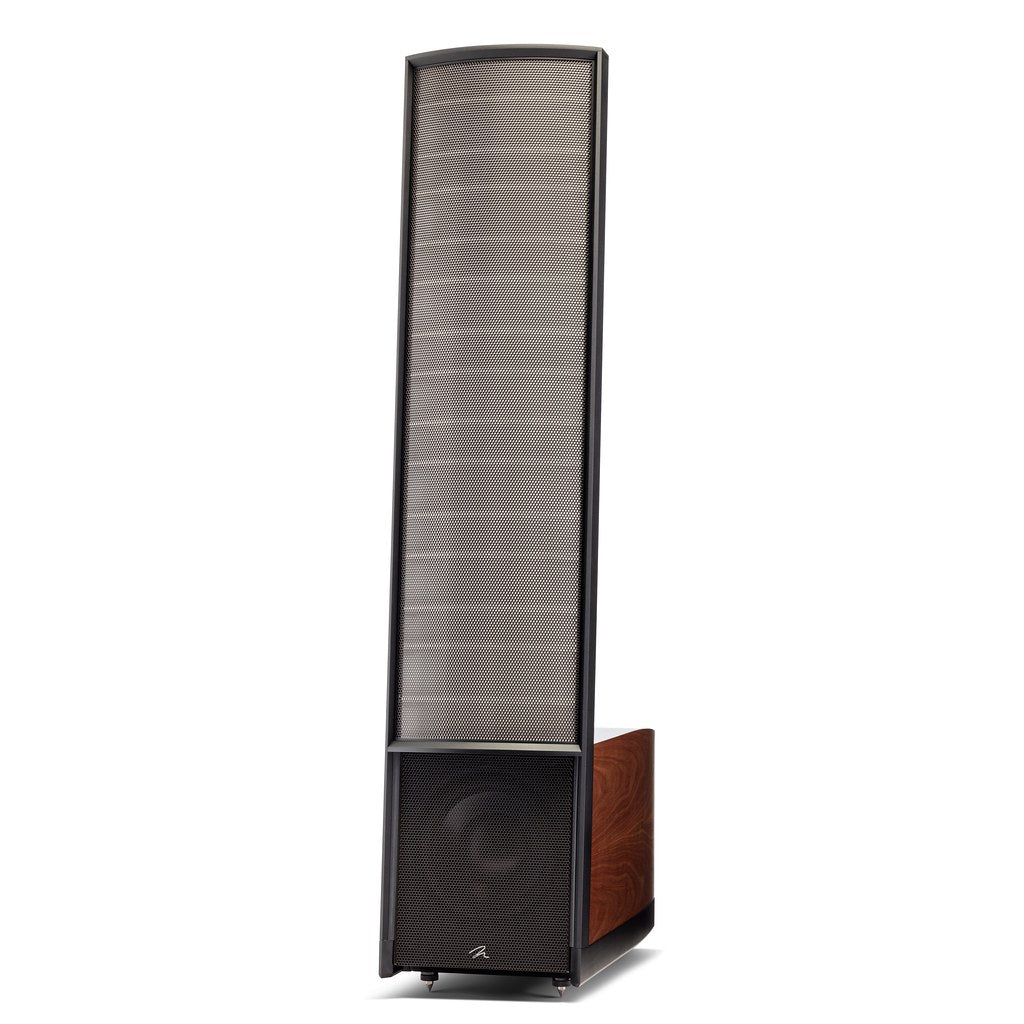

Martin Logan Expression ESL 13A Floorstanding Speakers- Walnut

SKU
Original price £19,995.00 - Original price £19,995.00
Original price
£19,995.00
£19,995.00 - £19,995.00
Current price £19,995.00
Availability:
In stock

In Store Item Only

Whilst this line is only available in store, we do have a massive range available for delivery. Speak to one of our home audio industry expert advisors now.

    .
  • In Store Item Only

    Available at our Nottingham Store

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • 1 Year Warranty

    1 Year Warranty for Peaceful Ownership

The Expression ESL 13A is part of the Masterpiece Series. It features a dual 10-inch woofer system with ARC-honed performance, for perfectly blended low-frequency response. The groundbreaking integration of this woofer array with MartinLogan’s signature 13-inch wide XStat CLS Transducer, coupled with a powerful dual amplifier section, delivers an expressive and dynamic audio experience, with less coloration. It reveals the pure emotional impact of your audio.

Look at the familiar elements of the classic MartinLogan electrostatic loudspeaker: Advanced MicroPerf stator technology, which allows for almost twice the exposed electrostatic diaphragm surface as a traditional electrostatic panel of the same size. The panel is reinforced with rigid ClearSpar™ spacers, keeping an exact level of tension on the vacuum-bonded diaphragm without obscuring the beautiful see-through design. Add the slender, pointed-arrow design of the new AirFrame™ Blade construction; a powerfully evocative composition creating a harmonious connection between the panel and its woofer cabinet.

Now notice some radical refinements: Inspired by our own breakthrough design, we have reinvented the Expression ESL 13A woofer section, powered by new dual 300-watt Class-D amplifiers, and controlled by a 24-Bit Vojtko™ DSP Engine and ARC™ (Anthem Room Correction).

Using two 10-inch laser-engineered low-distortion aluminum cone woofers in independently enclosed compact chambers, exclusive PoweredForce Forward™ bass alignment technology controls the interaction between the rear-firing woofer and the wall behind that woofer. With smart phase-shifting logic, we minimize the effect that wall has on bass information that might bounce back into the listening room. This uniform frequency response results in realistic bass effects you can feel. It’s one more way MartinLogan innovation improves your listening experience in any room.

Frequency Response

24–23,000 Hz ±3dB

Recommended Amplifier Power

20—600 watts per channel

Horizontal Dispersion

30°

Vertical Dispersion

44" (112cm) line source

Sensitivity

91 dB/2.83 volts/meter

Impedance

4 Ohms, 0.7 at 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency

300Hz

High Frequency Transducer

XStat™ CLS™ electrostatic transducer » Panel Dimensions: 44" x 13" (112 x 33cm) » Radiating Area: 572 in² (3,696 cm² )

Low Frequency Transducer

Two 10” (25.4 cm) cast basket, high excursion, rigid aluminium cone and extended throw drive assembly, non-resonance asymmetrical chamber format.

Amplifier

Woofer: 2 x 300 watts/channel (4 ohms), 2 x 600 watts peak

Room Correction (Bass Section)

Anthem Room Correction (ARC™) ready (Sold Separately)

Components

Custom-wound audio transformer, air core coils, polypropylene capacitors. 24-bit DSP based preamplifier (used with woofer amplifier).

Audio Controls

Bass: ±10 dB under 75 Hz Mid-Bass: –2 dB, 0 db, +2 db Light: On, Dim, Off ARC™ Room EQ: On, Off

Signal Inputs

WBT-0703Cu nextgen™ 5-way binding posts feature a filigree signal conductor made from gold plated, nickel free, non- ferromagnetic, pure copper for high conductivity and fully insulated. Free from eddy current effects.

Inputs

AC Power, RJ45 (for ARC), mini USB (for ARC)

Power Draw

Idle: < 1W/channel Max: 500W/channel

Lighting

LED intensity control: on, dim, off

Weight

103 lbs. (46.8 kg)

Dimensions

61.5" x 13.4" x 27.5 " (156.1cm x 33.9cm x 69.9cm)
