McIntosh MB20 Bluetooth Transceiver " X DISPLAY "

McIntosh  |  SKU: 80233
Barcode:
ÂŁ469.00 ÂŁ695.00

This item is only available in store

  • Free & Next-Day Delivery Available

    Superfast Next Day Delivery available. T&Cs

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days. T&Cs

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description


PLEASE CALL 01159758613

McIntosh MB20 Bluetooth Transceiver – a compact yet powerful solution designed to seamlessly integrate Bluetooth streaming capabilities into any McIntosh or non-McIntosh home audio system, regardless of its era. Elevate your audio experience by effortlessly connecting your system to digital music stored on your devices, cloud accounts, or preferred streaming services.

Preserve Your Vintage McIntosh System: The MB20 offers a simple yet effective way to bring modern streaming capabilities to beloved vintage McIntosh systems. Whether you've cherished your McIntosh system for decades or inherited a family heirloom, the MB20 allows you to enjoy digital music while preserving the timeless appeal of your classic audio setup.

"Transform a vintage McIntosh system into a modern home music system capable of playing digital music from your phone or preferred streaming services."

Class 1 Bluetooth Connectivity: Engineered as a Class 1 Bluetooth device, the MB20 provides a superior connection to audio equipment lacking Bluetooth capability. With a range of up to 150 feet (45.7 meters) in ideal conditions, the MB20 ensures reliable performance. Its sensitive receiver enhances reception even from Class 2 devices, with an external antenna maximizing range.

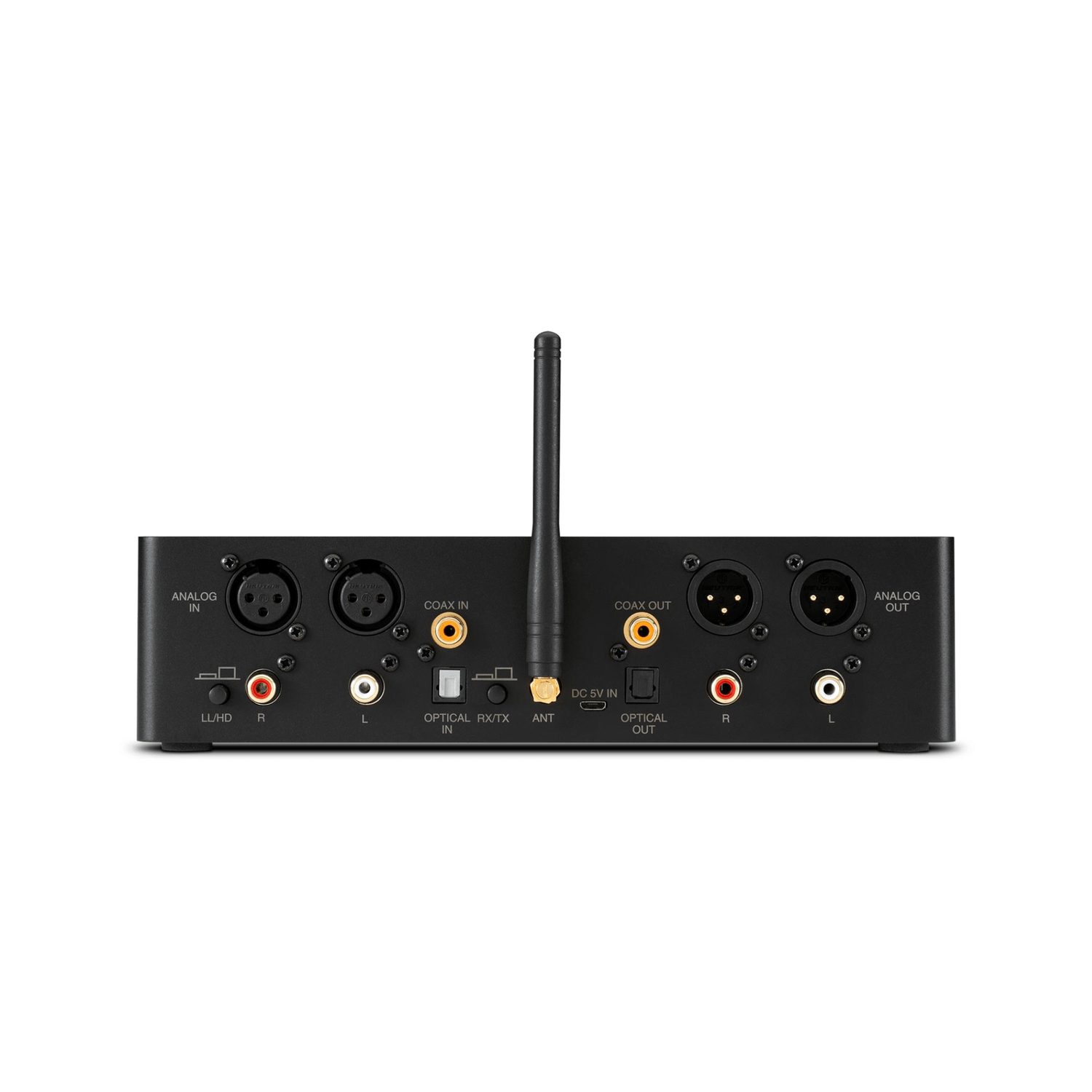

Versatile Analog and Digital Connectivity: Equipped with a range of analog and digital inputs and outputs, the MB20 facilitates seamless integration with your home audio system. Offering balanced inputs and outputs – a rare feature among Bluetooth transceiver receivers – it ensures top-quality audio performance. Connect via stereo balanced/unbalanced inputs and outputs, as well as coaxial and optical digital inputs and outputs.

"The MB20 can quickly turn a vintage McIntosh system that you've treasured for decades into a modern home music system."

Bluetooth 5.0 and High-Resolution Audio: Utilizing Bluetooth 5.0, the MB20 supports high-bitrate Advanced Audio Coding (AAC) and Qualcomm aptX HD for hi-res audio playback. Qualcomm aptX Low Latency enhances audio transmission speed for synchronized sound with visual media. The MB20 employs a high-performance 32-bit DAC with 192kHz internal processing in Receiver mode, ensuring optimal sound quality.

Flexible Transceiver Functionality: As a transceiver, the MB20 functions as both a Bluetooth Receiver and Transmitter (not simultaneously). Switch between Receiver mode to stream audio to your McIntosh system or Transmitter mode to stream from your system to Bluetooth headphones or speakers. Add multiple MB20s for wireless audio transmission between different systems within your home.

"Set one MB20 to Transmitter mode and the other(s) to Receiver mode for a wireless audio bridge between multiple audio systems."

Sleek Design and Worldwide Compatibility: Encased in a black custom aluminum chassis with a glass top panel, the MB20 complements any McIntosh system's aesthetics. It also seamlessly integrates with non-McIntosh systems that feature compatible inputs and outputs. The package includes a wall mount charger with adapters for global compatibility.

Additional Information

ELECTRONIC SPECIFICATIONS
Total Harmonic Distortion< 0.005%
Frequency Response+/-0.5dB from 20Hz to 20,000Hz
Maximum Volts Out (Balanced / Unbalanced)5/2.5 V RMS
Signal To Noise Ratio> 100dB
Output ImpedanceMinimum load 500 Ohms
Dynamic RangeN/A
CONNECTIVITY
Balanced Input1
Balanced Output1
Unbalanced Input1
Unbalanced Output1
Digital Coaxial Input1
Digital Coaxial Output1
Digital Optical Input1
Digital Optical Output1
Digital USB Input0
Digital USB Audio Output0
Network ConnectionBluetooth
DVI Output0
HDMI Output0
VGA Output0
eSata Input0
DIGITAL AUDIO SPECIFICATIONS
Digital Input FormatPCM
Digital Input Sample RateUp to 24-Bit/192kHz
Digital Output Format24-Bit/96kHz
Digital Output Sample Rate96kHz
CONTROL
Power Control Input0
Power Control Output0
Rear Panel Data Input0
Rear Panel IR Sensor Input0
WEIGHTS & DIMENSIONS
Unit Dimensions (W x H x D)9-29/64" (24cm) x 2-1/2" (6.35cm) (antenna in upright position adds additional 1-3/8" (3.43cm) x 3-15/16" (10.01cm)
Unit Weight2.5 lbs (1.2kg)
Shipping Weight3.5 lbs (1.6kg)
