Pioneer TS-A3000LS4 Shallow Mount Oversized 1500W 12" Subwoofer

by Pioneer
SKU 81220
Save 10% Save 10%
Original price £149.99
Original price £149.99 - Original price £149.99
Original price £149.99
Current price £134.99
£134.99 - £134.99
Current price £134.99

  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • 1 Year Warranty

    1 Year Warranty for Peaceful Ownership

Discover the Pioneer TS-A Series of shallow component subwoofers. Designed with carefully selected materials to improve bass response, these subwoofers are the perfect match to be used alongside the TS-A Series of speakers. If you are looking for a sound upgrade combined with easy installation, then look no further than the TS-A Series.

This 30cm subwoofer is just 9.0cm deep and has an oversized cone that produces louder bass than ever. Boost your car audio with 1500 Watts of pure, superior bass without losing too much space in your car.

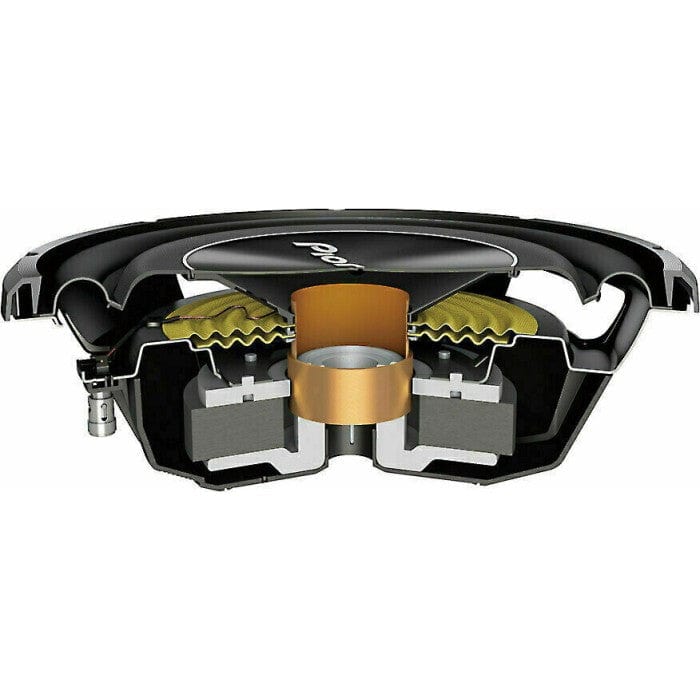

Designed for enclosed use, the TS-A3000LS4 is fitted with a single oversized cone structure with double spiders to increase power handling and generate a more accurate, louder bass. The single cone helps keep the overall moving mass down at manageable levels, which is extremely important for efficiency and sound quality reasons.

A typical sub uses a damper to control the woofer’s cone excursion. Our double spiders are more efficient as they need less power to move the cone while producing superbly detailed and low distortion bass.

CarSoundFit App
Car sound simulator application for an improved in-car sound experience

Enjoy outstanding midbass response with the Injection Molded Polypropylene Cone

Main Features

  • CarSoundFit App
  • IMPP
  • Size 30 cm
  • Type Cone
  • Maximum power 1500 W
  • Continuous power output 400 W
  • Frequency response 20 - 1.0kHz
  • Sensitivity 88 dB
  • Impedance 4 Ω
  • Mounting Depth 90 mm
  • Woofer Cut-Out Hole ⌀281 mm
  • Woofer material IMPP
  • Surround SBR
  • Voice Coil type Single Voice Coil
  • Voice Coil bobbin type Kapton
  • Terminals Push
  • Magnets FERRITE
  • Cut-out Hole 281 mm
  • 30cm / 12" Shallow
  • Recom. Enclosure [l] 22.6 litres
  • Recom. Enclosure [ft3] 0.8 ft³
  • Weight 5.6 kg
  • Dimensions ⌀ 318 (diameter) x 109 mm

Thiele/Small Parameters

  • Qts 0.54
  • Fs [Hz] 31
  • Vas [ft3] 1.6
  • Vas [l] 45.6
  • Xmax [mm] 8.8
