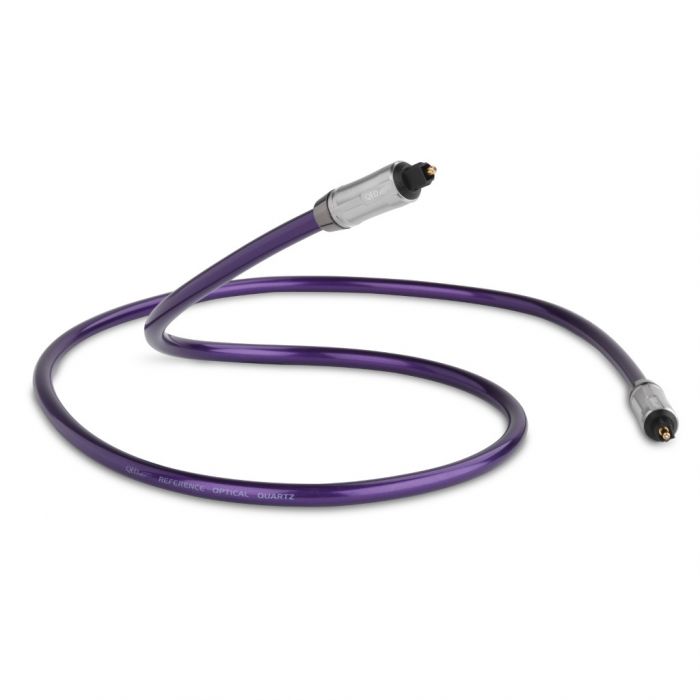

QED Reference Optical Quartz Digital Lead-3m

by QED
SKU 28167-3m
Sold out
Original price £149.95 - Original price £149.95
Original price
£149.95
£149.95 - £149.95
Current price £149.95

    .
  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • 1 Year Warranty

    1 Year Warranty for Peaceful Ownership

GLASSCORE TECHNOLOGY

QED's new Glasscore™ technology employs multiple fibre bundles of ultra-fine boro-silicate glass optical fibres (GOF) of no more than 50um each to make up the 1 mm diameter necessary to conform to the Toslink standard connectors. Because the fibres are so small the different paths taken by the light rays are similar in length virtually eliminating the timing error and introducing less distortion and jitter. This has the effect of increasing bandwidth and the accuracy of the data transmission.

STEPPED REFRACTIVE INDEX

The quartz fibres are coated with a cladding of low Refractive Index to guide the light signal.

Over 150MHz BANDWIDTH

This vastly exceeds the demands for high definition multi-channel HD digital audio. In contrast to conventional acrylic glass optical cables quartz glass cables can deliver signals up to and including 24bit/192kHz with very low jitter .

Reference Optical Quartz can provide a much higher bandwidth than a single acrylic glass fibre with 1/10th of the attenuation.

ULTRA LOW JITTER / ULTRA LOW LOSS

QED have calculated that jitter (distortions caused by timing differences between the different light paths) in conventional optical cables could typically reach up to 145ps. In Reference Optical Quartz, timing errors are virtually eliminated, introducing less distortion, jitter and ultra low loss < 0.03 dB/m.

SPECIFICATIONS

Unique boro-silicate glass construction

Highly flexible 210 x 50 micron optical fibre bundle

Bandwidth >150MHz

Ultra low jitter

Stepped refractive index

Ultra low loss < 0.03 dB/m

24 & 32 bit high resolution audio compatible.

This QED cable comes with a two year warranty
