Quad 3 Integrated Amplifier

Quad  |  SKU: 127192
ÂŁ1,249.00

  • Free & Next-Day Delivery Available

    Superfast Next Day Delivery available. T&Cs

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days. T&Cs

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description


The QUAD 3 brings a stunning blend of timeless QUAD design and cutting-edge technology, delivering an integrated amplifier solution that caters to both traditional analogue enthusiasts and modern digital audiophiles alike.

The QUAD 3 brings a stunning blend of timeless QUAD design and cutting-edge technology, delivering an integrated amplifier solution that caters to both traditional analogue enthusiasts and modern digital audiophiles alike.

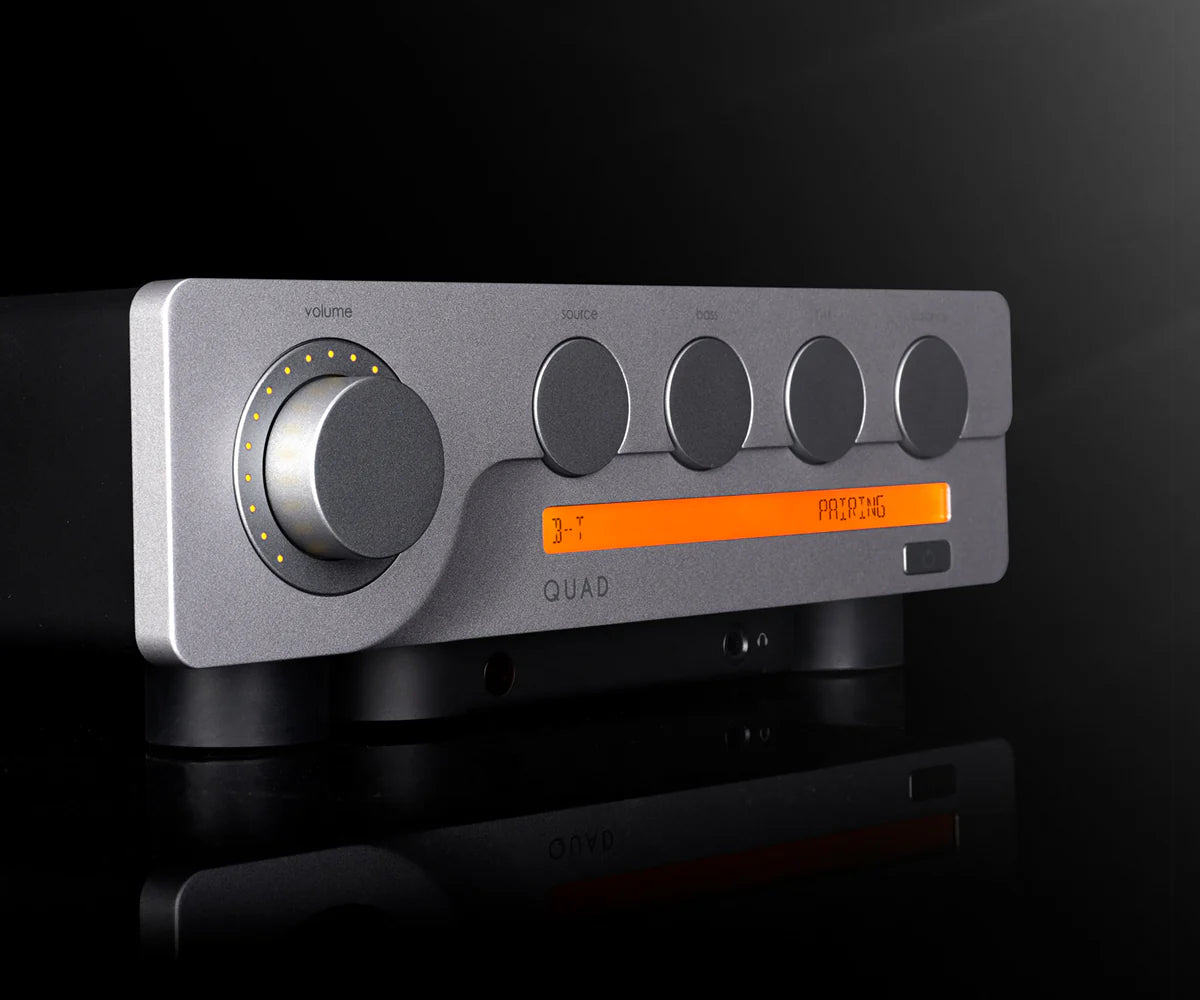

Akin to its critically acclaimed sibling, the new QUAD 33 – the QUAD 3’s industrial design is a subtle nod to the past. It features the same signature orange-lit LCD strip as the QUAD 33, for intuitive function feedback with settings, parameters, options and source selections all visually represented. Users can customise the backlight brightness—or turn it off entirely—to suit their environment or preference. Classic orange accents echo the aesthetics of the legendary QUAD 33. At the same time, the tactile row of digital encoders provides precise control over volume, source selection, balance, bass, and the renowned QUAD ‘Tilt’ control, allowing for fine-tuning of the audio spectrum without adding artificial colouration.

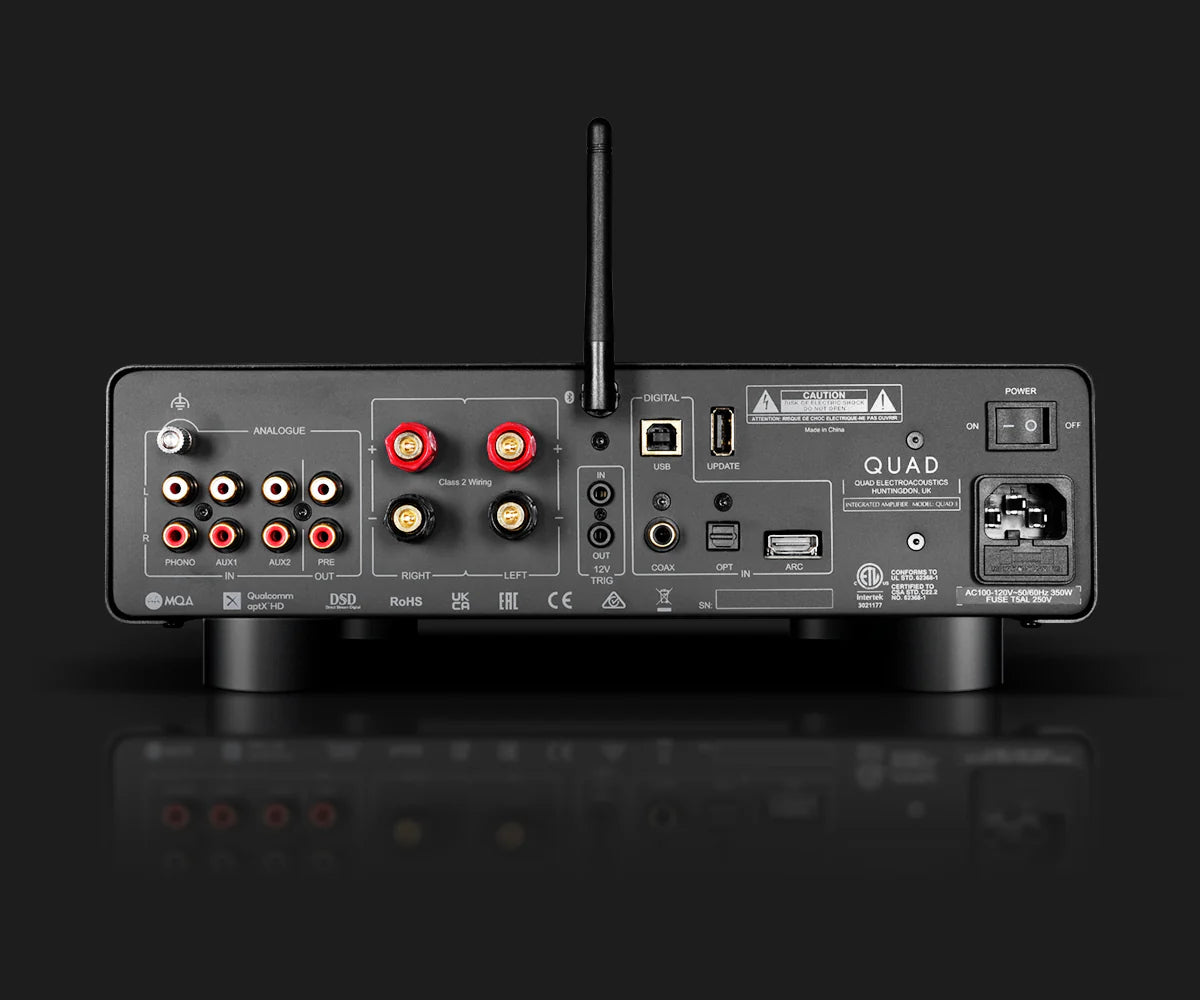

The QUAD 3 is packed with future-proof connectivity, making it a versatile hub for all the requirements of a contemporary music system.

Digital Versatility

USB Audio Input:Supports hi-res audio up to 768kHz/DSD512, ensuring flawless connection for PC & Mac.

Coaxial and Optical S/PDIF Inputs:Handle hi-res audio up to 192kHz, ideal for CD players, streamers, and digital sources.

HDMI ARC Input:Brings TV sound directly to your audio system with the convenience of using your TV’s remote to control volume and power.

Wireless Freedom

Bluetooth 5.1:Enables seamless streaming from smart devices. With support for the aptX HD codec, enjoy 24-bit hi-res audio over Bluetooth without compromise.

Phono Perfection

Vinyl enthusiasts will delight in the high-definition MM phono stage, offering low-noise performance and precise RIAA equalisation. This built-in preamp provides superior sound quality compared to standard phono stages in this price range.

Analogue Purity

Two line-level RCA inputs ensure seamless integration with analogue sources.

For those who prefer to stream high-resolution audio directly from their computer, the QUAD 3 features a dedicated USB-B input that supports hi-res playback up to 768kHz PCM and DSD512 formats. This makes it an ideal solution for audiophiles who rely on their PC or laptop as a primary source for digital music. With plug-and-play functionality, the QUAD 3 effortlessly transforms your computer into a high-end digital audio source, delivering pristine sound quality and unlocking the full potential of high-resolution music files. Whether you’re using streaming platforms, local files, or advanced playback software, the QUAD 3 ensures every detail is captured and reproduced with breathtaking clarity.

Advanced Digital Architecture for Exceptional Sound

At the heart of the QUAD 3’s digital brain lies a state-of-the-art ESS9038Q2M DAC chipset, expertly implemented to deliver precise and detailed sound. Paired with a Class A post-DAC filter circuit, this configuration extracts the maximum sonic potential from digital sources.

Upsampling

Upsampling can be applied to the audio from both SPDIF and USB audio sources. The digital audio is upsampled to either 352.8kHz or 384kHz.

MQA Master Quality Unlocked:

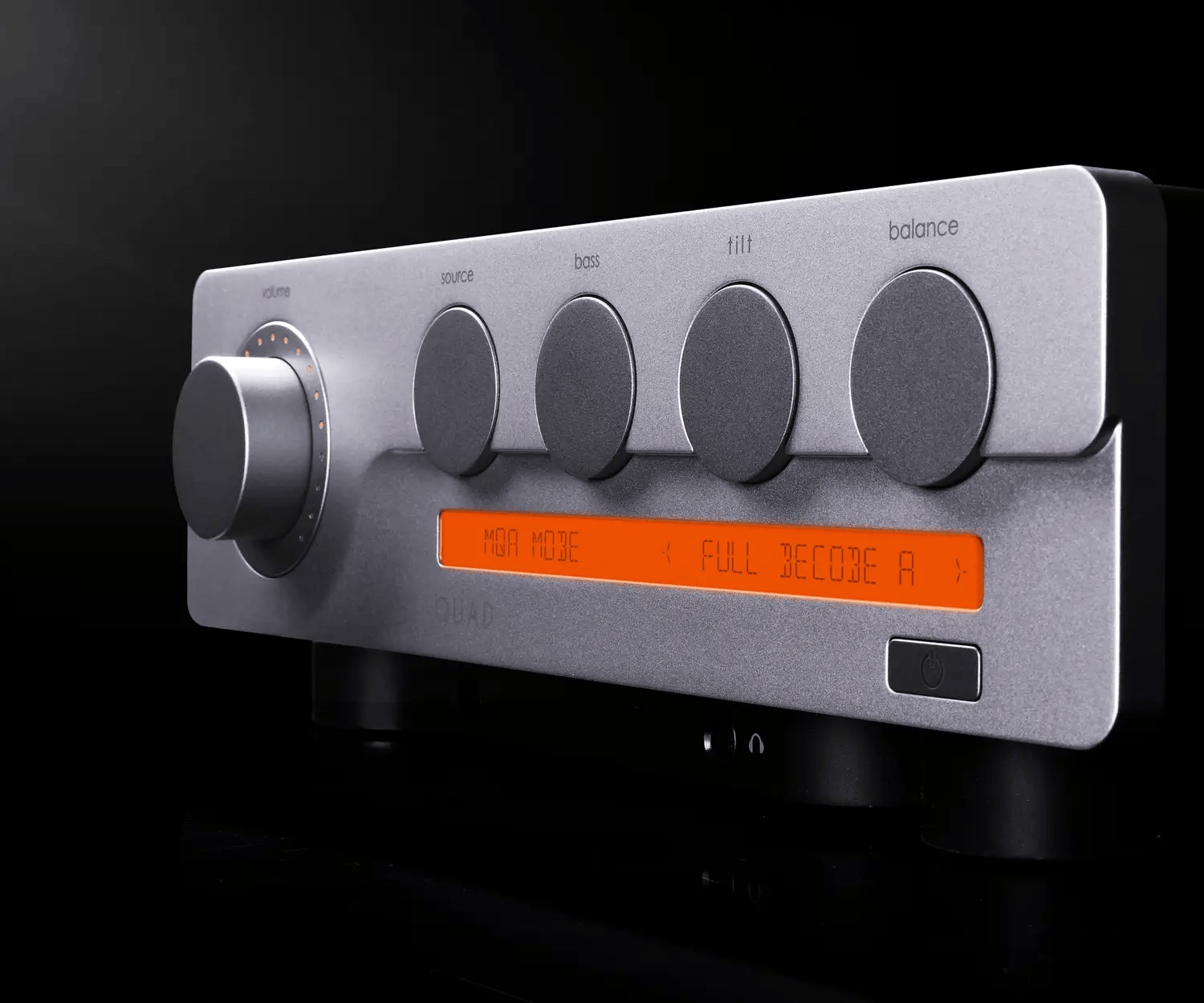

The QUAD 3 functions as a full MQA decoder, faithfully recreating the original studio sound with file-specific compensation.
For further flexibility, five user-selectable digital filters give the option to fine-tune the sound to suit different sources, ensuring optimal playback regardless of the format or streaming service.

Additional Information

Specifications

ModelQUAD 3General description:2 x 65W (8 ohm), 2 x 100W (4 ohm)Class AB power amp sectionES9038Q2M 32-bit DACDesign philosophy and core technologyMQA Full Decoder (PC USB, Coax/Optical)Bluetooth 5.1 (aptX/aptX HD) StreamingDedicated High Performance Low Noise MM Phono stageDedicated Current-Feedback Headphone AmplifierBuilt-in Bass and Tilt adjustmentUSB Firmware Upgrade2 x Analogue (Aux), 1 x Phono (MM) inputsInputs1 x SPDIF (Coax), 1 x SPDIF (Optical), 1 x PC USB1 x HDMI ARC, 1 x Bluetooth (aptX/aptX HD), 1 x 12V TriggerOutputs1 x Pre Amplifier,1 x Stereo Speaker,1 x Headphone, 1 x 12V TriggerSampling FrequencyOptical/Coaxial: 44.1kHz -> 192kHzPC USB: 44.1kHz -> 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512Preamplifier Section:Gain (max.)+0dB (Line)+47dB (Phono MM)Input Sensitivity800mVrms (Line, Volume = 0dB)3.6mV (Phono MM, Volume = 0dB)Input Impedance10K (Line)47K / 100pF (Phono MM)Total Harmonic Distortion (THD)<0.001% (1kHz @ 2V, Volume = 0dB)Frequency response20Hz-20kHz (+/-0.1dB)Output voltage2.3V max. (Volume = 0dB)Output impedance120 ohmSignal-to-Noise ratio> 110dB ( A-weighted)> 78dB (Phono MM, A-weighted)DACD to A ConverterES9038Q2MTotal Harmonic Distortion (THD)< 0.001% (1kHz @ 0dBFS)Output level (0dBFS, 1kHz)2.05VrmMax. Sampling FrequencyOptical/Coaxial: 192kHzPC USB: PCM768kHz, DSD512Signal-to-noise ratio (S/N)> 116dB (A-weighted)Power Amplifier SectionGain+29dBRated Power Output2 x 65W (8 ohm, THD<1%)2 x100W (4 ohm, THD<1%)Frequency Response20Hz-20kHz (+/-0.3dB)Total Harmonic Distortion (THD)<0.003% (1kHz @ 30W/8ohm)Input Sensitivity800mVrmsSignal-to-Noise ratio (S/N)> 110dB (A-weighted)Max. Output Current10A
