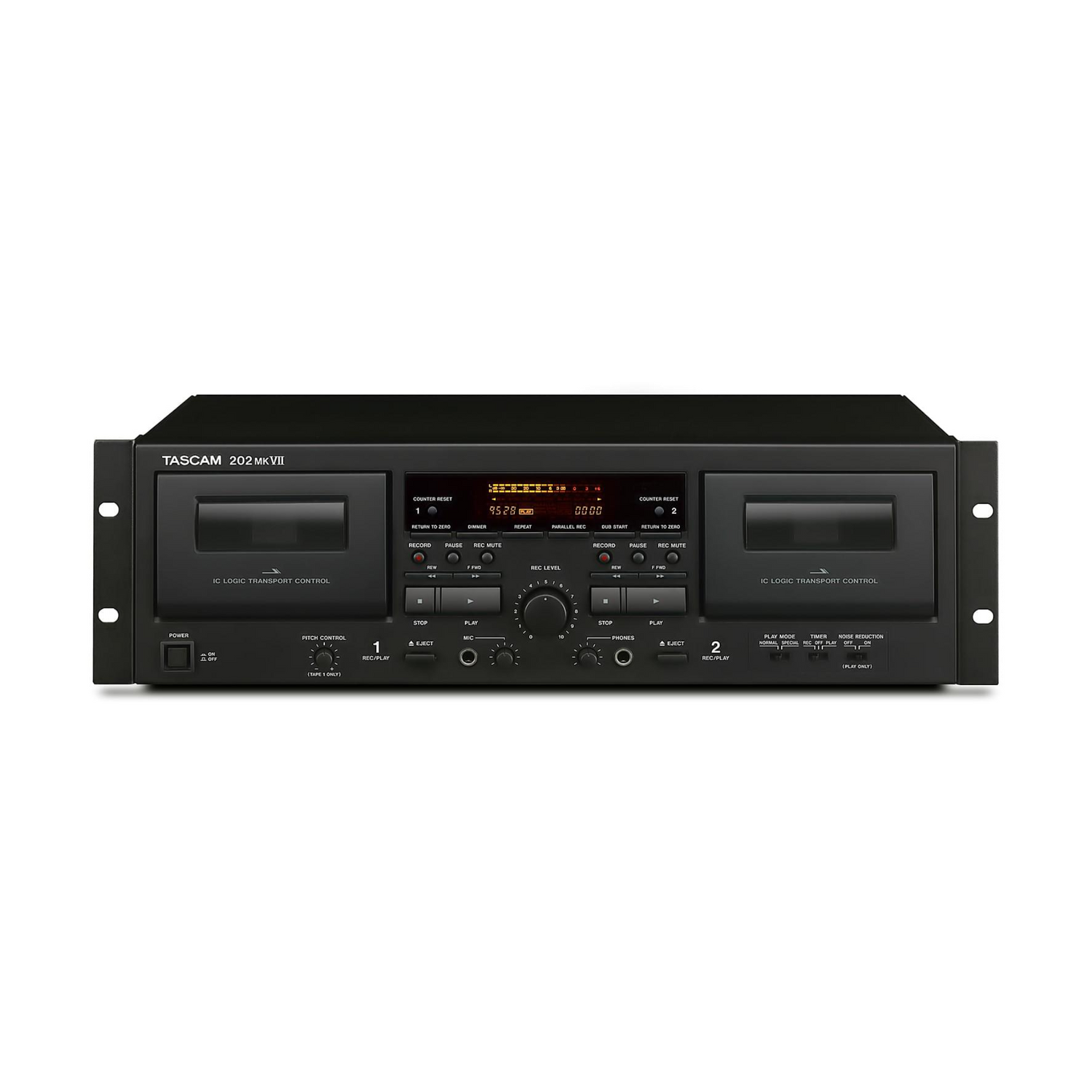

Tascam 202MKVII Twin Cassette Deck with USB Output

The Tascam 202MKVII is a versatile and reliable dual-well cassette deck designed for professional use across various settings, including karaoke bars, sports centres, town halls, civic and community centres, schools, libraries, and even authorities like police departments or civil defence for audio storage or backup purposes.

Dual-Well Cassette Deck

Featuring two decks capable of recording, the 202MKVII allows simultaneous creation of two masters from the same source. It offers a wide frequency range, ensuring excellent sonic performance for various applications.

Convenient Features

The deck is equipped with a range of convenient features, including an RTZ function, repeat playback, and the ability to adjust pitch and tempo during playback for karaoke or sports applications. A microphone input on the front panel facilitates spontaneous recording, while a pre-listening function aids in preparing the next song on one deck while the other is playing.

Playback Modes

The 202MKVII offers both "Special" and "Normal" playback modes. In "Special" mode, you can listen to one tape with headphones while the other tape plays back via the line outputs, facilitating cueing to the next track without interrupting playback. In "Normal" mode, both decks' playback signals are output from the line outputs and headphones output simultaneously.

Switchable Noise Reduction

A switchable noise reduction function is available to reduce hiss during cassette playback, particularly effective when used with cassettes recorded with Dolby B noise reduction. Note that the noise reduction function is only applicable during playback.

Microphone Input and Mixing Function

The front panel features a microphone input with level control for announcements or karaoke. With the mixing function, you can mix the microphone signal with cassette playback or an input signal and record it to either deck. Additionally, you can adjust the playback pitch and tempo of Deck 1 by ±12%, ideal for karaoke or sports applications.

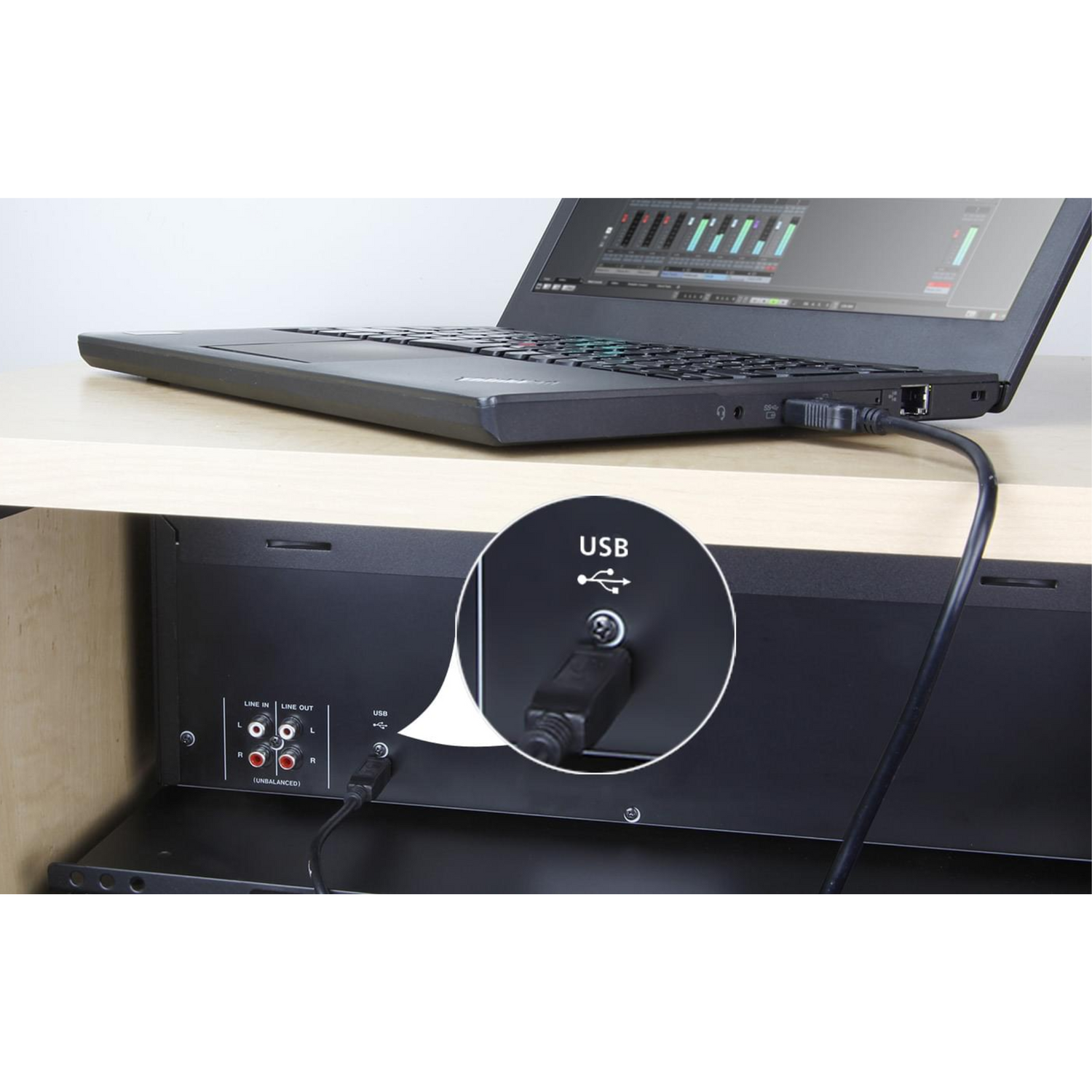

USB Output for Digital Archives

Unlike many other cassette decks, the 202MKVII is equipped with a USB output, allowing you to create digital archives of tape material using recording software on a Windows or Mac computer. Audio can be captured at sampling rates from 8 kHz to 48 kHz and 8/16-bit resolution.

Parallel Recording and Dubbing

You can simultaneously record audio from an externally connected device to both cassettes in Deck 1 and Deck 2, facilitating the creation of master tapes and distribution or backup copies simultaneously. The deck also offers a dubbing function for easy duplication of existing cassettes.

  • Dual Cassette Decks: Incorporates two cassette decks within a single unit, offering both recording and playback functionality.
  • Parallel Recording: Allows for simultaneous recording on both cassette decks, providing efficient recording capabilities.
  • One-Way IC Logic Transport Control: Utilises one-way IC logic transport control, ensuring excellent stability and durability during operation.
  • Tape Compatibility: Supports Normal, Chrome, and Metal tapes (Type I, Type II, Type IV), offering versatility in tape selection.
  • Normal-Speed Dubbing: Features normal-speed dubbing capability, enabling efficient duplication of cassette tapes.
  • Noise Reduction Function: Equipped with a noise reduction function for playback only, enhancing audio quality by reducing unwanted noise.
  • Pitch Control: Provides pitch control (±12%) for Deck 1 only, allowing users to adjust playback speed as desired.
  • RTZ Function: Includes an RTZ function (Return To Zero), facilitating easy resetting of playback positions to the beginning.
  • Repeat Playback: Supports repeat playback of A–B section, with the option to stop after 20 repetitions.
  • Microphone Input: Offers a microphone input with separate level control, suitable for karaoke sessions and announcements.
  • Mix Recordings: Allows for the creation of mix recordings using a microphone and a line-level source or cassette playback.

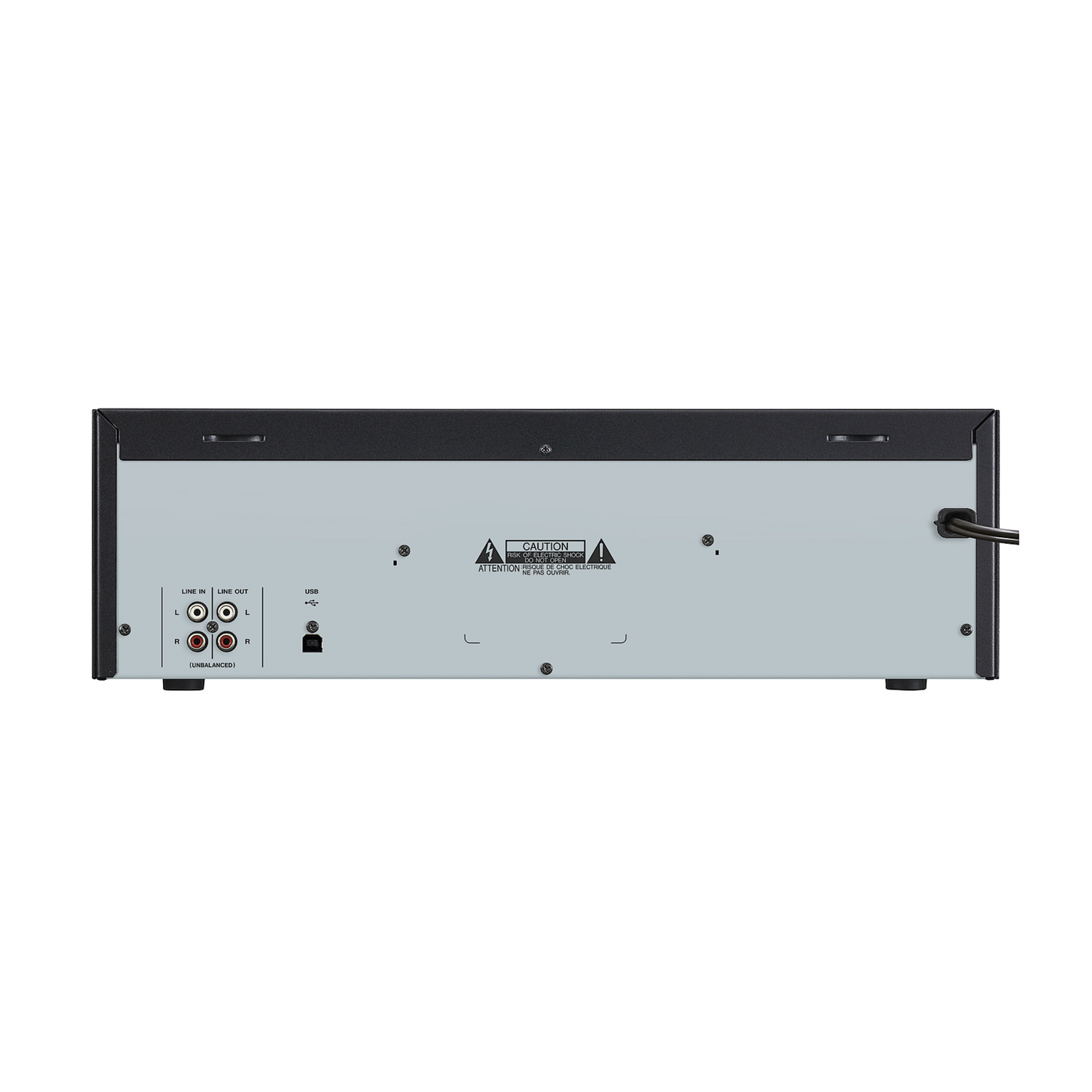

  • Analogue Audio Inputs and Outputs: Features unbalanced RCA analogue audio inputs and outputs, providing connectivity options for external devices.
  • Digital USB Output: Includes a digital USB output for backups and archiving on a computer, although audio recording software is required for recording sound on a computer.
  • Power-On Playback/Recording: Supports power-on playback/recording through a timer function, requiring an external timer switch for operation.
  • Headphones Output: Provides a headphones output with level control, enabling private listening with adjustable volume levels.

Cassette drives

  • Track system: 4-track, 2-channel stereo
  • Heads construction (each deck):
  • Tape speed: 4.8 cm/s
  • Pitch control: ±12 %
  • Fast winding time: approximately 120 s (C-60 tape)
  • Motor (capstan): DC servo motor
  • Wow and flutter: 0.25 % (WRMS)

Audio performance

  • Frequency response (overall):
  • Signal-to-noise ratio (overall): 59 dB (max. input level, A-weighted)

Audio inputs and outputs

  • Line input (unbalanced): RCA pin jacks
  • Microphone input: 6.3-mm mono phone jack
  • Line outputs (unbalanced): RCA pin jacks
  • Headphones output: 6.3-mm stereo phone jack
  • Digital output: USB 2.0 (full speed) output

Power supply and other specifications

  • Power requirements:
  • Power consumption: 14 W
  • Overall dimensions (W × H × D): 482 mm × 139 mm × 286 mm
  • Weight: 5.4 kg
  • Permissible operating temperature: 5–35 °C

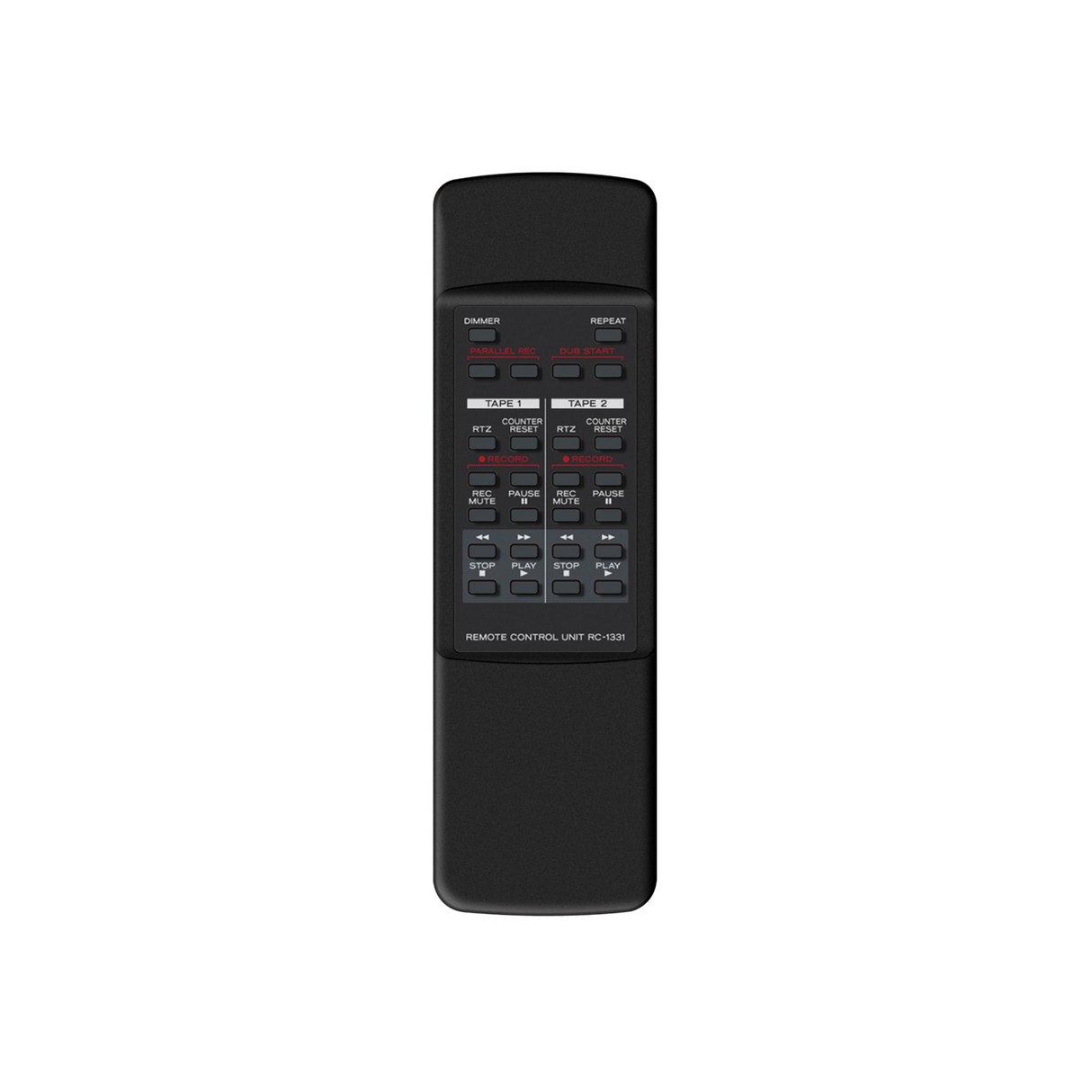

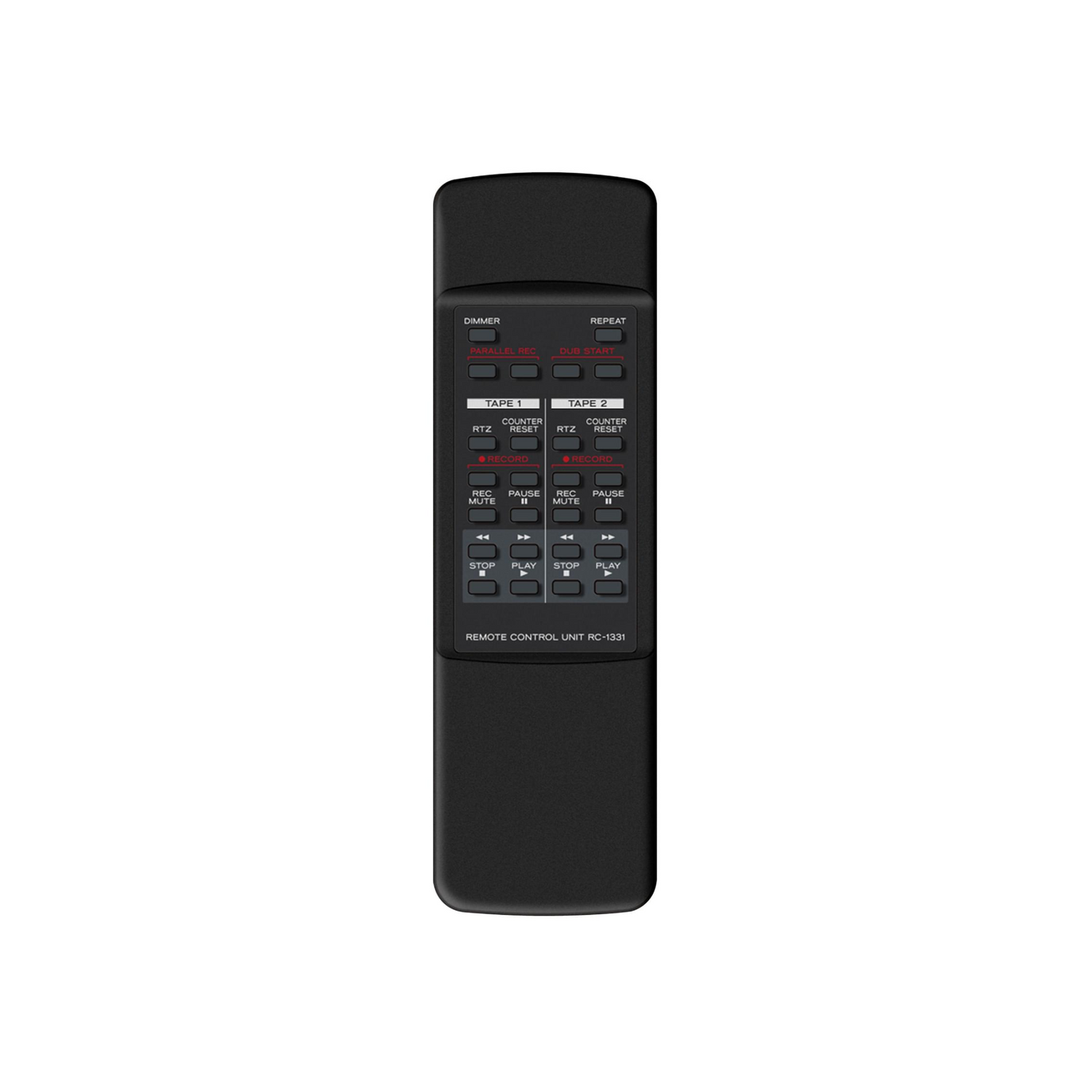

  • Wireless remote control (RC-1331)
  • x2 AAA batteries
  • Rack-mounting screw kit
  • Owner’s manual (with warranty information)
