Technics SBG90M2 High-End Floorstanding Speakers (Pair)

Description

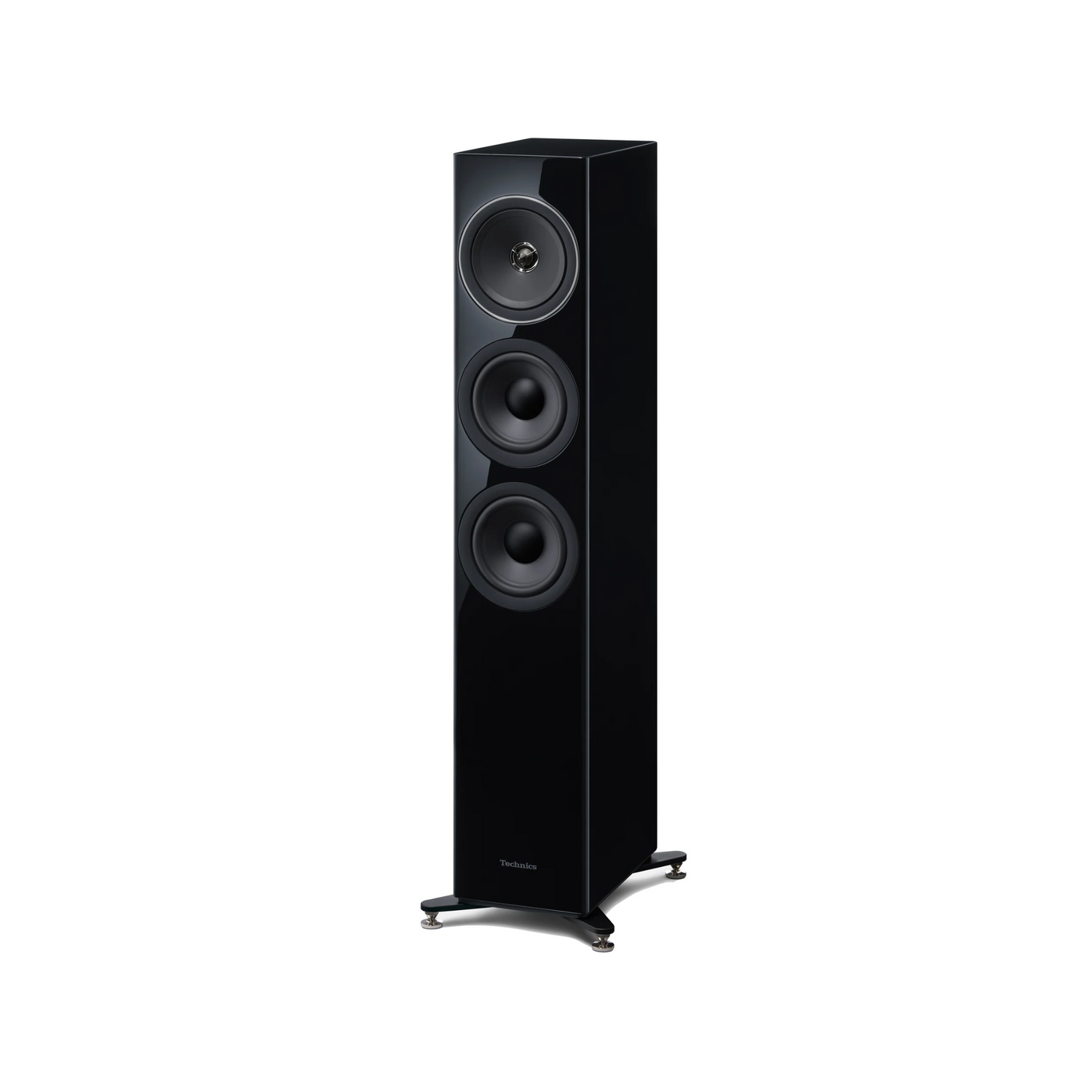

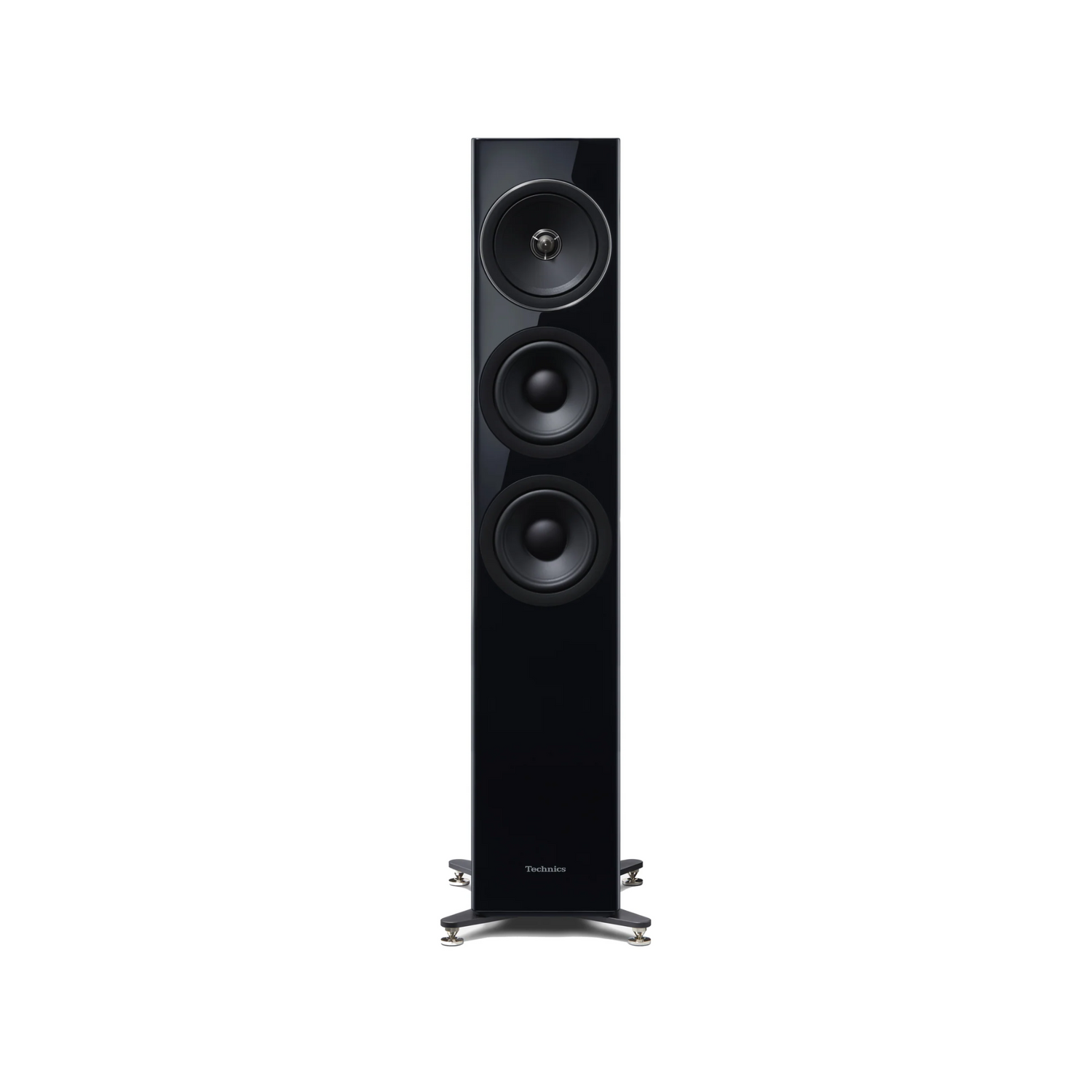

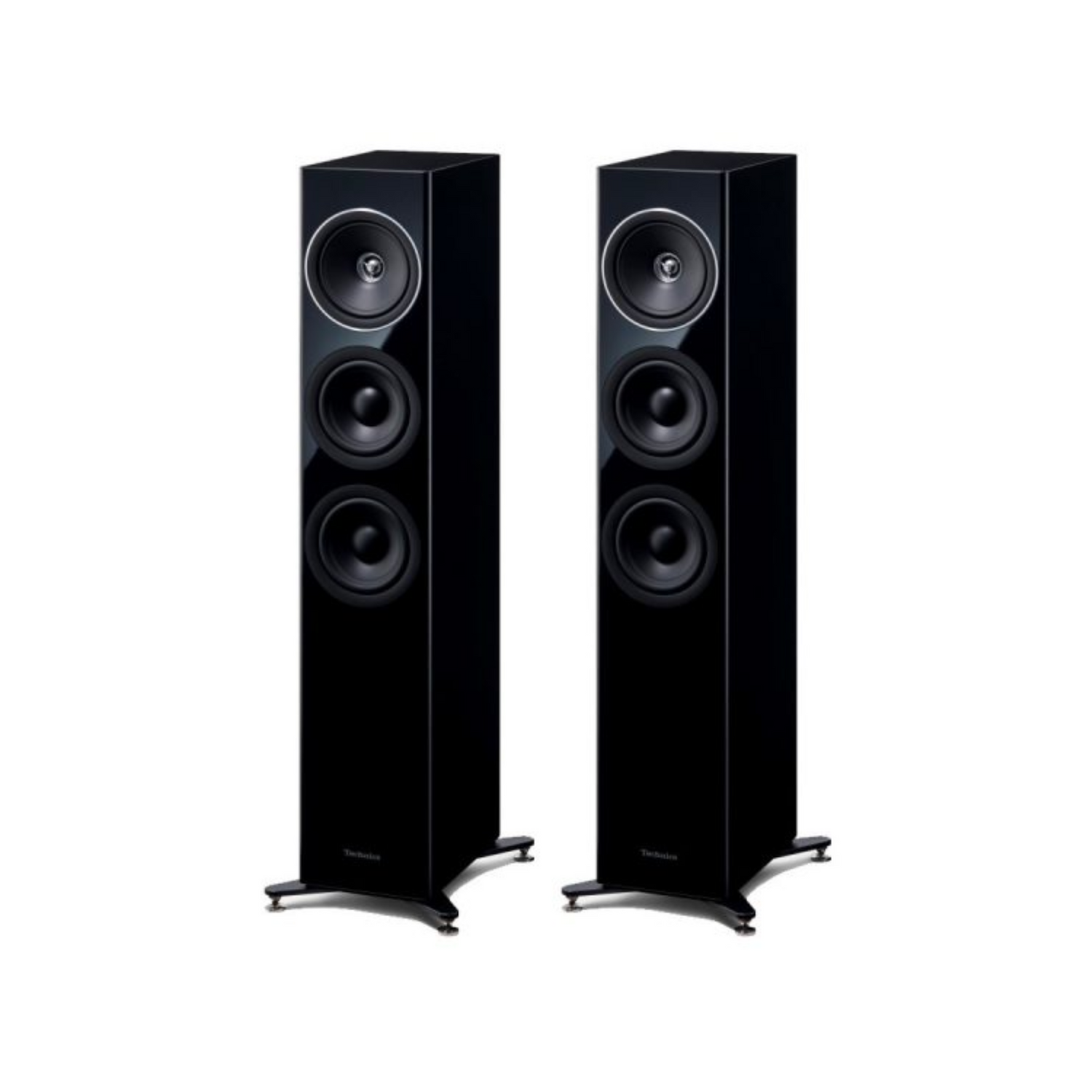

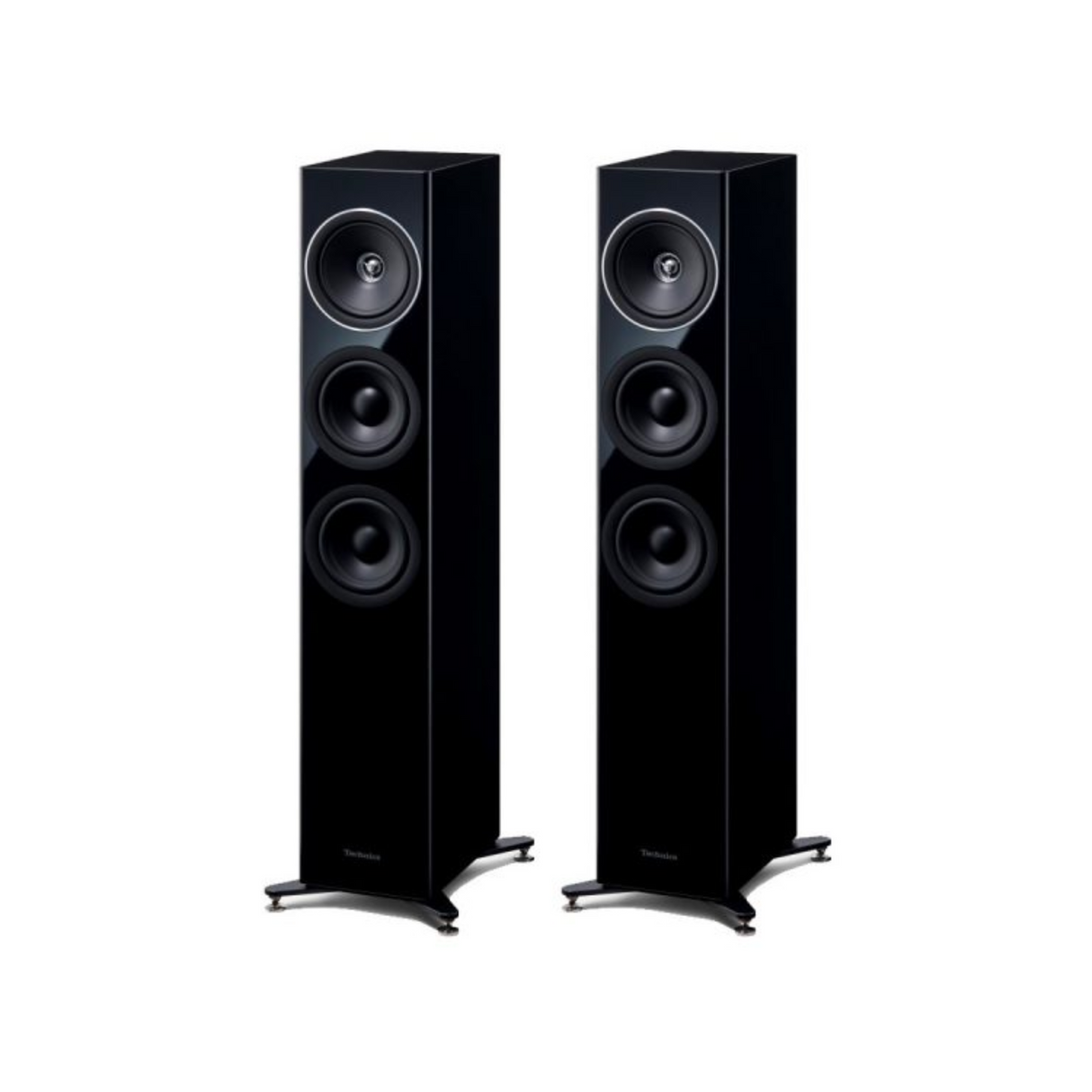

Technics SBG90M2 High-End Floorstanding Speakers

Crafted to perfection, these speakers redefine sound quality and spatial expression, delivering an audio experience that is second to none.

Point Sound Source Speaker System: The SBG90M2 achieves an ideal point sound source, ensuring that sound waves are perfectly aligned at any listening position. Thanks to the innovative two-way coaxial cone units, including mid-range and tweeter, you'll experience high-speed reproduction with enhanced sensitivity, all while preserving a linear phase concept.

Phase Precision Driver: The lightweight, high-rigidity anodized aluminium dome diaphragm in the tweeter is a technological marvel. It reproduces a wide frequency range up to 100 kHz, delivering exceptional phase characteristics with the help of a phase plug. High-linearity-drive underhung voice coils and magnetic fluid injection guarantee superior power linearity, resulting in high-frequency reproduction that's both detailed and beautiful.

Audiophile-Grade Mid-Range: The mid-range boasts an anodized, lightweight, high-rigidity aluminium cone diaphragm. Large magnets, copper caps, and high-linearity-drive underhung voice coils in the magnetic circuit minimize distortion and maximize drive power. The die-cast frame with resonance-dispersing arms eliminates unnecessary resonant sound, enabling mid-range reproduction with precision and response.

BDMA (Balanced Driver Mounting Architecture): Distortion and vibration are minimized through the innovative Balanced Driver Mounting Architecture. By mounting the speaker unit to a sub-baffle at its centre of gravity inside the cabinet, vibration is suppressed, resulting in sound waves with minimal distortion. Unwanted vibration sound from the baffle is also reduced, leading to impressive sound imaging, realism, and clarity.

Robust Low-Frequency Reproduction: The 16cm low-distortion long-stroke woofer utilizes double magnets, high-linearity-drive voice coils, copper rings, and aluminium short rings. This design achieves wide dynamic range, low distortion, and excellent response even during large excursions, all while maintaining uniformity in tone with mid-range and high frequencies.

Precision Network Circuit: A high-precision network circuit optimizes the performance of each speaker unit, delivering a well-balanced sound. Premium components such as polypropylene film capacitors, air-core choke coils, and OFC wire connections were carefully chosen. The network is isolated from speaker vibrations, ensuring an atmospheric audio experience.

High-Rigidity Cabinet: The cabinet's strength is enhanced by a cross construction with sub-baffles and horizontal reinforcing panels. Separate sub-baffles minimize vibration interference between speaker units. Careful selection and placement of absorbent acoustic materials reduce internal standing waves and cabinet reflections. Multiple polyurethane (PU) coatings on the cabinet surface dampen vibrations, resulting in a vast sound field with exceptional sound imaging.
